Description

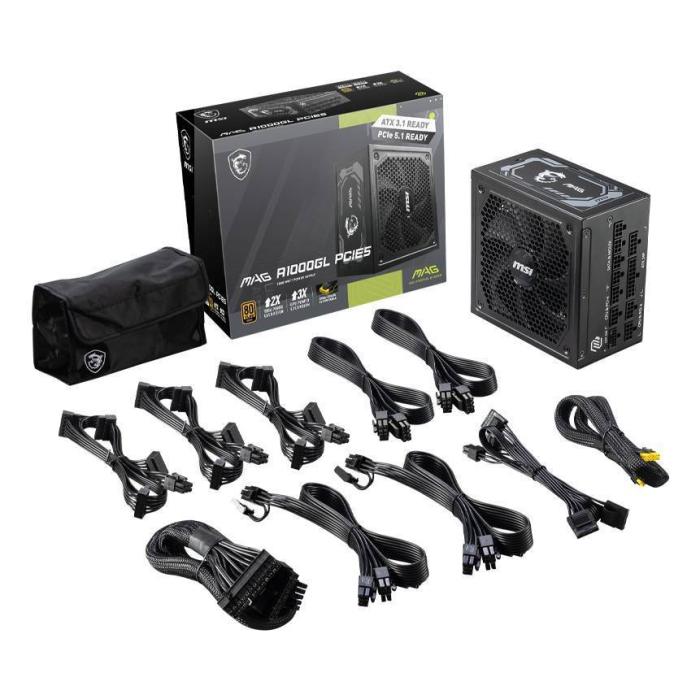

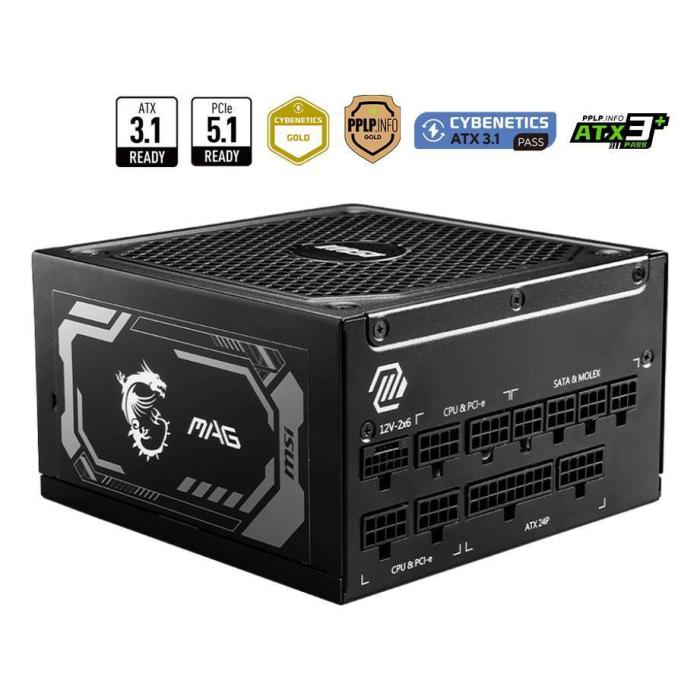

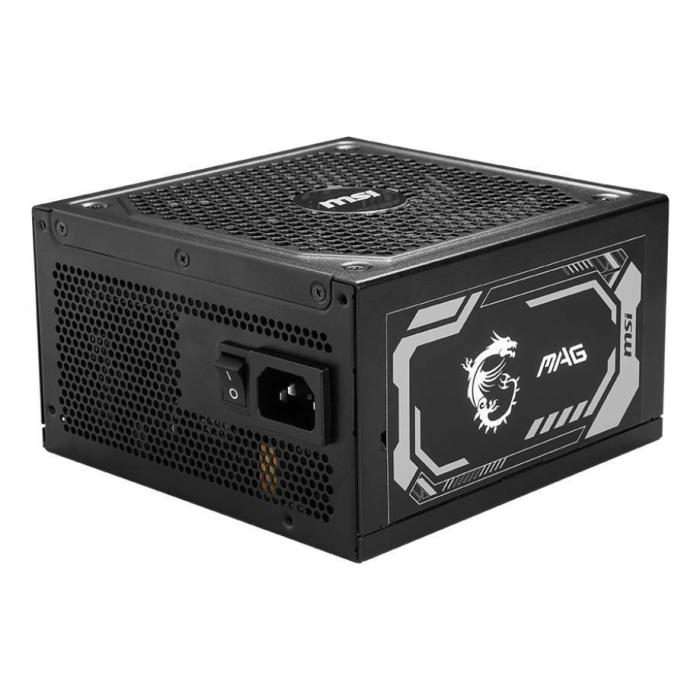

MSI MAG A1000GL PCIE5 power supply unit, 1000 W, ATX form factor, black, with a 24-pin main connector for the motherboard. Provides 90% efficiency and active power factor correction, with a single 12 V rail capable of delivering 83.3 A and a combined power of 999.6 W on that line. Includes protections against overcurrent, overvoltage, overvoltage, overheating, short circuit and undervoltage, as well as supporting AC input voltage of 100-240 V at 50/60 Hz. Its +5V and +3.3V outputs offer 22 A each, and the +5Vsb output reaches 3 A, completing a balanced set for high-consumption systems.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power Factor Correction (PFC) type: Active
- Number of +12V rail(s): 1
- Combined power (+3.3V): 120 W
- Combined power (+12V): 999.6 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

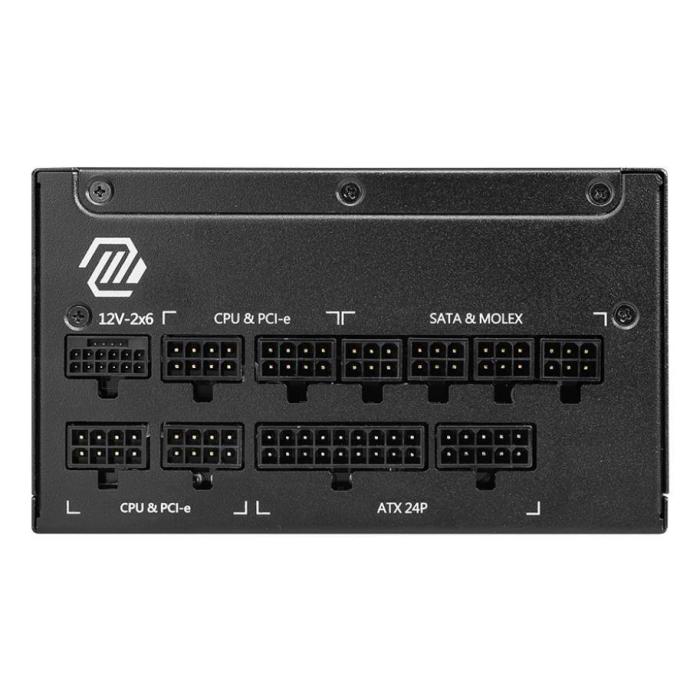

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 12
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 1
- Peripheral (Molex) power cable length: 450, 500 mm
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (16-pin): 1
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: FDB
Design
- Product colour: Black

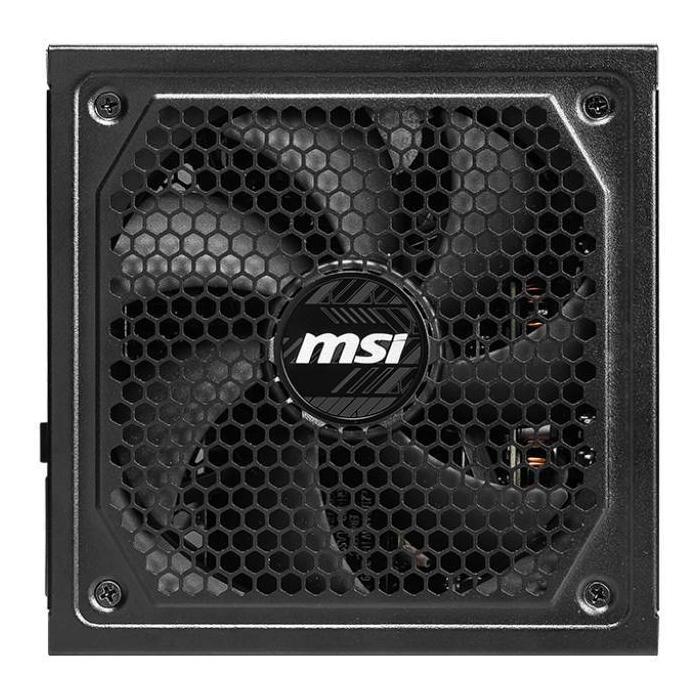

- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 500 - 1800 RPM
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 169 g
Technical details
- Sustainability compliance: Yes
Other features
- Fan's mean time to failure (MTTF): 150000 h
