Description
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 130 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Overheating, Over current, Over power, Over voltage, Short circuit, Under power

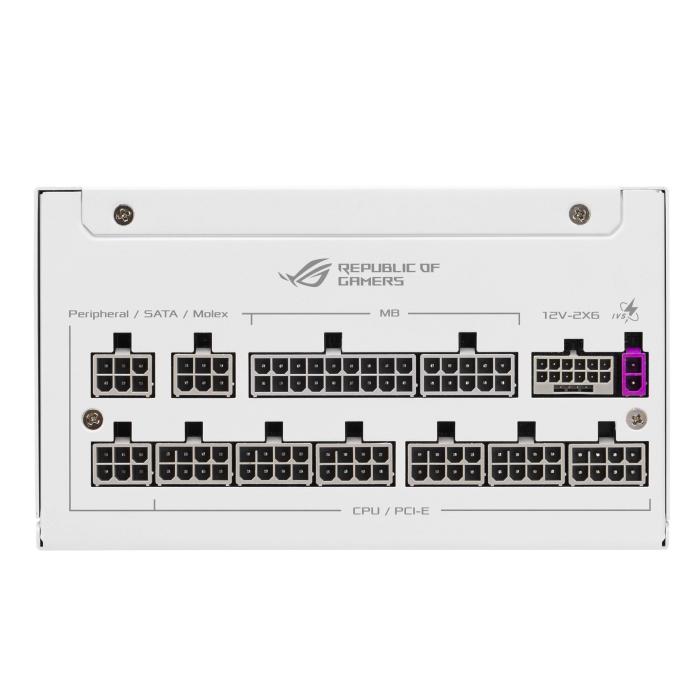

Ports & interfaces
- Cabling type: Fully-Modular
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 6
- SATA power cable length: 400, 120 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 400, 150 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (16-pin): 1
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 100 cm
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Mean time between failures (MTBF): 120000 h
Design
- Product colour: White
- Cooling type: Semi-passive

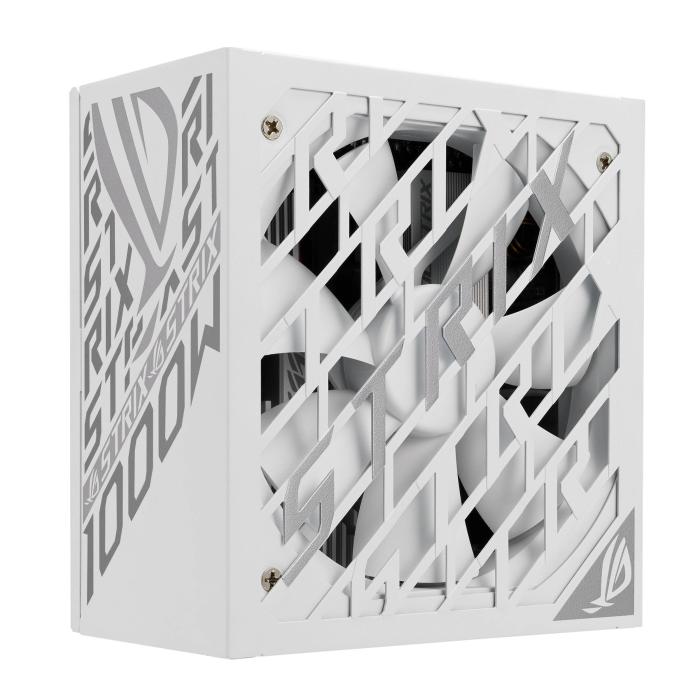

- Number of fans: 1 fan(s)
- Fan location: Top
Packaging content
- Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.81 kg
Packaging data
- Package type: Box
- Package width: 320 mm
- Package depth: 200 mm
- Package height: 108 mm
- Package weight: 2.91 kg
