Description

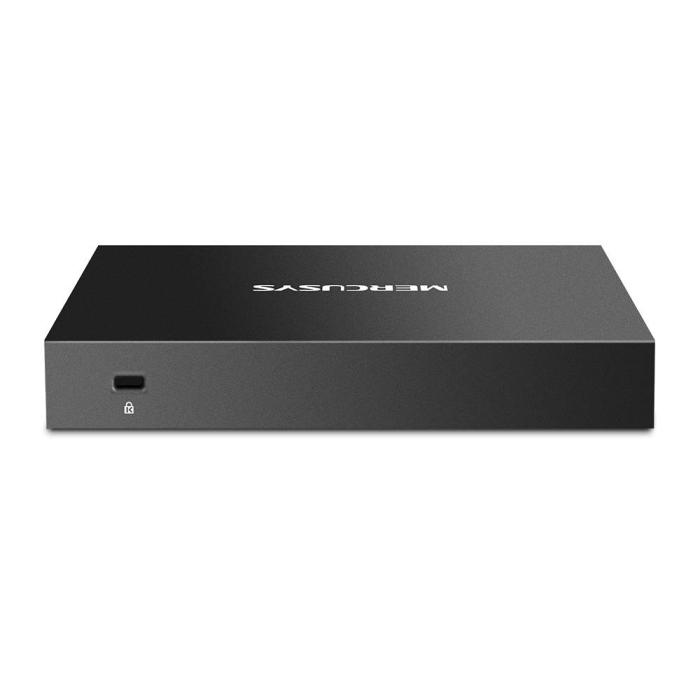

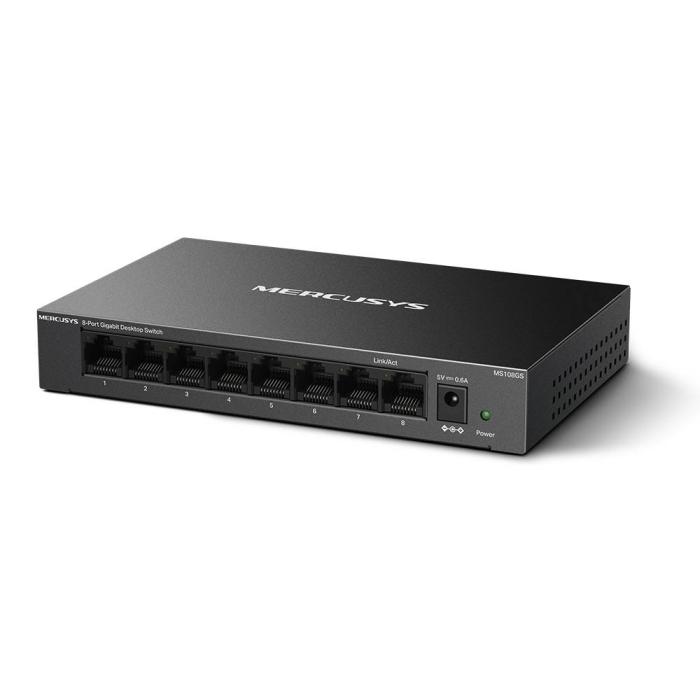

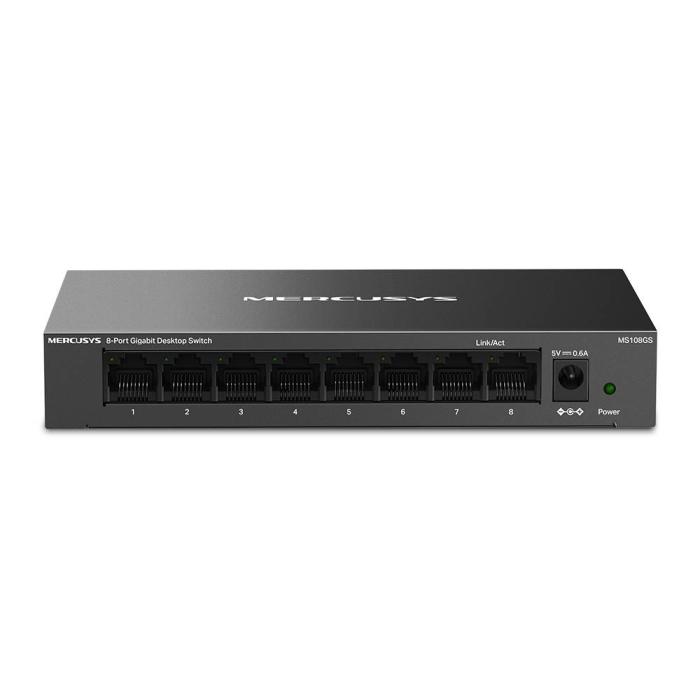

Mercusys MS108GS unmanaged switch integrates eight RJ-45 Gigabit Ethernet (10/100/1000) ports in a black desktop device, designed to expand your home or office network with fast, stable connections. Its plug-and-play operation requires no configuration, as it includes auto-negotiation, auto MDI/MDI-X, flow control and full duplex support so each connected device communicates without manual intervention. With a switching capacity of 16 Gbit/s and a MAC address table of 8000 entries, it manages traffic in store-and-forward mode, supporting jumbo frames up to 15000 bytes for more efficient file transfers. Compatible with IEEE 802.3, 802.3ab, 802.3i, 802.3p, 802.3u and 802.3x standards.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Optical fiber
- Transmission distance (max): 0.1 km
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 15000
- Packet buffer memory: 0.5 MB
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Wall mountable: Yes
Performance
- Fanless: Yes
Power
- Power source: DC
- Power supply included: Yes
- AC input voltage: 220 V
- AC input frequency: 50/60 Hz
- DC input voltage: 5 V
- Input current: 0.6 A
- Power consumption (max): 4.22 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 14.348 BTU/h
Weight & dimensions
- Width: 158 mm
- Depth: 99.1 mm
- Height: 25.2 mm
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Manual: Yes
Certificates
- Certification: CE, RoHS
