Description

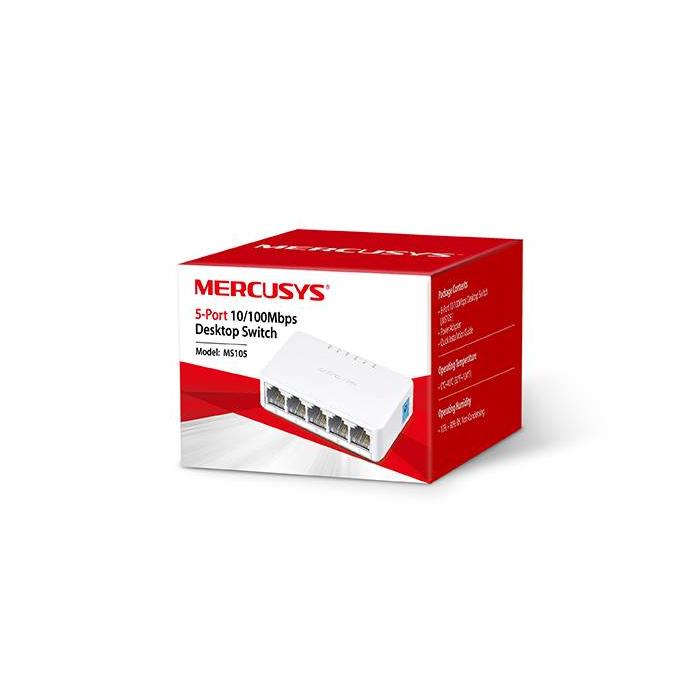

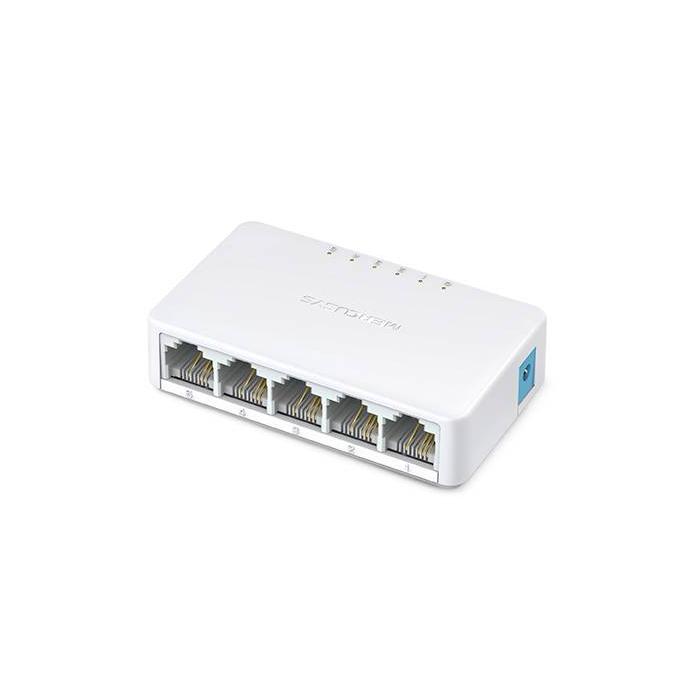

Connect up to five network devices with the Mercusys MS105 unmanaged switch in white, designed to easily expand your home or small office network. This Fast Ethernet (10/100) model offers RJ-45 ports with auto-negotiation, auto MDI/MDI-X, and support for full-duplex and half-duplex transmission, making it easy to connect computers, printers, or consoles. It includes features such as jumbo frames of 2000 and a packet buffer of 0.768 MB, with LAN and power LED indicators for simple monitoring. Its compact design and DC input socket make it easy to install on any desk, complying with IEEE 802.3, 802.3u, and 802.3x standards.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 2000
- Packet buffer memory: 0.768 MB
Design
- Rack mounting: No
- Stackable: No
- Product colour: White
- LED indicators: LAN, Power
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.6 A
- Input voltage: 5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 82 mm
- Depth: 49 mm
- Height: 21 mm
Packaging content
- Quick start guide: Yes
Packaging data
- Package width: 87 mm
- Package depth: 80 mm
- Package height: 57 mm
- Package weight: 140 g
Certificates
- Certification: CE, RoHS
