Description

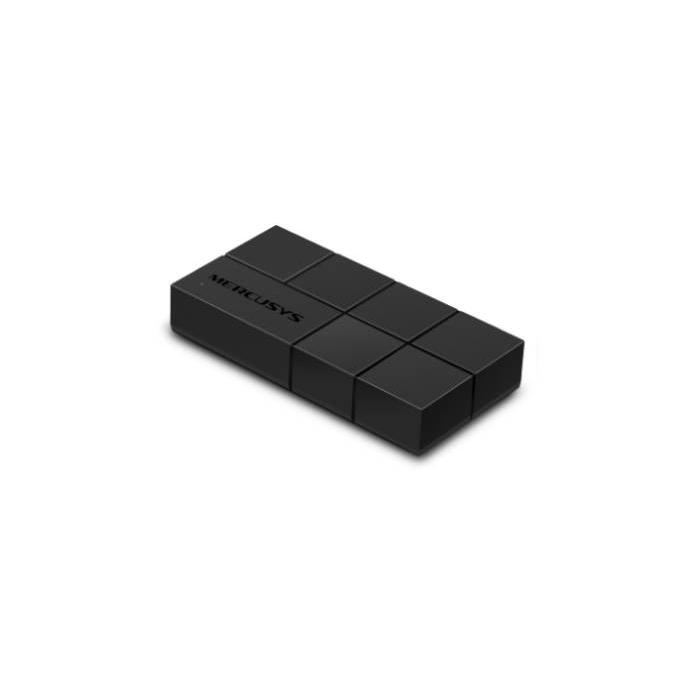

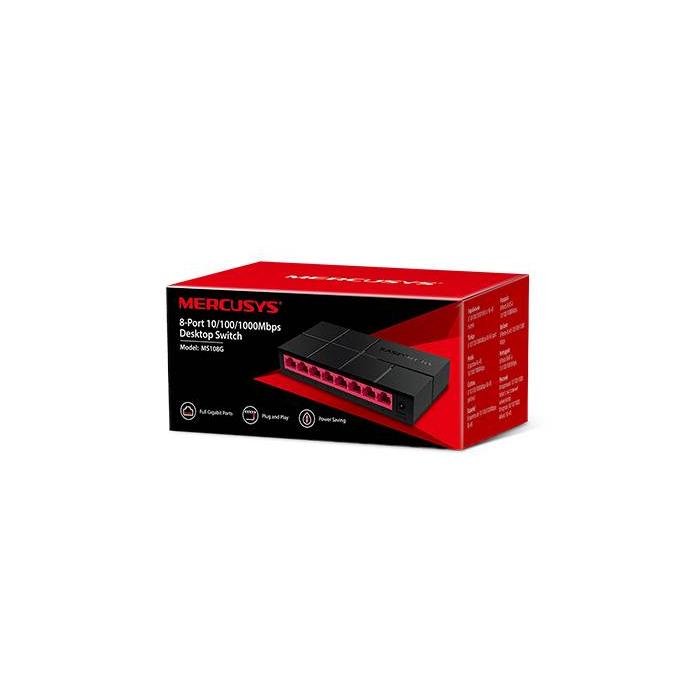

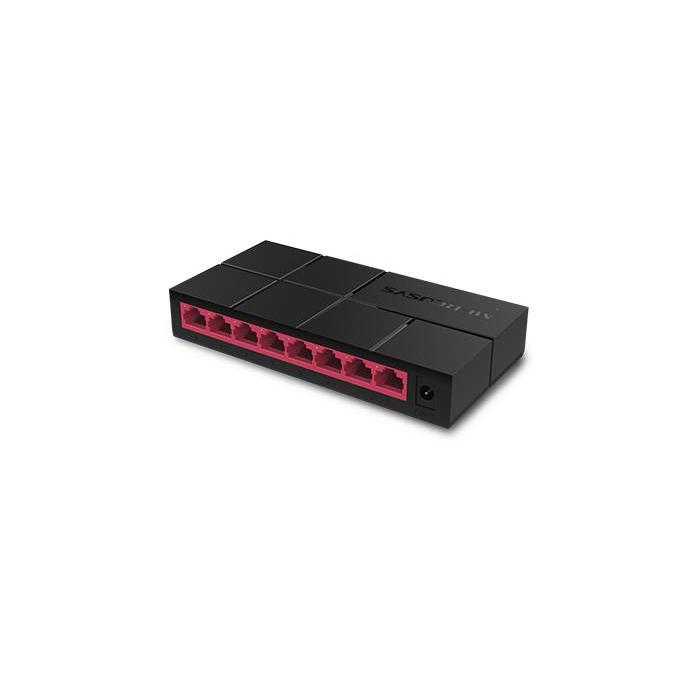

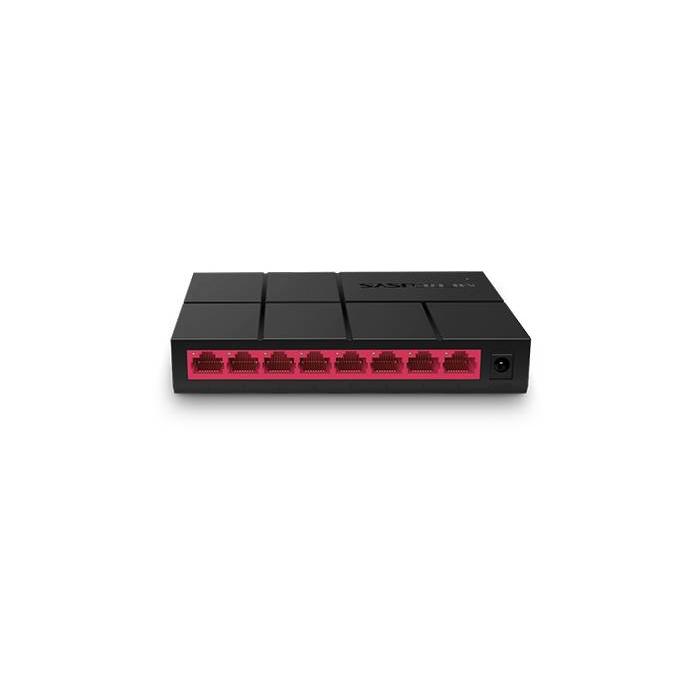

Mercusys MS108G unmanaged switch with eight Gigabit Ethernet ports (10/100/1000) in black, designed to expand your local network without the need for configuration. Connect up to eight wired devices and let auto-negotiation and auto MDI/MDI-X automatically adjust the speed and direction of each port. Its store-and-forward switching and support for 9000-byte jumbo frames optimise data transfer, while the IEEE 802.3, 802.3u and 802.3x standards ensure compatibility with current equipment. The LAN and power LED indicators inform you of the status of each connection, and its full-duplex and half-duplex operation adapts to different types of traffic.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- LED indicators: LAN, Power
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.6 A
- Input voltage: 9 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Weight & dimensions
- Width: 144.8 mm
- Depth: 72.3 mm
- Height: 25 mm
Packaging data
- Package width: 149 mm
- Package depth: 93 mm
- Package height: 62 mm
- Package weight: 250 g
Logistics data
- Harmonized System (HS) code: 85176990
