Description

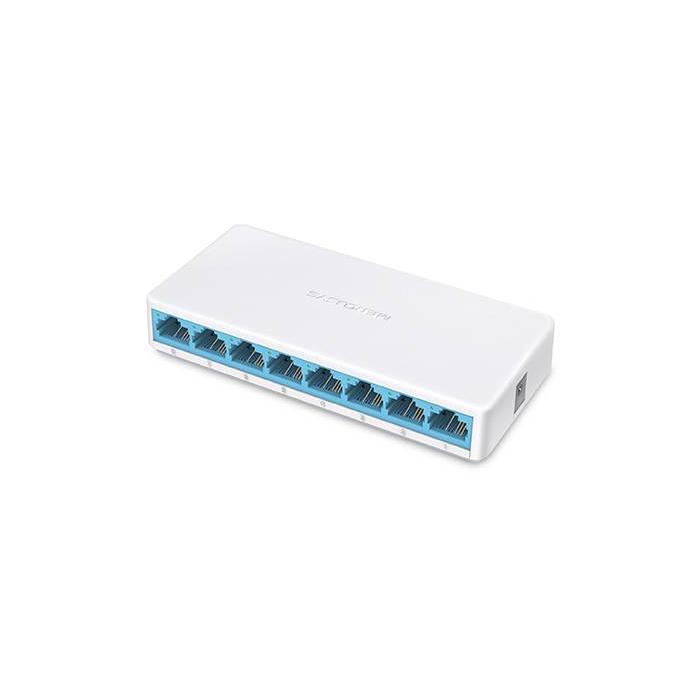

The Mercusys MS108 switch, in its white version, offers 8 Fast Ethernet ports (10/100) for connecting multiple network devices at home or in the office. As an unmanaged model, it requires no configuration: just plug in the network cable and it works directly thanks to auto-negotiation and automatic MDI/MDI-X detection. It supports jumbo frames up to 2000 bytes and full duplex operation for more efficient data transmission. With its LED activity and power indicators, and the included power supply, you will have a device ready to expand your network without complications.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 2000
Design
- Rack mounting: No
- Stackable: No
- Product colour: White
- LED indicators: Activity, Power
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.4 A
- Input voltage: 5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 127 mm
- Depth: 60.2 mm
- Height: 22 mm
Packaging content
- Quick start guide: Yes
- Manual: Yes
Packaging data
- Package width: 132 mm
- Package depth: 80 mm
- Package height: 57 mm
- Package weight: 180 g
Certificates
- Certification: RoHS CE
Logistics data
- Harmonized System (HS) code: 85176990
