Description

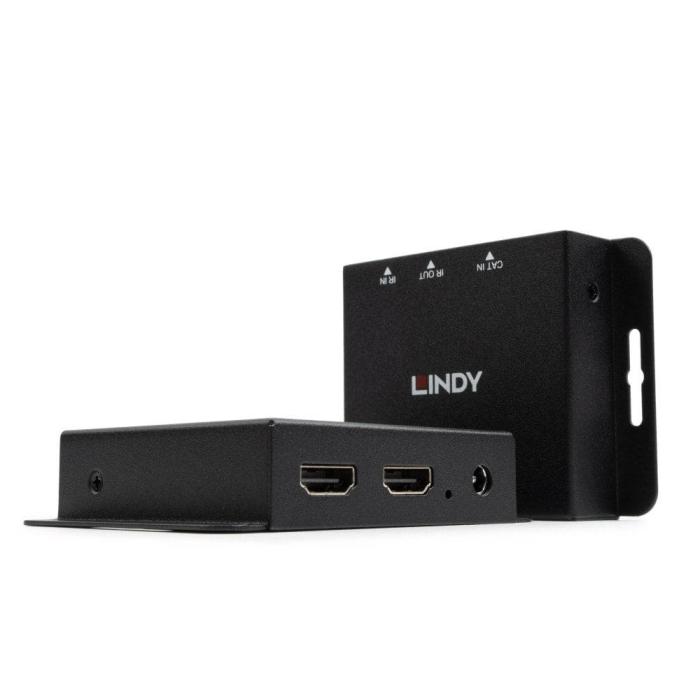

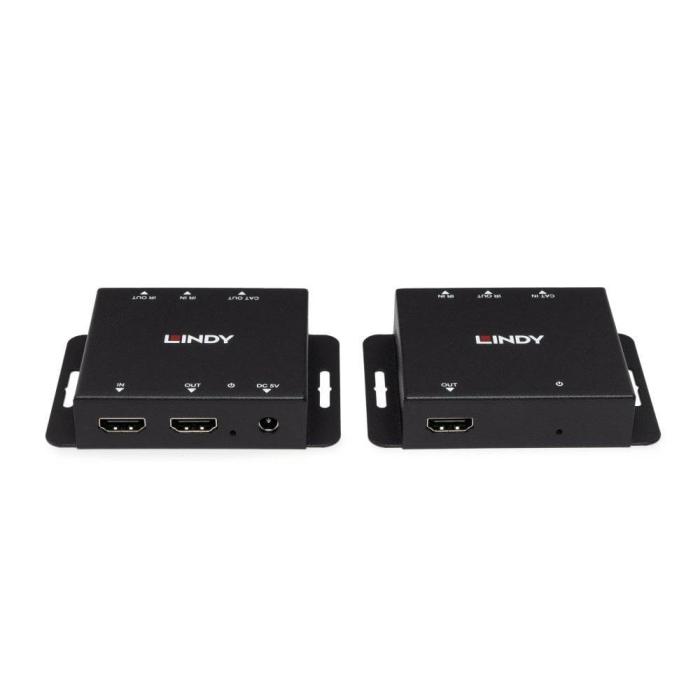

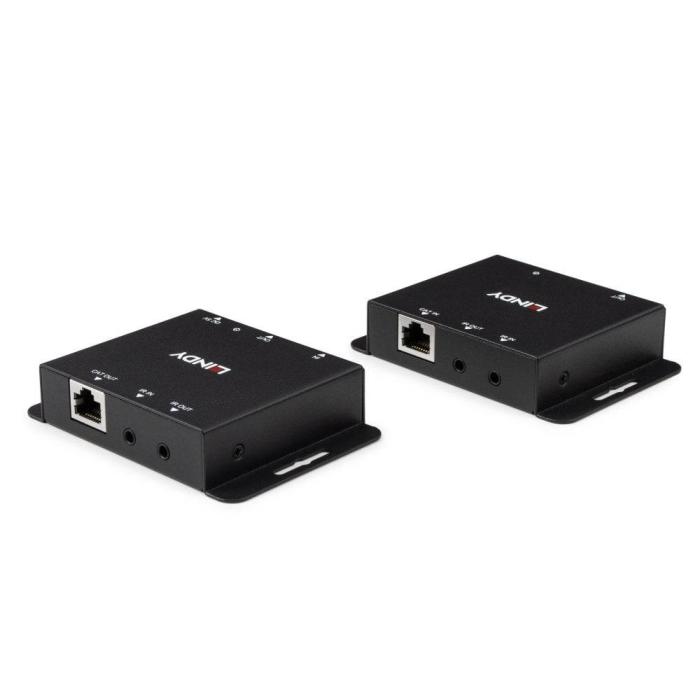

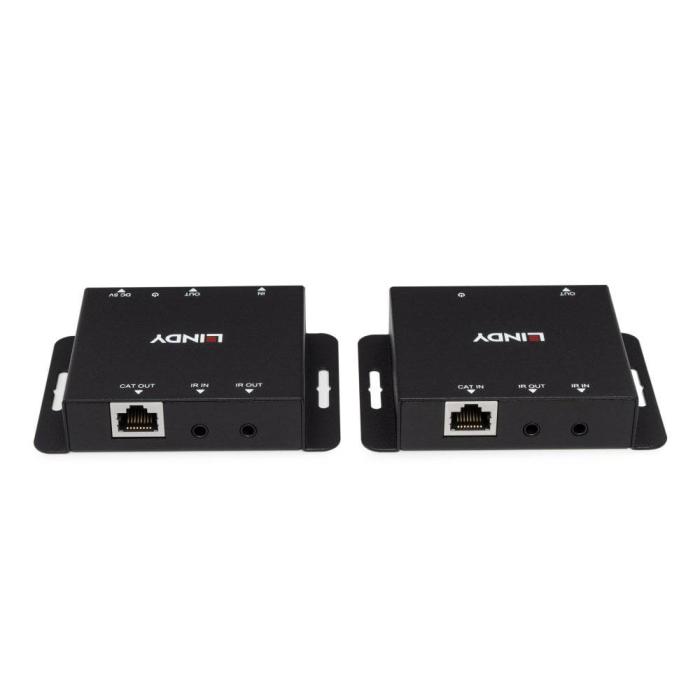

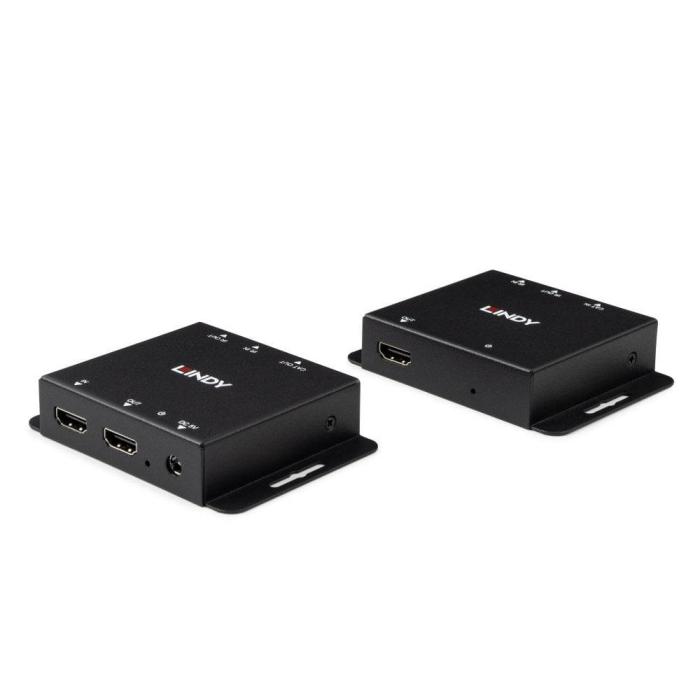

Lindy 38509 audio/video extender in black, a transmitter and receiver unit made of metal that sends video with a maximum resolution of 1920 x 1200 pixels at 60 Hz and audio up to 7.1 channels. Uses Cat5e or Cat6 network cabling to reach distances of up to 50 metres, with a bandwidth of 4.95 Gbit/s and H.265 compression for 1080p signals. Includes one RJ-45 input port and an IR remote input operating between 20 and 60 kHz, compatible with HDCP 1.4 thanks to its GSV100T chipset and CE, FCC, RoHS, REACH, and California Proposition 65 certifications.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 50 m
- Chipset: GSV100T
- Maximum refresh rate: 60 Hz
- Audio output channels: 7.1 channels
- Infrared (IR) frequency range: 20 - 60 kHz
- Supported video modes: 1080p
- Bandwidth: 4.95 Gbit/s
- Video compression formats: H.265
- HDCP: Yes
- Material: Metal
- HDCP version: 1.4
- Product colour: Black
- Certification: CE, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 2
- Video in: 1
- Video out: 2
- Remote (IR) input: 1
- Remote (IR) output: 1
- DC-in jack: Yes
Power
- Operating voltage (transmitter): 5 V
- Output current: 1 A
- Operating voltage (receiver): 5 V
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
- Receiver dimensions (WxDxH): 96 x 20 x 68 mm
- Receiver weight: 440 g
- Transmitter dimensions (WxDxH): 96 x 20 x 68 mm
- Transmitter weight: 440 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 215 mm
- Package depth: 135 mm
- Package height: 75 mm
- Package weight: 610 g
- Package type: Box
Packaging content
- AC adapter included: Yes
- Manual: Yes
Technical details
- Special features: PoC (Power over Cable), IR pass-through, Loop Out
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
