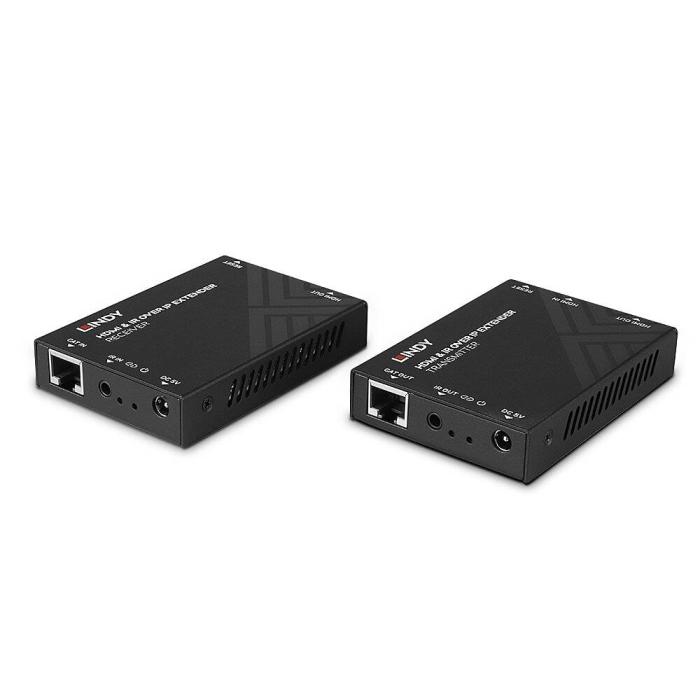

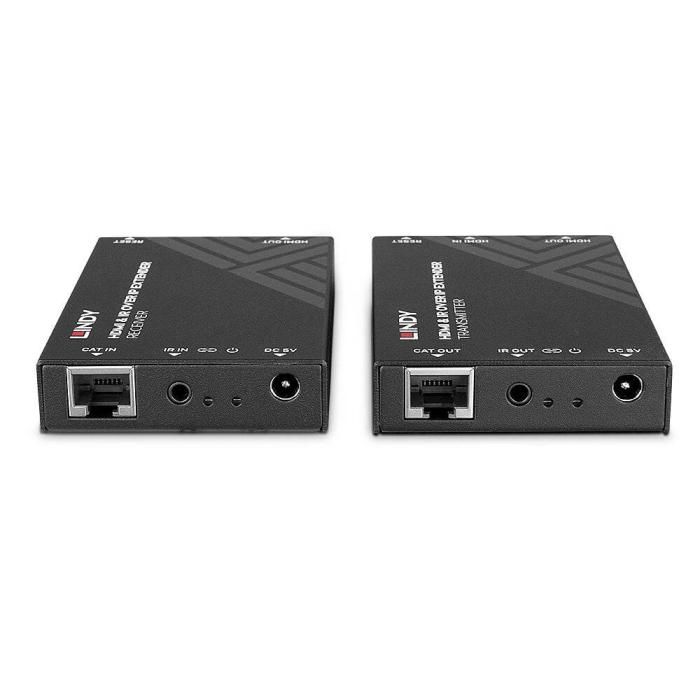

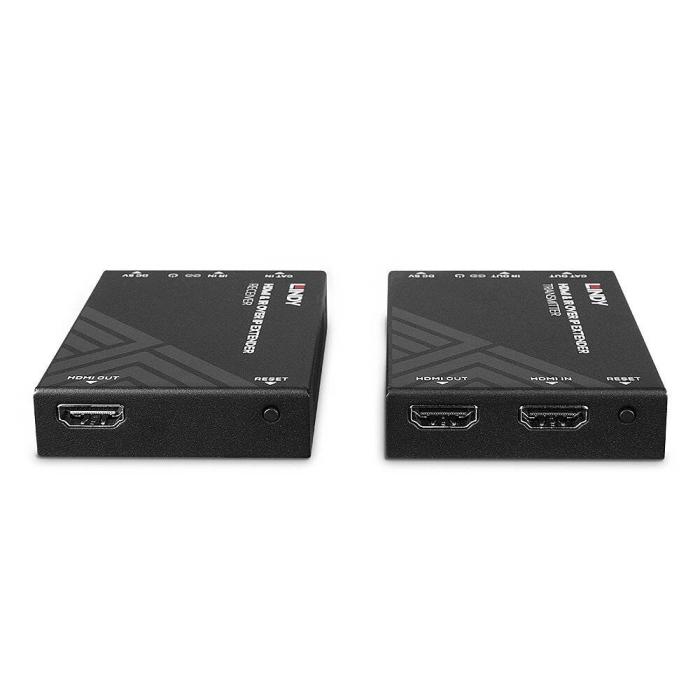

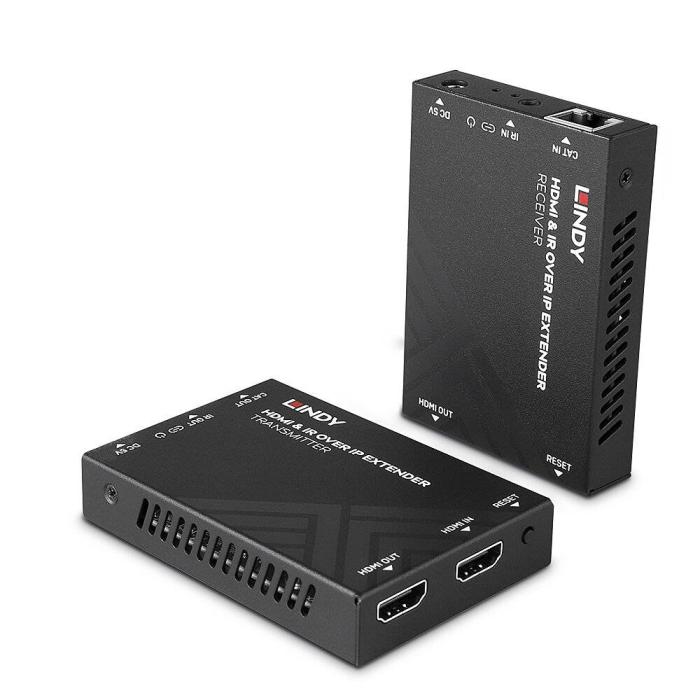

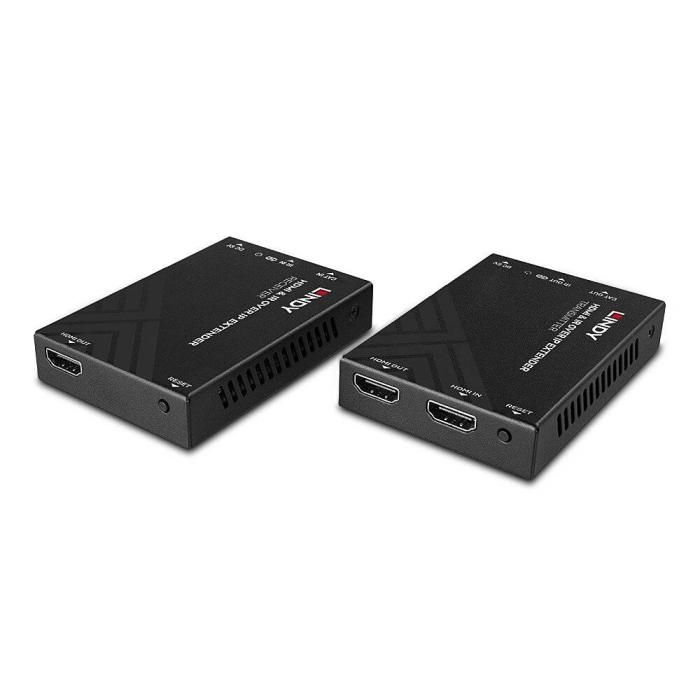

Lindy HDMI and IR over IP Extender

Name: Lindy HDMI and IR over IP Extender
Brand: LINDY
Price: 161 EUR
Availability: InStock

161.00 €

133.06 € without VAT

More info

Amount

Brand: LINDY

SKU: 119290 PRC: 474708 EAN: 4002888383981 PN: 38398

Description

HDMI and IR over IP Extender

Specifications

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1080 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 150 m
Chipset: SSC337DE - SSD203D
Maximum refresh rate: 60 Hz
Infrared (IR) frequency range: 20 - 60 kHz
Supported video modes: 1080p
Bandwidth: 6.75 Gbit/s
Video compression formats: H.265
HDCP: Yes
Material: Metal
HDCP version: 1.4
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
Video in: 1
Video out: 2
Remote (IR) input: 1
Remote (IR) output: 1
DC-in jack: Yes

Power

Operating voltage (transmitter): 5 V
Output current: 1 A
Operating voltage (receiver): 5 V

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Receiver dimensions (WxDxH): 88 x 61.2 x 16.5 mm
Receiver weight: 530 g
Transmitter dimensions (WxDxH): 88 x 61.2 x 16.5 mm
Transmitter weight: 530 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 220 mm
Package depth: 130 mm
Package height: 70 mm
Package weight: 730 g

Packaging content

Manual: Yes

Technical details

Sustainability compliance: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
