Description

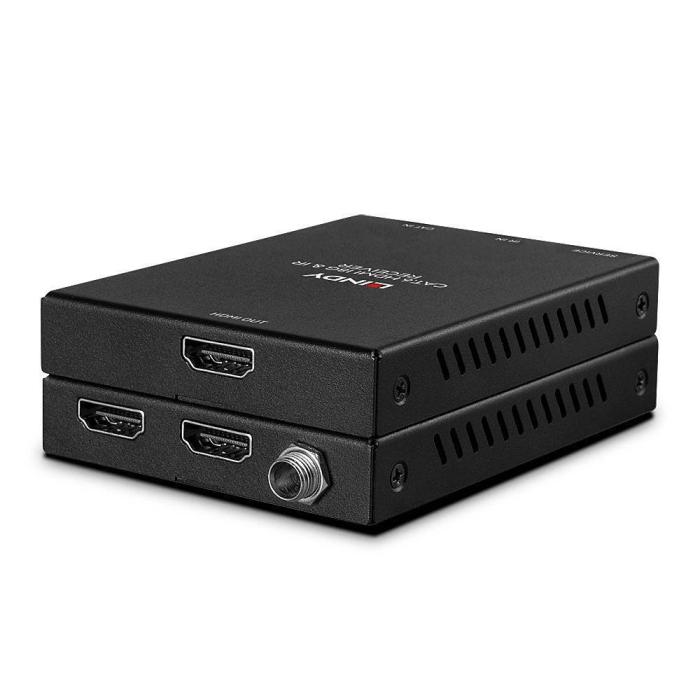

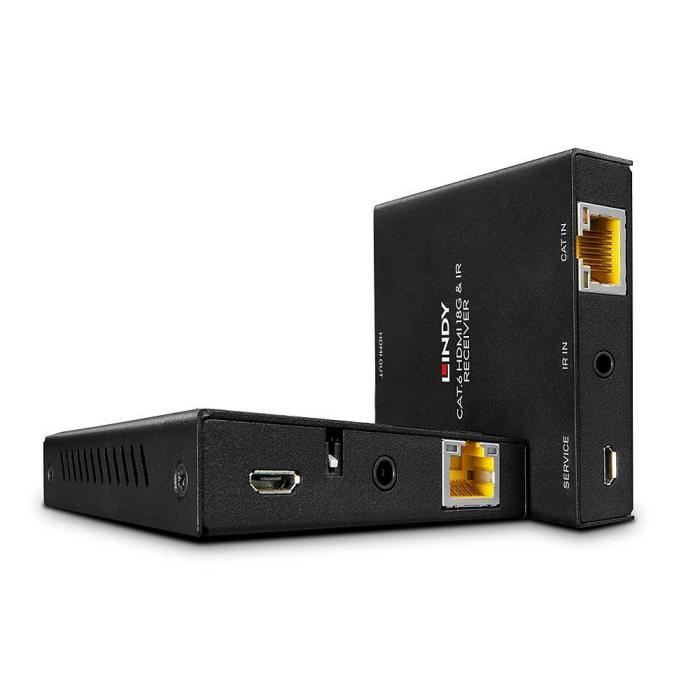

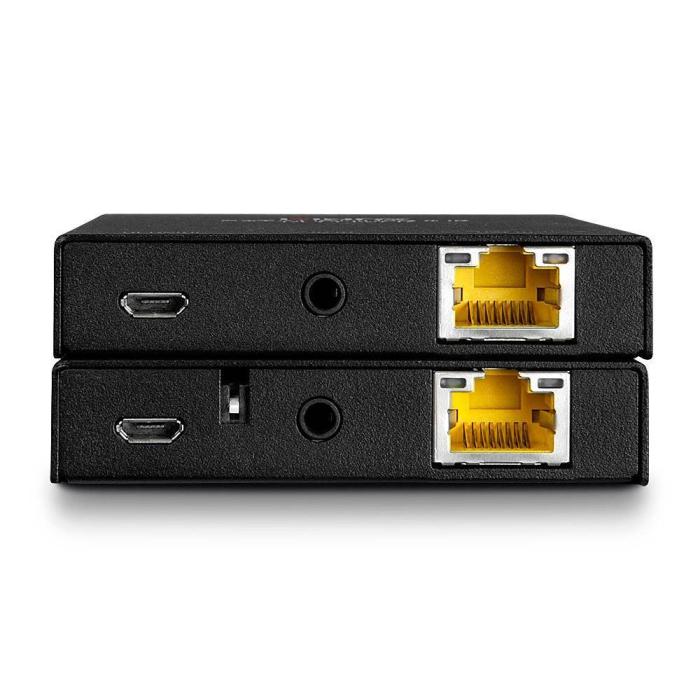

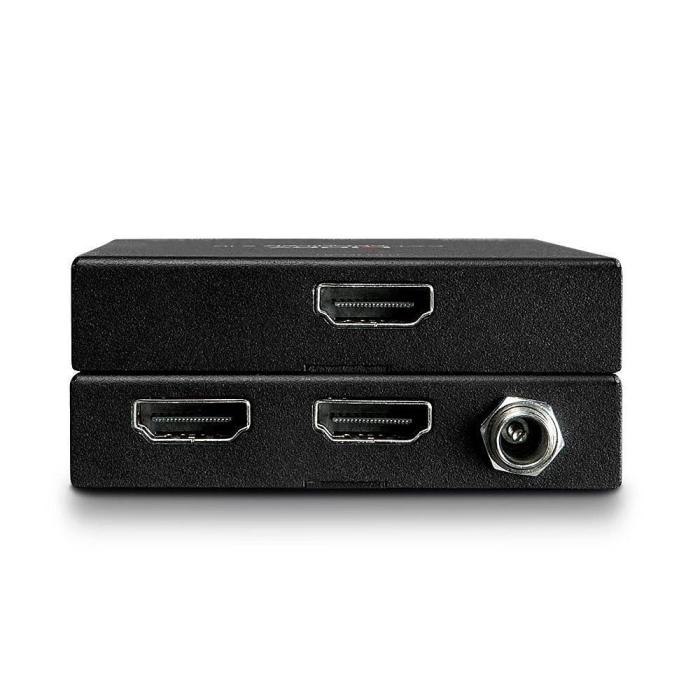

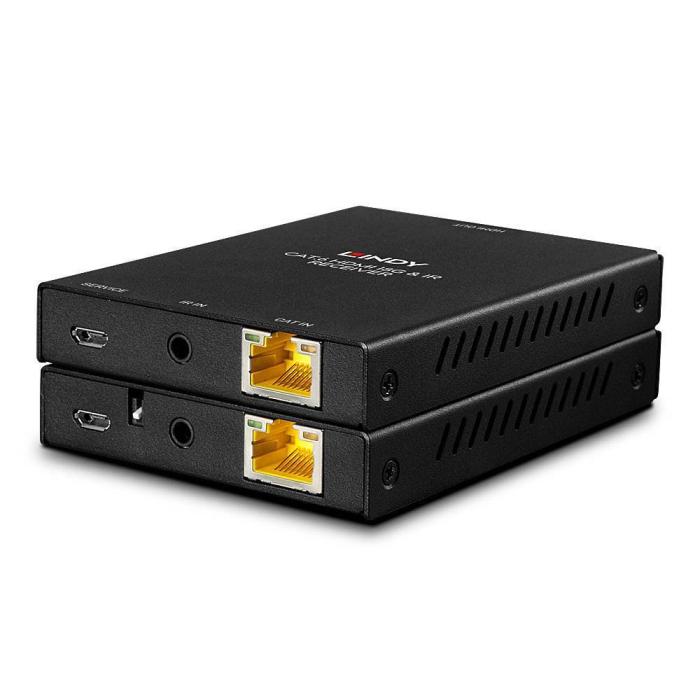

The LINDY 38205 is a black AV signal extender that works as both transmitter and receiver to carry audio and video from one point to another with a single unit. It reaches a maximum resolution of 3840 x 2160 pixels and a refresh rate of 60 Hz, with a bandwidth of 18 Gbit/s and HDMI 2.0 compatibility. The maximum transfer distance reaches 50 metres using Cat5e or Cat6 cables, allowing the source equipment to be separated from the display without losing image quality. It features HDCP pass-through and full reading of Extended Display Identification Data (EDID), so that the signal is correctly negotiated between the connected devices. It has two HDMI outputs, one RJ-45 input and a MicroUSB connector, and includes an IR pass-through output to control the source equipment from the receiver's location. Its casing is metal, which provides robustness in fixed installations.
Specifications
Features
- HDCP: Yes
- Material: Metal
- Product colour: Black
- Certification: CE, FCC, REACH & California Proposition 65
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 50 m
- Chipset: SIL9396, SIL9630
- Maximum refresh rate: 60 Hz
- Extended display identification data (EDID): Yes
- IR pass-through: Yes
- HDCP pass-through: Yes
- Bandwidth: 18 Gbit/s
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 2
- HDMI version: 2.0
- USB ports quantity: 2
- USB connector type: Micro-USB
- Remote (IR) input: 1
- Remote (IR) output: 1
- DC-in jack: Yes
Power
- Operating voltage: 24 V
- Input current: 1 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
- Receiver dimensions (WxDxH): 70 x 15 x 97 mm
- Receiver weight: 151 g
- Transmitter dimensions (WxDxH): 70 x 15 x 97 mm
- Transmitter weight: 156 g
Packaging data
- Package width: 220 mm
- Package depth: 70 mm
- Package height: 130 mm
- Package weight: 605 g
- Package type: Box
Packaging content
- Cables included: IR
- Manual: Yes
Technical details
- Compliance certificates: RoHS
