Description

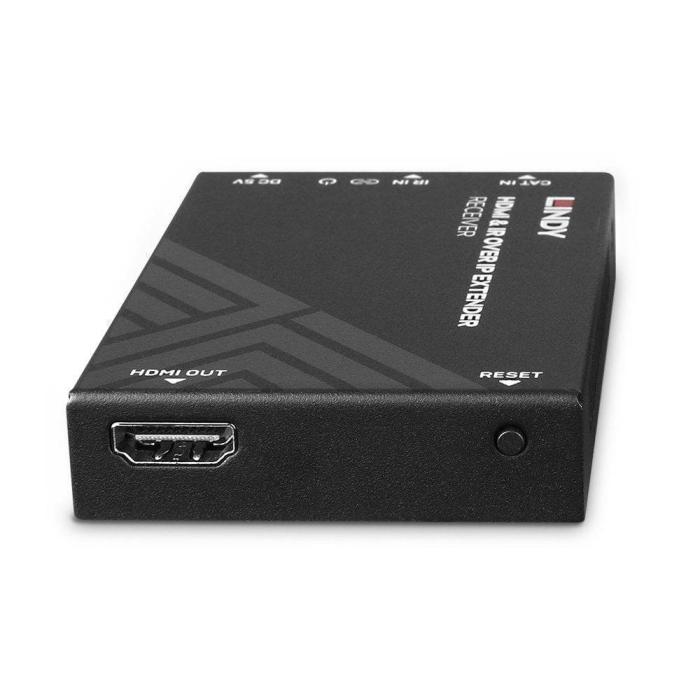

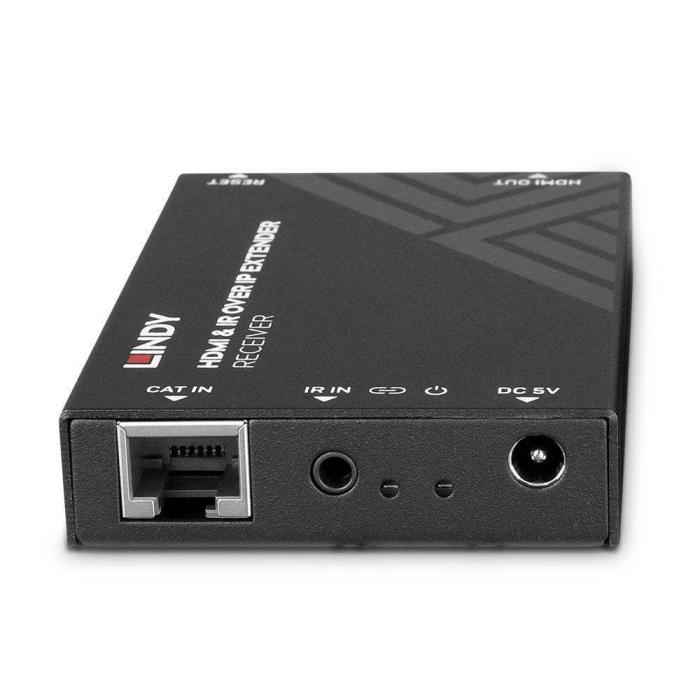

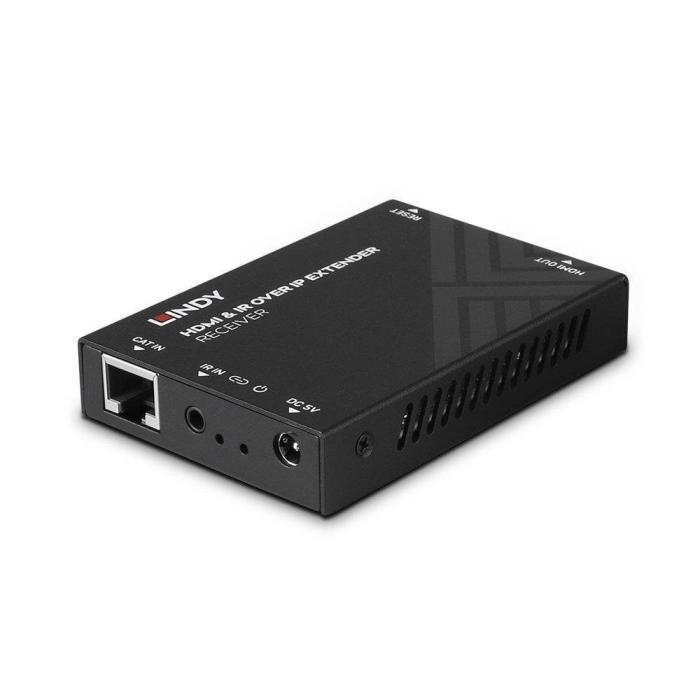

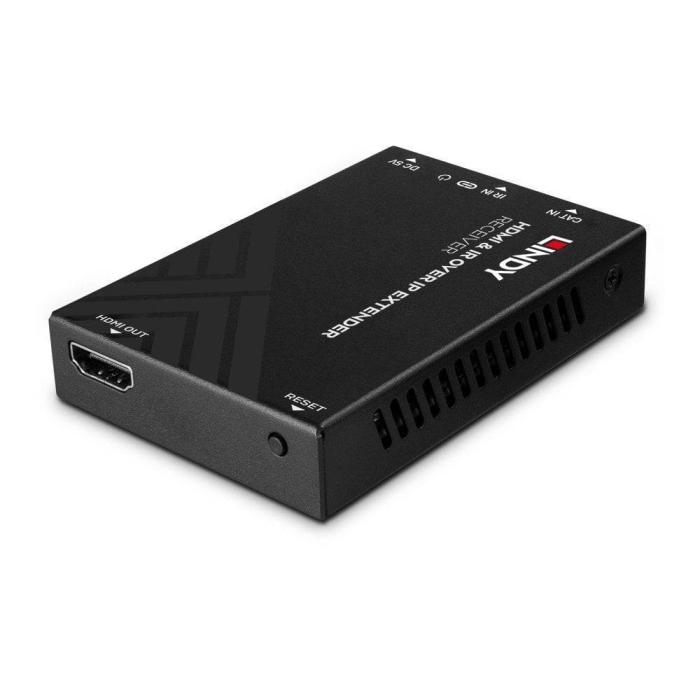

Lindy AV receiver in black to extend audio and video signals up to 150 metres over Cat5e or Cat6 network cabling, achieving Full HD resolution of 1920 x 1080 pixels at 60 Hz. This unit, which acts as the receiver end in an installation with a compatible transmitter, uses the SSD203D chipset and H.265 compression to send content over IP protocol with a bandwidth of 6.75 Gbit/s. It features an HDMI 1.3 output with HDCP 1.4, stereo audio channels 2.0, and an IR input for remote control with a frequency of 20 to 60 kHz, plus a DC power connector. Designed for integration into AV distribution systems over networks, this receiver facilitates sending the signal to remote areas without quality loss.
Specifications
Features
- Type: AV receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 150 m
- Chipset: SSD203D
- Maximum refresh rate: 60 Hz
- Audio output channels: 2.0 channels
- Supported network protocols: IP
- Infrared (IR) frequency range: 20 - 60 kHz
- Bandwidth: 6.75 Gbit/s
- Video compression formats: H.265
- HDCP: Yes
- HDCP version: 1.4
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 1
- Number of HDMI outputs: 1
- HDMI version: 1.3
- Remote (IR) input: 1
- DC-in jack: Yes
Power
- Power source type: DC
- Operating voltage: 5 V
- Output current: 1 A
Operational conditions
- Operating temperature (T-T): -10 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
- Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 88 mm
- Depth: 16.5 mm
- Height: 61.2 mm
- Weight: 236 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 146 mm
- Package depth: 65 mm
- Package height: 105 mm
- Package weight: 357 g
- Package type: Box
Packaging content
- AC adapter included: Yes
- Cables included: IR
- Included power plug types: AU, EU, UK, US
- Manual: Yes
Technical details
- Sustainability compliance: Yes
- Compliance certificates: Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
