Description

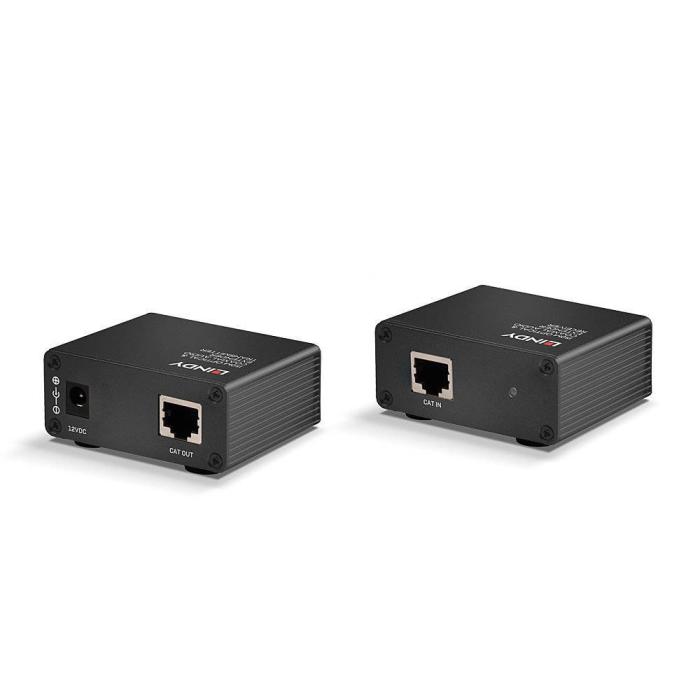

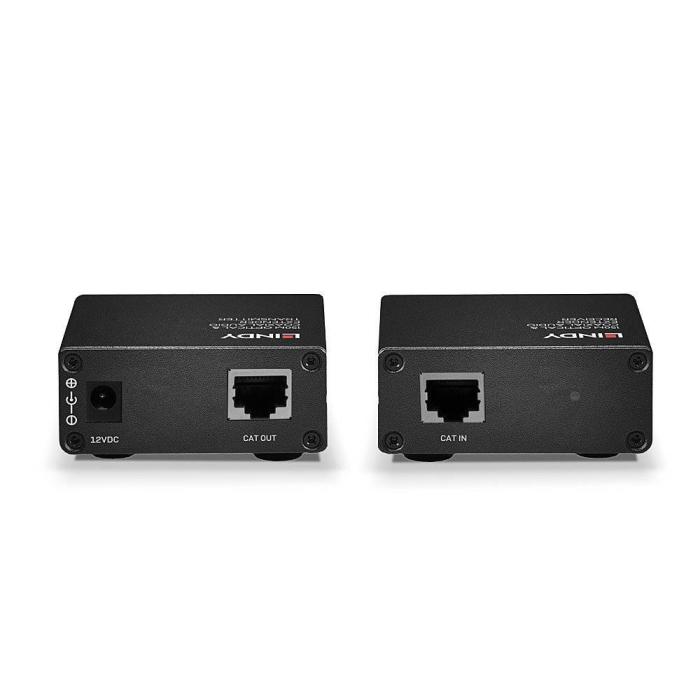

The LINDY 70456 audio and video extender, in black, works as a transmitter and receiver of AV signals over network cable. It uses Cat5e or Cat6 cables and reaches a maximum transfer distance of 150 metres, which allows the signal to be carried to equipment located in other rooms. Its connectivity is wired and it has one RJ-45 input port and another RJ-45 output port for the signal run. In the audio section it supports DTS and LPCM formats, and includes a coaxial digital input, a coaxial digital output, a Toslink optical input and an optical output. The housing is metal and the set is based on the EL5171/EL5172 chipset. The transmitter operates with an operating voltage of 12 V and has a direct current input plug. It complies with CE, FCC, RoHS, REACH and California Proposition 65 certifications.
Specifications
Features
- Type: AV transmitter & receiver
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 150 m
- Chipset: EL5171/ EL5172
- Audio formats supported: DTS, LPCM
- Material: Metal
- Product colour: Black
- Certification: CE, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- Digital audio coaxial in: 1
- Digital audio coaxial out: 1
- Digital audio optical in: 1
- Digital audio optical input type: TOSLINK
- Digital audio optical out: 1
- DC-in jack: Yes
Power
- Operating voltage (transmitter): 12 V
- Current: 1.25 A
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Receiver dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm
- Receiver weight: 168 g
- Transmitter dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm
- Transmitter weight: 168 g
Packaging data
- Package width: 190 mm
- Package depth: 60 mm
- Package height: 145 mm
- Package weight: 405 g
- Package type: Box
Packaging content
- AC adapter included: Yes
- Included power plug types: EU, UK, US
- Manual: Yes
Technical details
- Compliance certificates: RoHS
