Description

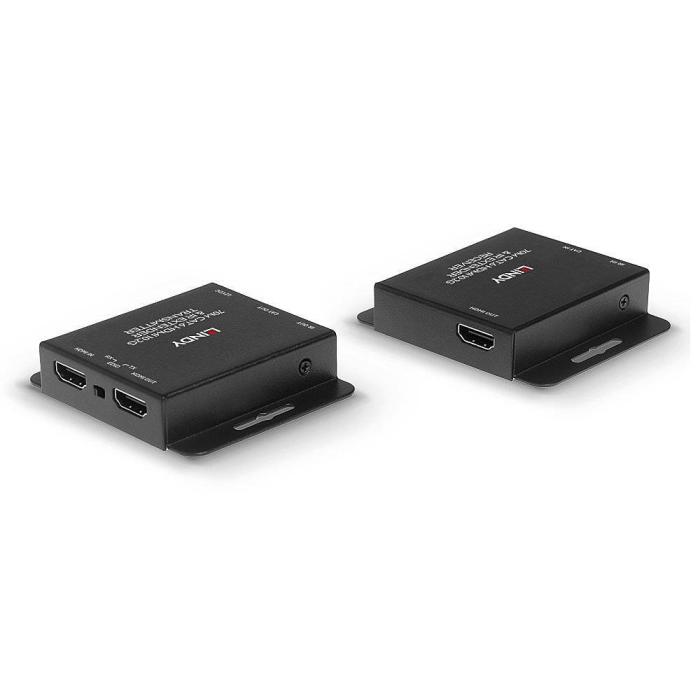

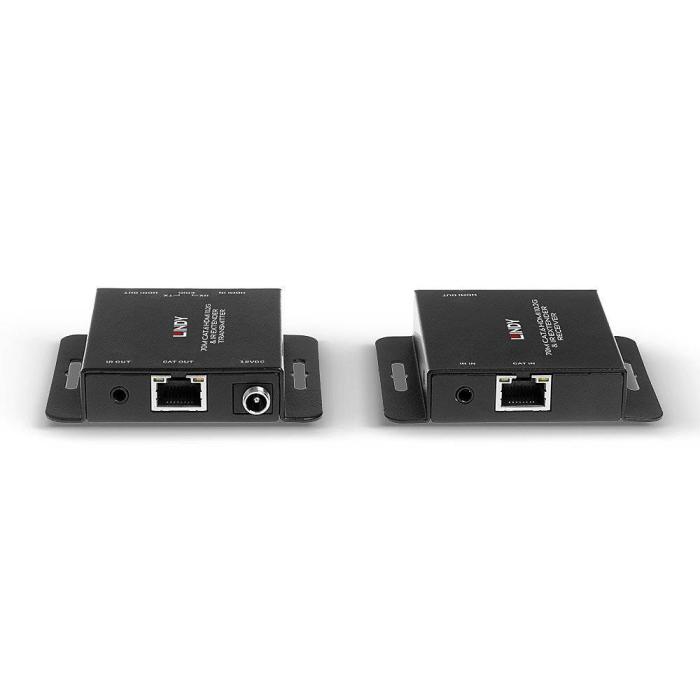

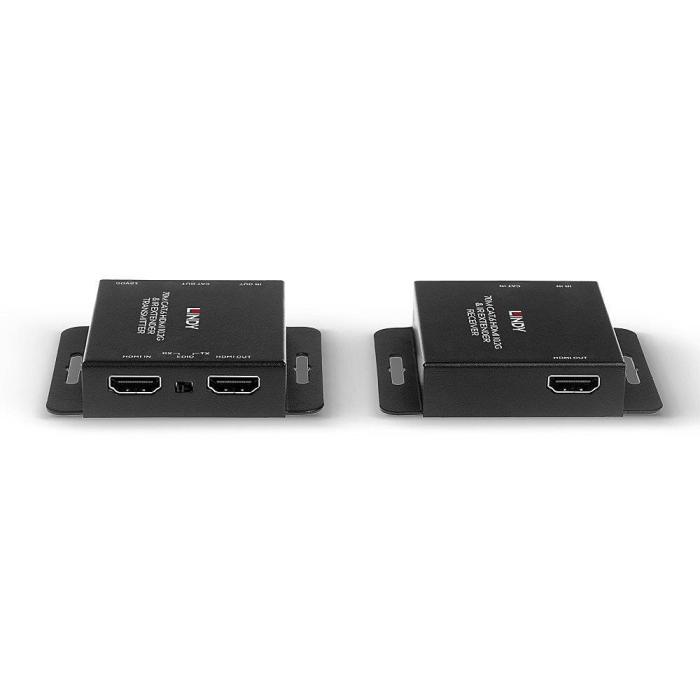

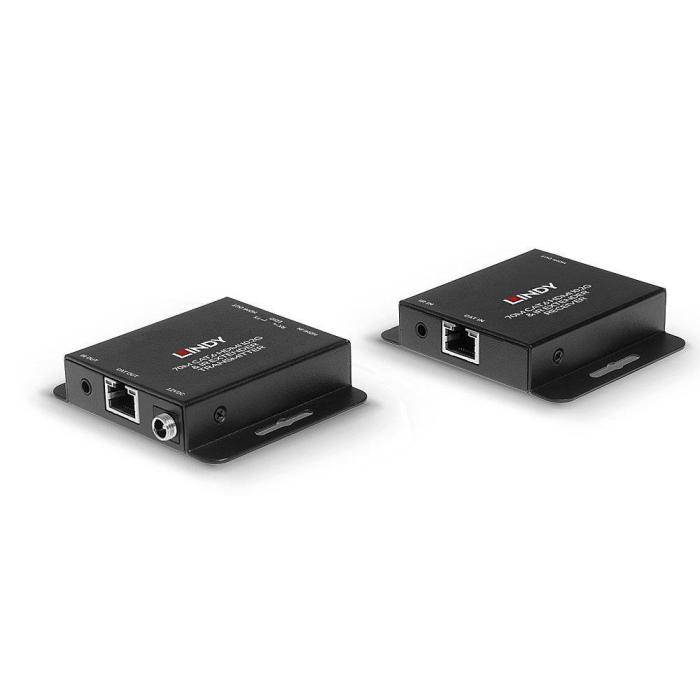

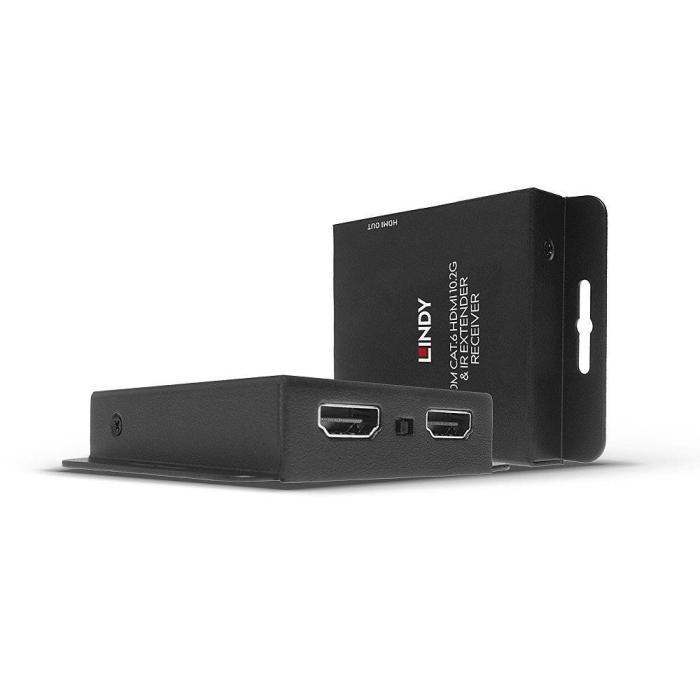

The Lindy 38208 is a black AV signal transmitter and receiver extender that allows audio and video to be sent over Cat6 cable. It reaches a maximum transfer distance of 70 m and supports resolutions up to 3840 x 2160 pixels with a refresh rate of 60 Hz. Its bandwidth of 10.2 Gbit/s and the GSV1001 chipset sustain the signal, while full screen identification data (EDID) and HDCP version 1.4 compatibility facilitate the management of protected content. It incorporates one HDMI input, two HDMI outputs and one remote (IR) input to control the source from the destination point. It offers 7.1 channels of audio output and its metal casing measures 79.5 x 16.5 x 69 mm (width x height x depth), with a weight of 130 g.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Cat6
- Maximum transfer distance: 70 m
- Chipset: GSV1001
- Maximum refresh rate: 60 Hz
- Extended display identification data (EDID): Yes
- Audio output channels: 7.1 channels
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160
- Bandwidth: 10.2 Gbit/s
- HDCP: Yes
- Material: Metal
- HDCP version: 1.4
- Product colour: Black
- Certification: CE, FCC, RoHS, REACH
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 2
- HDMI version: 1.4
- Remote (IR) input: 1
- Remote (IR) output: 1
Power
- Operating voltage: 12 V
- Input current: 1 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 79.5 mm
- Depth: 69 mm
- Height: 16.5 mm
- Weight: 130 g
Packaging data
- Package width: 200 mm
- Package depth: 70 mm
- Package height: 113 mm
- Package weight: 414 g
Packaging content
- AC adapter included: Yes
- Manual: Yes
- IR receiver included: Yes
Technical details
- Compliance certificates: CE, REACH, RoHS
