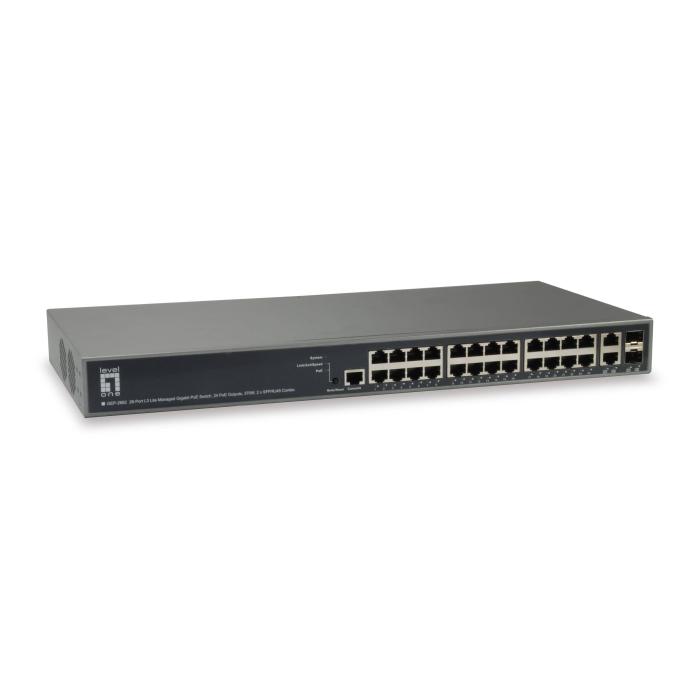

LevelOne TURING 26-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 370W, 2 x SFP/RJ45 Combo

$1,267.35
$1,267.35 without VAT

More info

Brand: LEVELONE
SKU: 116225 PRC: 147588 EAN: 4015867198971 PN: GEP-2682

Description

LevelOne TURING 26-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 370W, 2 x SFP/RJ45 Combo, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • System event log: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Combo SFP ports quantity: 2
  • Console port: RJ-45

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Spanning tree protocol: Yes
  • Cable length detection: Yes
  • VLAN support: Yes
  • Virtual LAN features: Private VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN

Optical fiber

  • Fiber ethernet cabling technology: 1000BASE-X

Data transmission

  • Switching capacity: 52 Gbit/s
  • Forwarding rate: 38.7 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9600

Security

  • DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: 802.1x RADIUS
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes

Protocols

  • Supported network protocols: IPv4/IPv6
  • GARP VLAN Registration Protocol (GVRP): Yes

Design

  • Rack mounting: Yes
  • LED indicators: Activity, Link, PoE, Speed, System
  • Safety: CB IEC-60950, UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10

Performance

  • Internal memory: 128 MB
  • Flash memory: 32 MB
  • Firmware upgradeable: Yes
  • Buffer size: 512 KB
  • Telnet: Yes
  • sFlow: Yes
  • Mean time between failures (MTBF): 211272 h

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 20.71 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

  • Width: 442 mm
  • Depth: 211 mm
  • Height: 44 mm
  • Weight: 3.5 kg

Packaging content

  • Cables included: AC, LAN (RJ-45)
  • Quick start guide: Yes

Packaging data

  • Package type: Blister
  • Resource CD: Yes
  • Package width: 300 mm
  • Package depth: 520 mm
  • Package height: 90 mm
  • Package weight: 3.9 kg

Certificates

  • Certification: CE, FCC Part 15 Class A

Logistics data

  • Country of origin: Taiwan
  • Master (outer) case width: 482 mm
  • Master (outer) case length: 540 mm
  • Master (outer) case height: 324 mm
  • Harmonized System (HS) code: 85176990
  • Master (outer) case gross weight: 20.7 kg
  • Products per master (outer) case: 5 pc(s)
