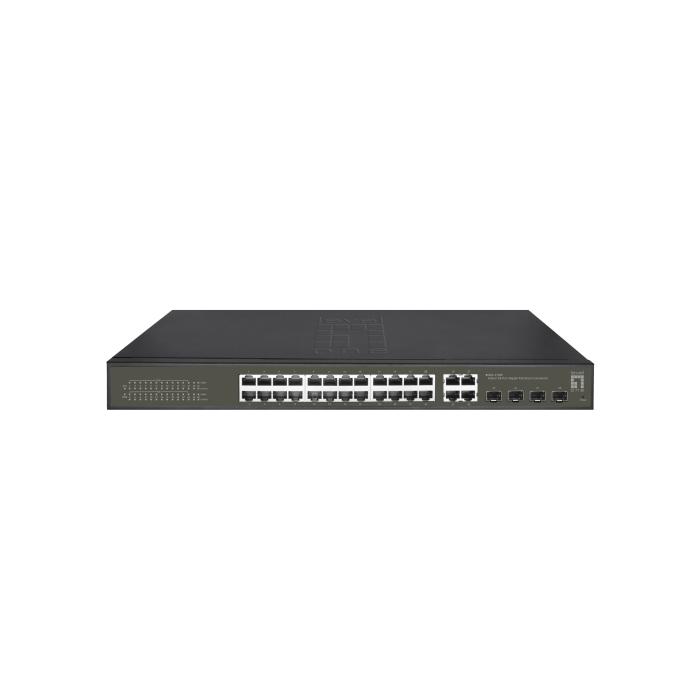

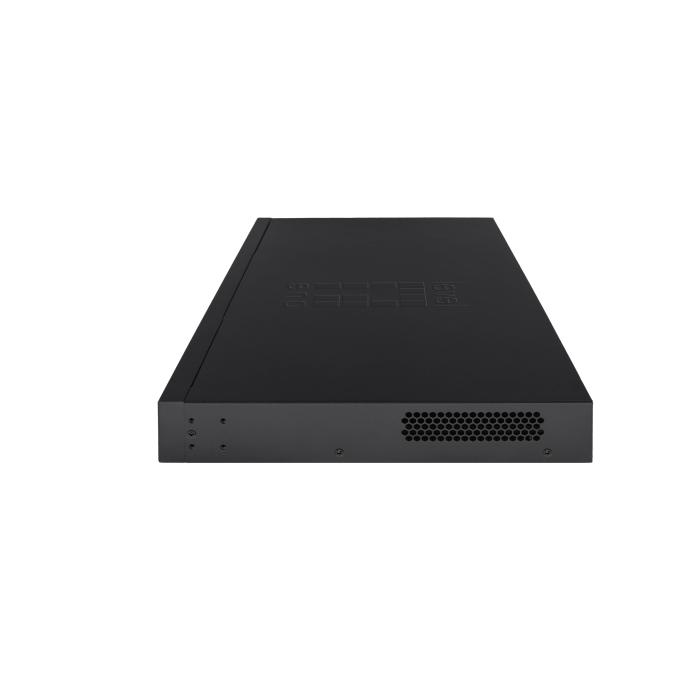

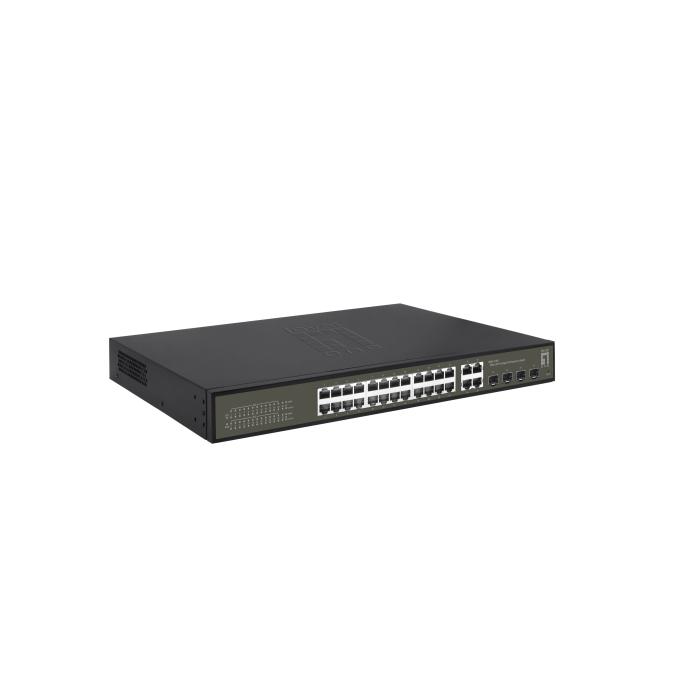

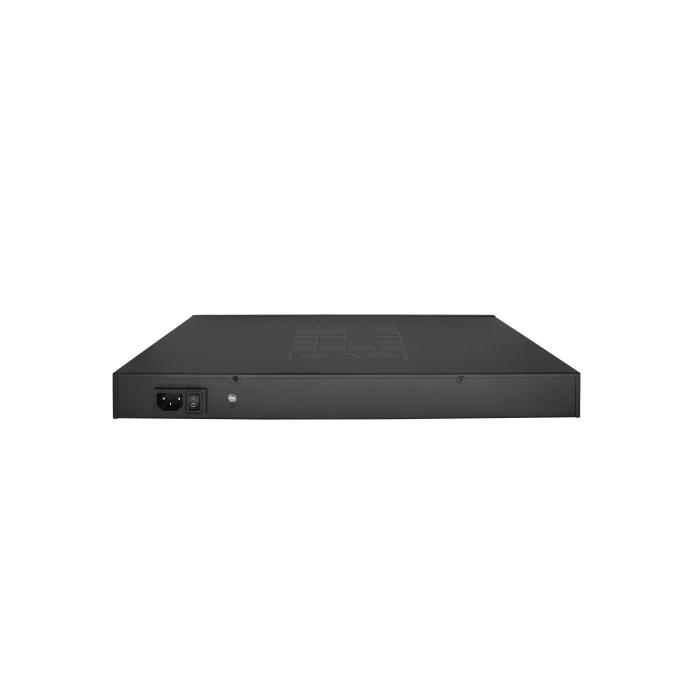

LevelOne Hilbert 28-Port Gigabit PoE Smart Lite Switch, 24 PoE Outputs, 4 x Gigabit SFP/RJ45 Combo, 802.3at/af PoE, 380W PoE Power Budget

446.00 €
368.60 € without VAT

More info

Brand: LEVELONE
SKU: 106241 PRC: 524690 EAN: 4015867229231 PN: GES-2128P

Description

LevelOne Hilbert 28-Port Gigabit PoE Smart Lite Switch, 24 PoE Outputs, 4 x Gigabit SFP/RJ45 Combo, 802.3at/af PoE, 380W PoE Power Budget, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Combo SFP ports quantity: 4

Network

  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 32

Data transmission

  • Switching capacity: 56 Gbit/s
  • MAC address table: 8000 entries
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB

Security

  • IGMP snooping: Yes

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Activity, Link, PoE, Power, System

Performance

  • Flash memory: 2 MB
  • Noise level: 30 dB
  • Fanless: No
  • Mean time between failures (MTBF): 43800 h

Power

  • Power source: AC/PoE
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 400 W
  • Surge protection: Yes
  • Surge protection voltage: 8 kV

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 380 W

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Heat dissipation: 88.71 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 290 mm
  • Height: 44.5 mm
  • Weight: 3.4 kg

Packaging content

  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes

Packaging data

  • Package type: Box
  • Package width: 515 mm
  • Package depth: 380 mm
  • Package height: 93 mm
  • Package weight: 4.1 kg

Technical details

  • Master (outer) cases per pallet (air): 16 pc(s)
  • Pallet gross length: 80 cm
  • Pallet gross width: 120 cm
  • Pallet height (air): 174.4 cm

Certificates

  • Compliance certificates: CE, RoHS
  • Certification: UKCA, FCC Class A

Logistics data

  • Master (outer) case net weight: 750 g
  • Country of origin: China
  • Master (outer) case width: 540 mm
  • Master (outer) case length: 320 mm
  • Master (outer) case height: 400 mm
  • Master (outer) case gross weight: 13.1 kg
  • Products per master (outer) case: 3 pc(s)
