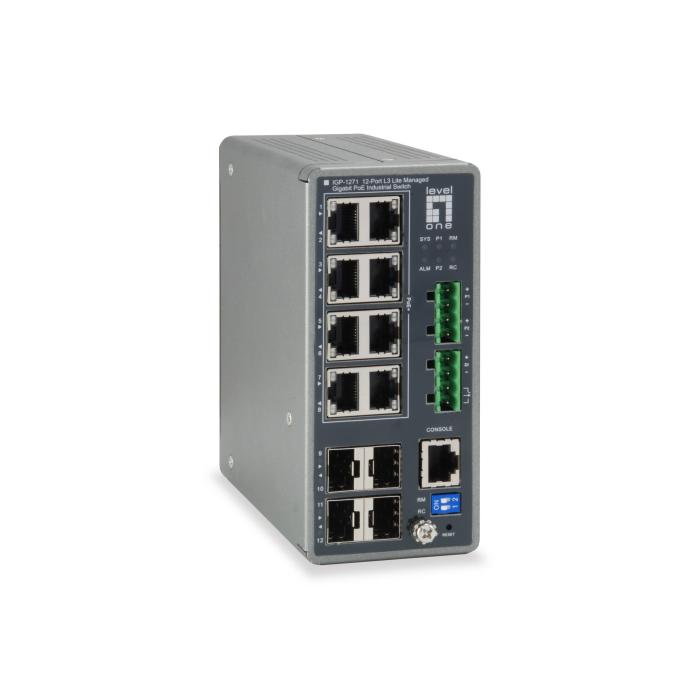

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
More info
Brand: LEVELONE
1,020.18 €
843.12 €
without VAT
Stock available: 2 units.
Get it
on the
September 22
/
September 23
SKU:
118831
PRC:
313871
EAN:
4015867202654
PN:
IGP-1271
Description
The managed LevelOne IGP-1271 switch, in grey, integrates 16 RJ-45 Gigabit Ethernet ports (10/100/1000) with PoE support and 4 SFP slots for fibre links, offering L3 layer capabilities that allow network traffic management with advanced functions such as VLAN by IP subnet, MAC or protocol, as well as quality of service (QoS) and event logging. This managed model incorporates storm control, cable length detection, port mirroring, spanning tree protocol and link aggregation to optimise network redundancy and performance. Its RJ-45 console port facilitates initial configuration, while compatibility with Ethernet Ring Protection Switching (ERPS) helps maintain availability in ring topologies.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3
- 10G support: No
- Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Cable length detection: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
Data transmission
- Switching capacity: 24 Gbit/s
- Forwarding rate: 17.856 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 0.5 MB
Security
- DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- Root protection: Yes
- BPDU tunneling: Yes
Protocols
- Management protocols: SNMP, Web, Telnet, SSH
- Supported network protocols: IPv4/IPv6
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Product colour: Grey
- Reset button: Yes
- LED indicators: Alarm, Power, Ring, Status, System
- International Protection (IP) code: IP30
- DIN rail mounting: Yes
- Safety: UL, CB
Performance
- Internal memory: 128 MB
- Flash memory: 32 MB
- Firmware upgradeable: Yes
- Telnet: Yes
- sFlow: Yes
- Mean time between failures (MTBF): 476206 h
Power
- Redundant power supply (RPS) support: Yes
- DC input voltage: 48 - 57 V
- Power consumption (max): 239.2 W
- Power protection features: Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 816.18 BTU/h
Weight & dimensions
- Width: 62 mm
- Depth: 130 mm
- Height: 135 mm
- Weight: 700 g
Packaging content
- Cables included: LAN (RJ-45)
- Quick start guide: Yes
- Manual: Yes
Packaging data
- Resource CD: Yes
- Package width: 255 mm
- Package depth: 207 mm
- Package height: 85 mm
- Package weight: 900 g
Certificates
- Certification: RoHS FCC,CE EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6
Logistics data
- Country of origin: Taiwan
- Master (outer) case width: 520 mm
- Master (outer) case length: 445 mm
- Master (outer) case height: 220 mm
- Harmonized System (HS) code: 85176990
- Master (outer) case gross weight: 2.4 kg
- Products per master (outer) case: 10 pc(s)
