Description
The LevelOne GTP-5271 managed switch is an L3 layer device with 48 Gigabit Ethernet ports (10/100/1000) and 4 SFP+ module slots, designed for the deployment of backbone and aggregation networks in professional environments. It includes an RJ-45 console port and configuration of location settings via CLI, as well as ARP inspection and Quality of Service (QoS) support. Its management allows rate limiting, enabling the spanning tree protocol and applying link aggregation, with 10G support on the SFP+ slots. In the segmentation section, it supports virtual LAN functions based on MAC, port, protocol, tagging, VLAN identifier and Voice VLAN, up to a total of 4096 VLANs, and implements selective QinQ tunnelling. It features an AC-in power connector and dimensions of 440 x 44.5 x 330 mm (width x height x depth), with a weight of 4.52 kg and a grey colour.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 48
- SFP+ module slots quantity: 4
- Console port: RJ-45

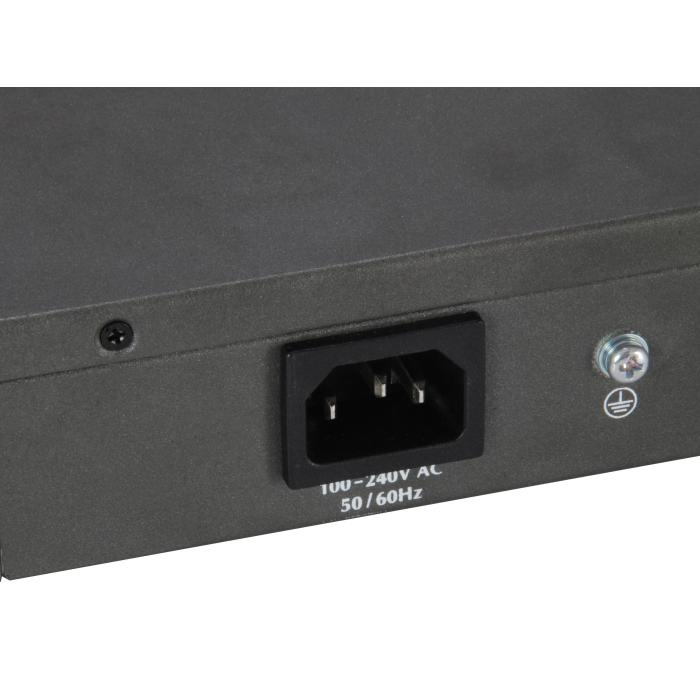

- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3a
- 10G support: Yes
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Network virtualization technologies: Q-in-Q tunneling
- QinQ implementation: Selective QinQ
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
- Number of VLANs: 4096
Data transmission
- Forwarding rate: 130.944 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 512 MB
Security
- DHCP features: DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- IGMP proxy: Yes
- Security algorithms: SNMPv3
- SSH/SSL support: Yes
- Authentication: Guest VLAN, Web-based authentication
- Password protection: Yes
- DoS attack prevention: Yes
- Authentication type: RADIUS
- Queue scheduling algorithms: Priority queuing (PQ), Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 & IPv6 features: IPv6 Telnet
Design
- Rack mounting: Yes
- Product colour: Grey
- Housing material: Metal
- Reset button: Yes
- LED indicators: Link, PoE, Power
Performance
- Internal memory: 32 MB
- Firmware upgradeable: Yes
- Telnet: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 6 A
- Power consumption (max): 473.7 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 48
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 400 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 330 mm
- Height: 44.5 mm
- Weight: 4.52 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Rubber feet: Yes
- Package width: 596 mm
- Package depth: 390 mm
- Package height: 80 mm
- Package weight: 6 kg
Certificates
- Compliance certificates: RoHS
- Certification: CE
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
