Description

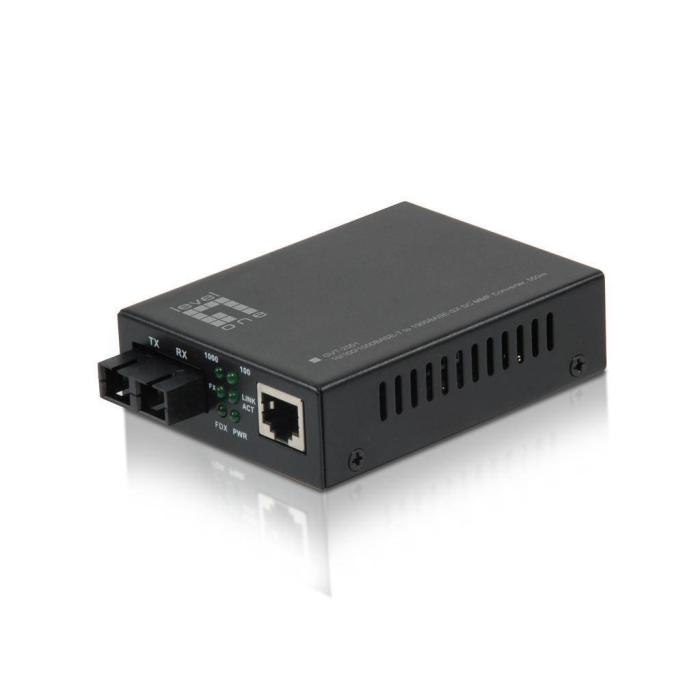

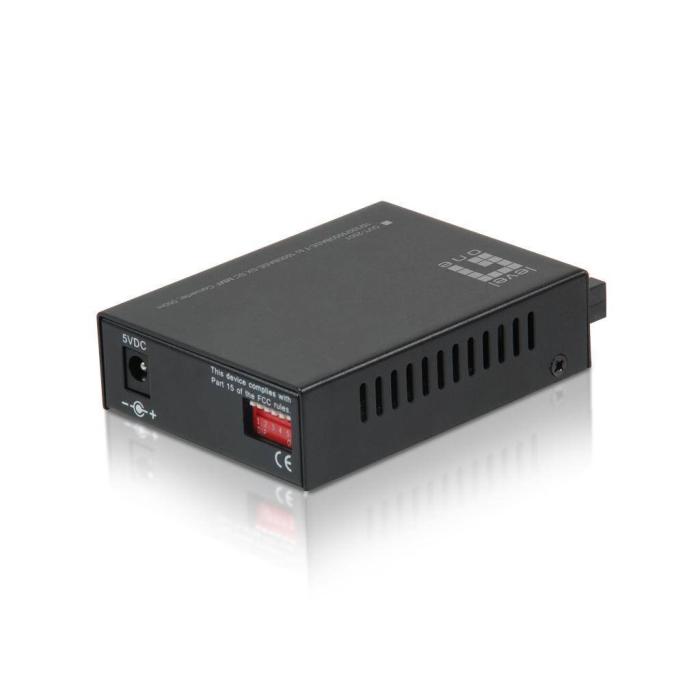

LevelOne RJ45 to SC Gigabit Media Converter, Multi-Mode Fiber, 550m, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
- Converter output interface: 1000Base-LX, 1000Base-SX
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Duplex system: Full
- Link Loss Carry Forward (LLCF) supported: Yes
- Link Loss Return (LLR) supported: Yes
- Cable types supported: Cat5, Cat5e
Performance
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Fiber mode structure: Multi-mode
Features
- Internal: No
- LED indicators: Activity, Link, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
- DC-in jack: Yes
Power
- Input voltage: 5 - 12 V
- Input current: 2 A
Weight & dimensions
- Width: 94 mm
- Depth: 70 mm
- Height: 25 mm
- Weight: 420 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 5 - 90%
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 235 mm
- Package depth: 125 mm
- Package height: 55 mm
- Package weight: 530 g
- Package type: Box
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
