Description

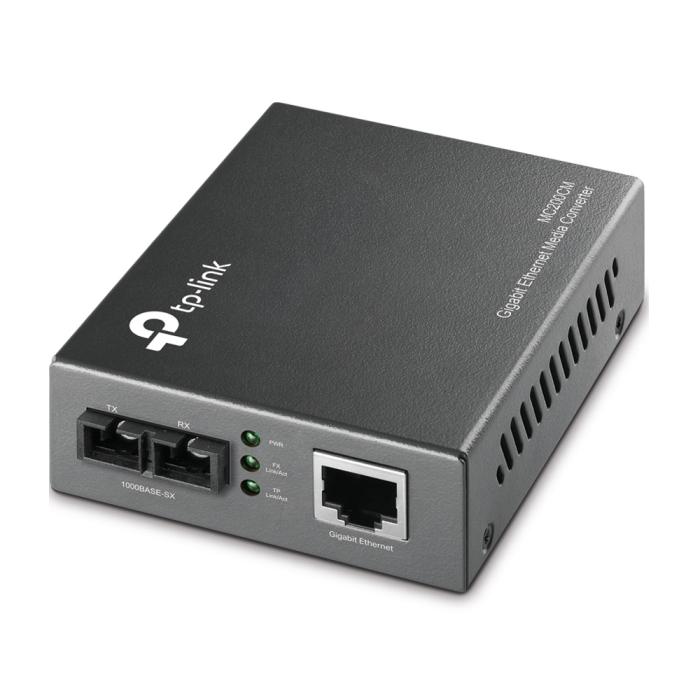

The TP-Link MC200CM V3 is a black internal media converter that transforms an Ethernet connection into fibre optic. It works with Gigabit Ethernet and reaches a maximum data transfer speed of 1000 Mbit/s, complying with the IEEE 802.3ab, IEEE 802.3x and IEEE 802.3z network standards. Its interface combines an RJ-45 Ethernet LAN port with a fibre channel port with SC connector, and supports Cat6 cable types. The fibre technology it uses is multimode, with a wavelength of 850 nm and a maximum transfer distance of 550 m over 1000BASE-FX and 1000BASE-SX. It incorporates Auto MDI/MDI-X for connection and offers wired connectivity. Its activity and link LED indicators show the status of the device. It consumes 5.5 W and has dimensions of 94.5 x 27 x 73 mm (width x height x depth), designed for internal mounting.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 1000 Mbit/s
- Fiber ethernet cabling technology: 1000BASE-FX, 1000BASE‑SX
- Auto MDI/MDI-X: Yes
- Cable types supported: Cat6
Performance
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Fiber mode structure: Multi-mode
Features
- Internal: Yes
- LED indicators: Activity, Link
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power
- Power consumption (typical): 5.5 W
Weight & dimensions
- Width: 94.5 mm
- Depth: 73 mm
- Height: 27 mm
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Packaging data
- Package width: 165 mm
- Package depth: 204 mm
- Package height: 65 mm
- Package weight: 440 g
Certificates
- Compliance certificates: RoHS
- Certification: FCC, CE
