Description

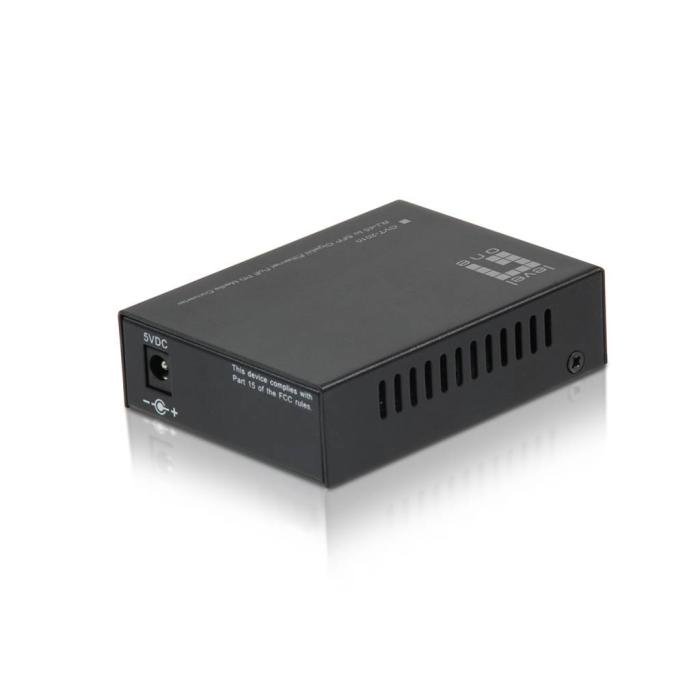

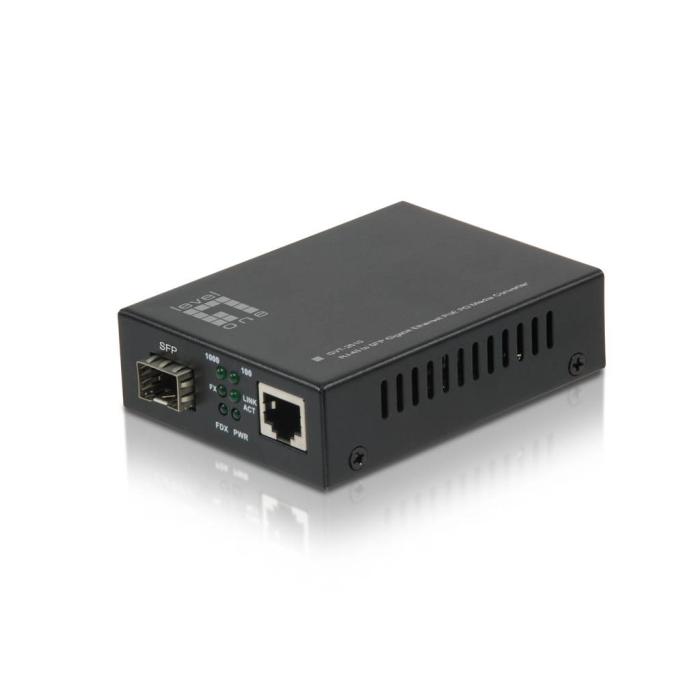

The LevelOne GVT-2010 media converter, in a black finish, converts copper signals to fibre optic via its SFP port, with transfer speeds of 10, 100 and 1000 Mbit/s. It supports jumbo frames of up to 9000 bytes, VLAN and flow control, as well as automatic MDI/MDI-X detection to simplify connection. Its web management allows network parameters to be adjusted, while LED indicators show the status of activity, link, FDX and power. Compatible with IEEE 802.3 standards and variants, as well as 100BASE-TX and 1000BASE-T copper cabling, and 1000BASE-LX and SX fibre, it is designed to maintain reliable performance, with a mean time between failures of 30,000 hours.
Specifications
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
- Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Flow control support: Yes
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Store-and-forward: Yes
- Duplex system: Full, Half
Performance
- Mean time between failures (MTBF): 30000 h
Features
- Internal: No
- Web-based management: Yes
- LED indicators: Activity, FDX, Link, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SFP
- Power over Ethernet plus (PoE+) ports quantity: 1
Power
- Input voltage: 90 - 264 V
- Output voltage: 5 V
- Output current: 2 A
Weight & dimensions
- Width: 94 mm
- Depth: 71 mm
- Height: 26 mm
- Weight: 220 g
Operational conditions
- Operating temperature (T-T): -10 - 60 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 90%
Packaging content
- Manual: Yes
Packaging data
- Package width: 120 mm
- Package depth: 55 mm
- Package height: 235 mm
- Package weight: 430 g
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
