Description

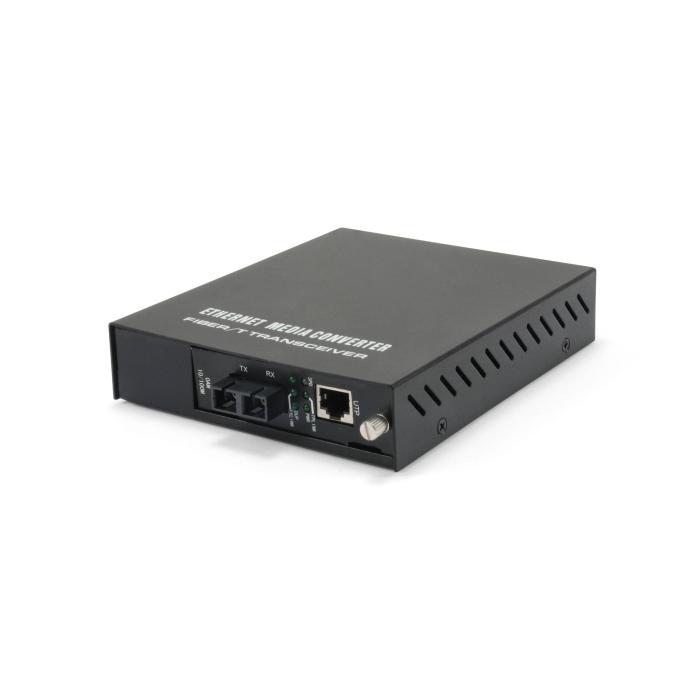

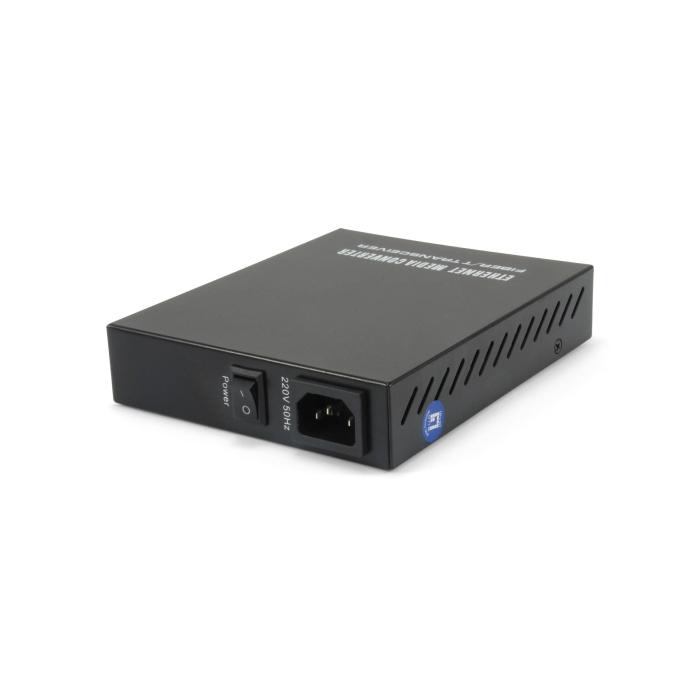

The LevelOne FVM-1101 is a Fast Ethernet media converter that transforms a copper connection into fibre optic. It works with the IEEE 802.3, IEEE 802.3ah, IEEE 802.3u and IEEE 802.3x standards and reaches a maximum transfer speed of 100 Mbit/s, with support for 10 and 100 Mbit/s. Its input interface supports 10Base-T and 100Base-TX, while the output offers 100Base-FX with a wavelength of 1310 nm and a maximum transfer distance of 2000 m. It incorporates store and forward, flow control, full and half duplex system, VLAN support and 9000 Jumbo frames, as well as web-based management and LED indicators for activity, FDX, link and power. This black media converter measures 127 x 32 x 156 mm (width x height x depth) and weighs 720 g.
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100Base-TX
- Converter output interface: 100Base-FX
- Networking standards: IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Flow control support: Yes
- VLAN support: Yes
- Store-and-forward: Yes
- Duplex system: Full, Half
Performance
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
Features
- Web-based management: Yes
- LED indicators: Activity, FDX, Link, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: LC, SC, ST
Power
- Input voltage: 100 - 240 V
- Output voltage: 5 V
- Output current: 2 A
Weight & dimensions
- Width: 127 mm
- Depth: 156 mm
- Height: 32 mm
- Weight: 720 g
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 5 - 90%
Packaging data
- Package width: 185 mm
- Package depth: 275 mm
- Package height: 62 mm
- Package weight: 880 g
- Package type: Box
Certificates
- Compliance certificates: RoHS
- Certification: FCC, CE
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 360 mm
- Master (outer) case length: 480 mm
- Master (outer) case height: 390 mm
- Master (outer) case gross weight: 17.5 kg
- Products per master (outer) case: 17 pc(s)
