Description

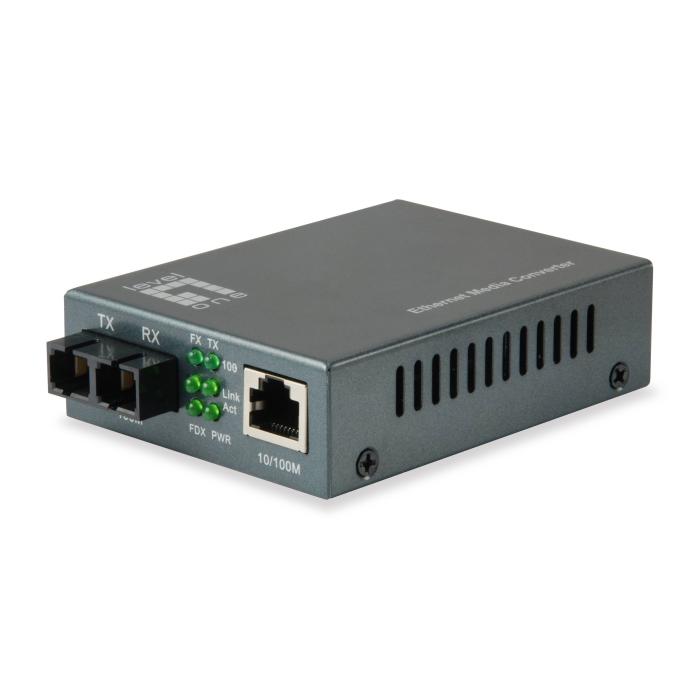

Converts Ethernet network signals to fibre optic with the LevelOne FVT-1104, a black media converter that operates at 10 and 100 Mbit/s. It features a 10Base-T and 100Base-TX input interface, and a 100Base-FX output interface over single-mode fibre with a wavelength of 1310 nm. It supports fibre diameters of 50/125 and 62.5/125 µm and reaches a maximum transfer distance of 60,000 m. It incorporates auto-negotiation, auto MDI/MDI-X and flow control, as well as operating in full-duplex mode and store-and-forward. It complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards, with a mean time between failures of 100,000 h. Its dimensions are 94 x 26 x 71 mm (width x height x depth) and its weight is 200 g, which facilitates installation in tight spaces.
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100Base-TX
- Converter output interface: 100Base-FX
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Fiber ethernet cabling technology: 100BASE-FX
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Duplex system: Full
Performance
- Maximum transfer distance: 60000 m
- Wavelength: 1310 nm
- Fiber mode structure: Single-mode
- Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
- Mean time between failures (MTBF): 100000 h
Features
- Internal: No
- LED indicators: Yes
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC

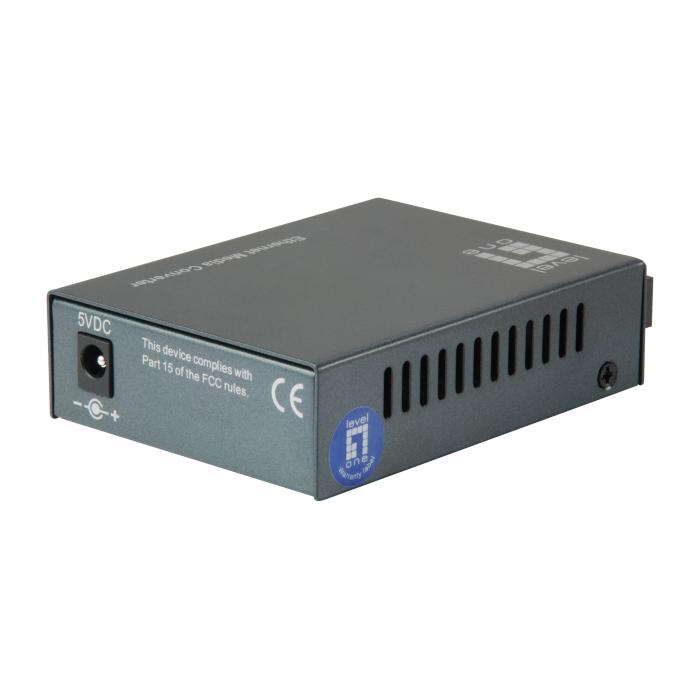

- DC-in jack: Yes
Power
- Input voltage: 5 V
- Input current: 1 A
Weight & dimensions
- Width: 94 mm
- Depth: 71 mm
- Height: 26 mm
- Weight: 200 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 230 mm
- Package depth: 150 mm
- Package height: 58 mm
- Package weight: 300 g
- Package type: Box
Certificates
- Compliance certificates: RoHS
- Certification: CE
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 440 mm
- Master (outer) case length: 420 mm
- Master (outer) case height: 305 mm
- Master (outer) case gross weight: 32 kg
- Products per master (outer) case: 40 pc(s)
