Description

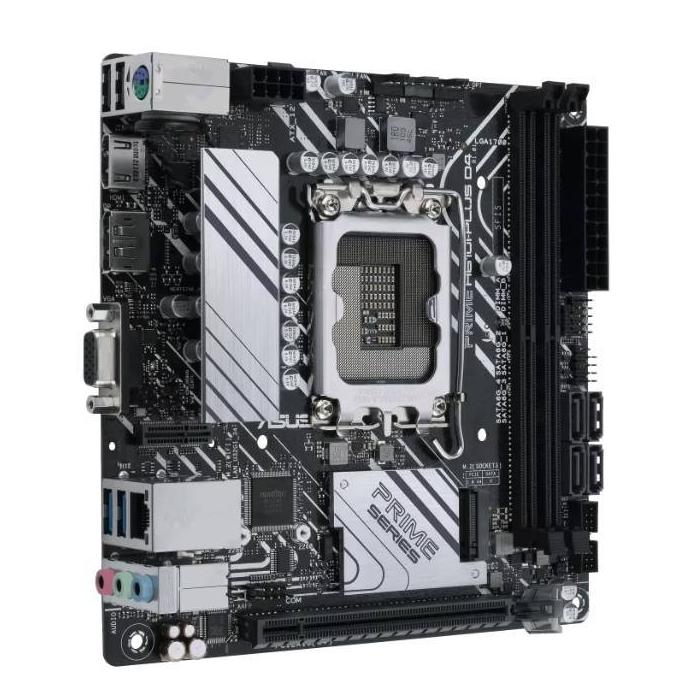

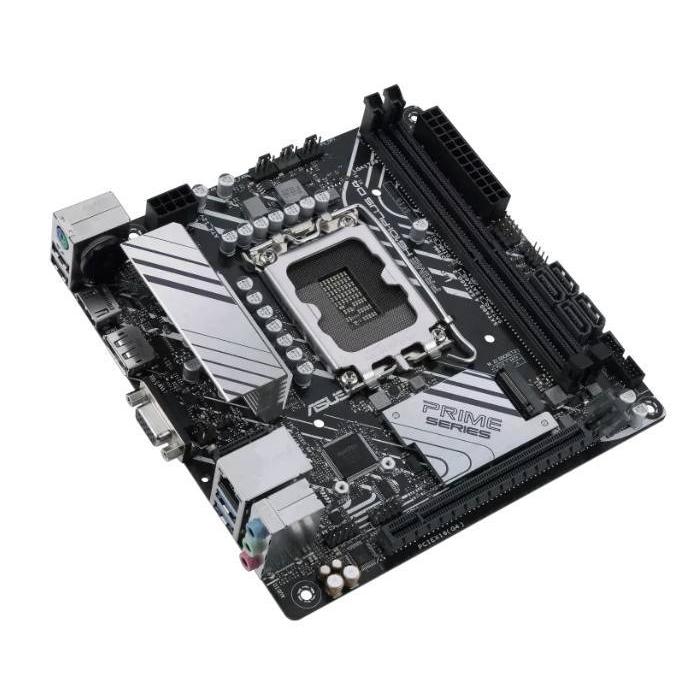

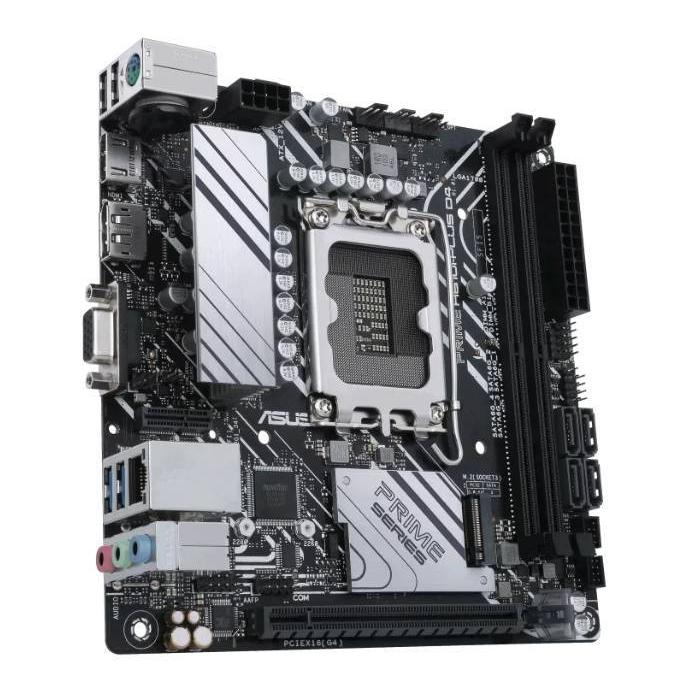

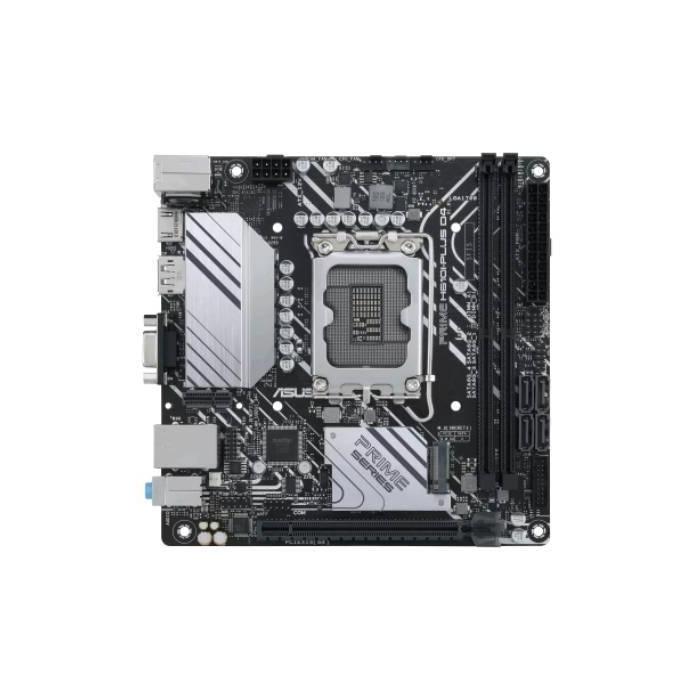

ASUS PRIME H610I-PLUS D4-CSM mini ITX motherboard with LGA 1700 socket for Intel processors, from Celeron to Core i9, and support for up to 64 GB of DDR4 memory across its two DIMM slots, with speeds from 2133 to 3200 MHz in dual-channel mode. This H610 chipset variant includes storage connectivity via M.2 and SATA III for hard drives and SSDs, plus a front panel audio header and an 8-pin EPS connector for CPU power. The compact design of this board facilitates integration into small-form-factor systems, maintaining compatibility with current mainstream Intel processors and a basic cooling setup with a single chassis fan header.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- Supported processor sockets: LGA 1700
- Maximum internal memory supported by processor: 64 GB
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
Internal I/O
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- Power fan connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1

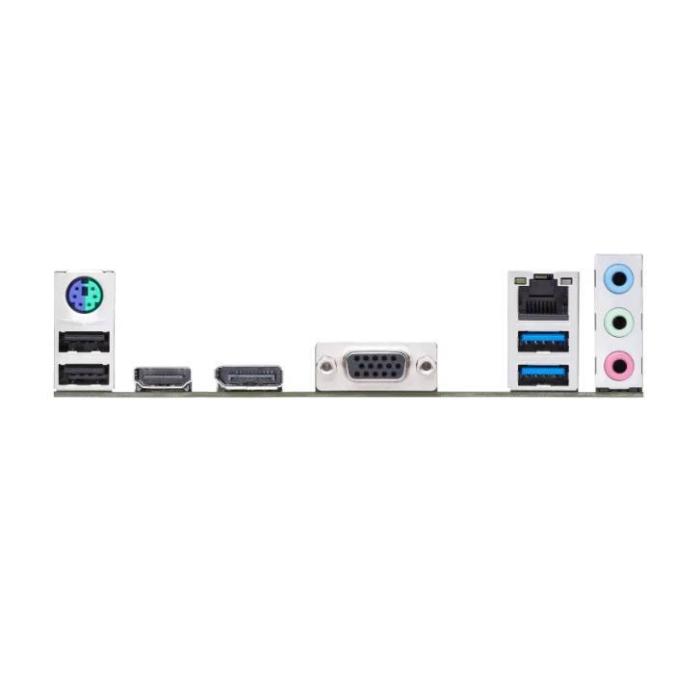

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 2
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel H610
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
- Compatible operating systems: Windows® 11 64-bit, Windows® 10 64-bit
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
Logistics data
- Harmonized System (HS) code: 84733020
Packaging data
- Package width: 226 mm
- Package depth: 182 mm
- Package height: 60 mm
Weight & dimensions
- Width: 170.2 mm
- Depth: 170.2 mm
- Height: 71 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 382 g
