Description

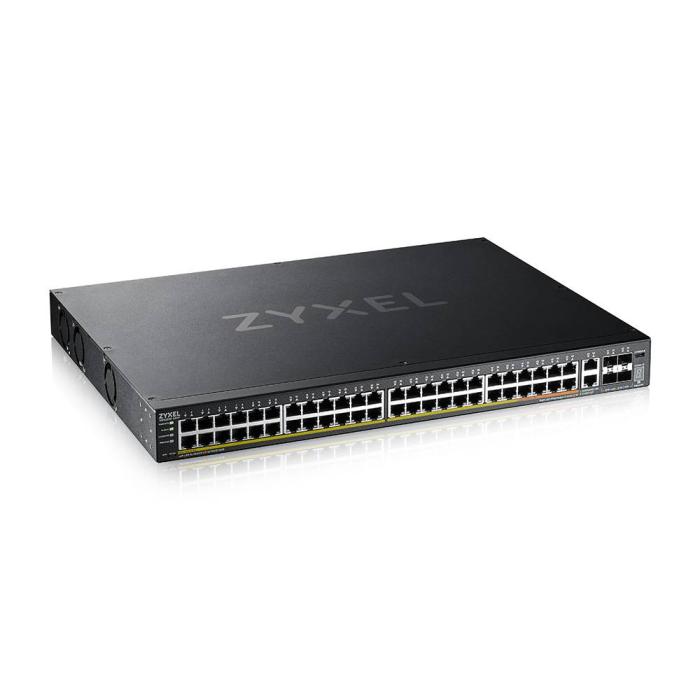

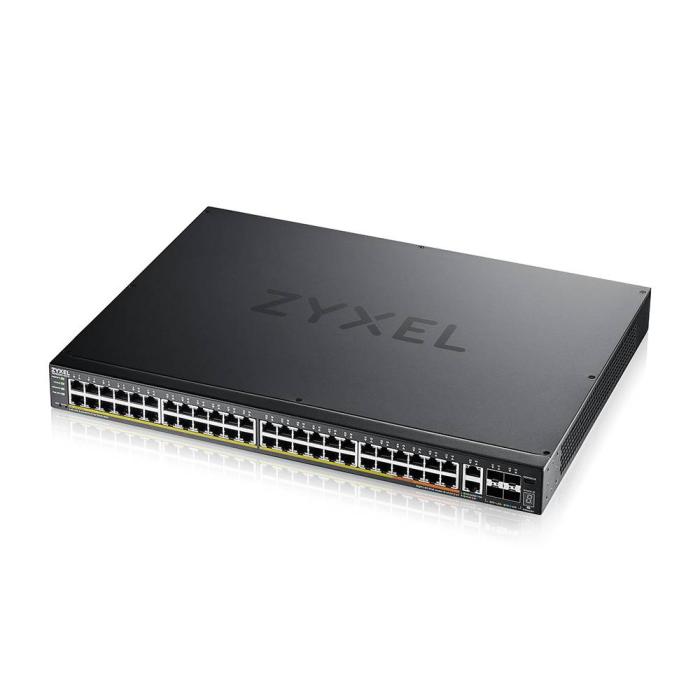

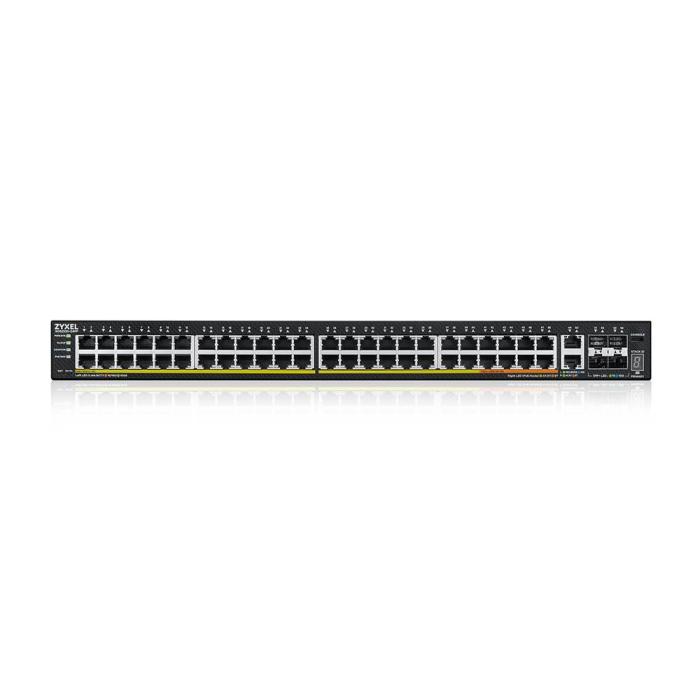

The stackable switch Zyxel XGS2220-54FP, a managed L3 model with 48 Gigabit Ethernet RJ-45 ports and integrated PoE power supply, also incorporates two 10G copper ports and four SFP+ modules for high-speed links. Its switching capacity reaches 216 Gbit/s and offers a forwarding rate of 161 Mpps, with a MAC address table of 32,000 entries and support for jumbo frames. It includes advanced features such as ARP inspection, quality of service (QoS), routing of up to 64 entries and 10G support, as well as IEEE 802.1x authentication, RADIUS and TACACS+. It also provides DHCP relay and DHCP server features, in addition to IGMP for multicast, with a packet buffer of 2 MB.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 10G Ethernet (copper) ports quantity: 2
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE
- 10G support: Yes
- Routing entries: 64
Data transmission
- Switching capacity: 216 Gbit/s
- Forwarding rate: 161 Mpps
- MAC address table: 32000 entries
- Jumbo frames support: Yes
- Packet buffer memory: 2 MB
Security
- DHCP features: DHCP relay, DHCP server
- IGMP snooping: Yes
- IGMP proxy: Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
Multicast features
- Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
Performance
- Internal memory: 1024 MB
- Flash memory: 64 MB
- Mean time between failures (MTBF): 298.735 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 1161.6 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 50
- Total Power over Ethernet (PoE) budget: 960 W
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 195.43 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 5 kg
