Description

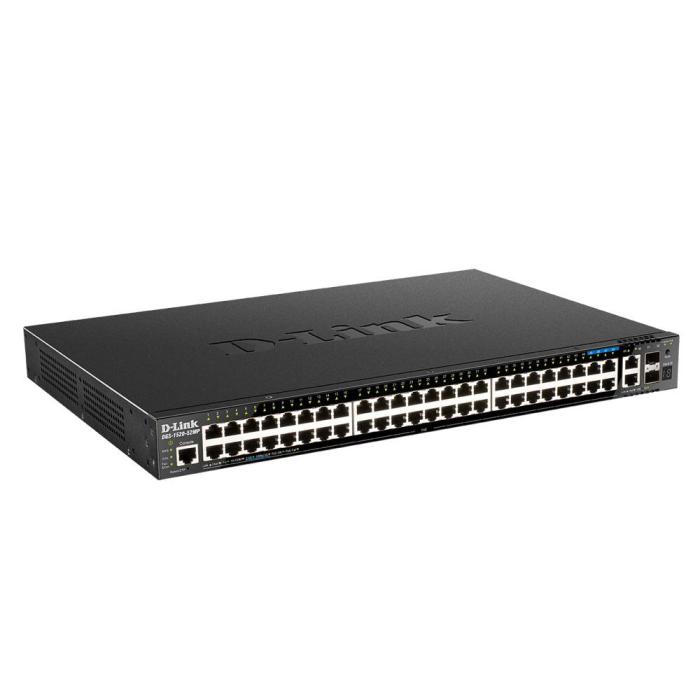

The D-Link DGS-1520-52MP managed switch is an L3 layer device with 44 Gigabit Ethernet RJ-45 ports, 4 2.5G ports and 2 10G copper ports, plus 2 SFP+ slots for optical fibre and 2 fibre channel ports. Its 1U form factor, weighing 4.8 kg and black in colour, is designed to be rack-mounted within demanding network infrastructures. It supports web-based management, which makes configuration and traffic monitoring easier. It includes VLAN support, flow control, link aggregation and spanning tree protocol to segment the network and prevent loops. It also offers auto MDI/MDI-X and head-of-line blocking, useful when traffic is concentrated on a single port. Its forwarding rate of 139.88 Mpps supports switching between the different connected segments, both over copper and fibre.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 44
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 2.5G Ethernet (copper) ports quantity: 4
- 10G Ethernet (copper) ports quantity: 2
- SFP+ module slots quantity: 2
- Fiber ports quantity: 2
- Fiber optic connector: SFP+
Network
- 10G support: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 188 Gbit/s
- Forwarding rate: 139.88 Mpps
- MAC address table: 16384 entries
- Store-and-forward: Yes
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 12288
Security
- IGMP snooping: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
Multicast features
- Multicast Listener Discovery (MLD) snooping: v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Routing protocols: OSPF, RIP, RIPng, VRRP
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
Performance
- Physical stacking (units): 8
- Virtual stacking (units): 32
- Noise level: 56.7 dB
- Mean time between failures (MTBF): 328174 h
Power
- AC input voltage: 100 - 240 V
- Power consumption (max): 459.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 44
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Heat dissipation: 1635.1 BTU/h
Weight & dimensions
- Weight: 4.8 kg
