Description

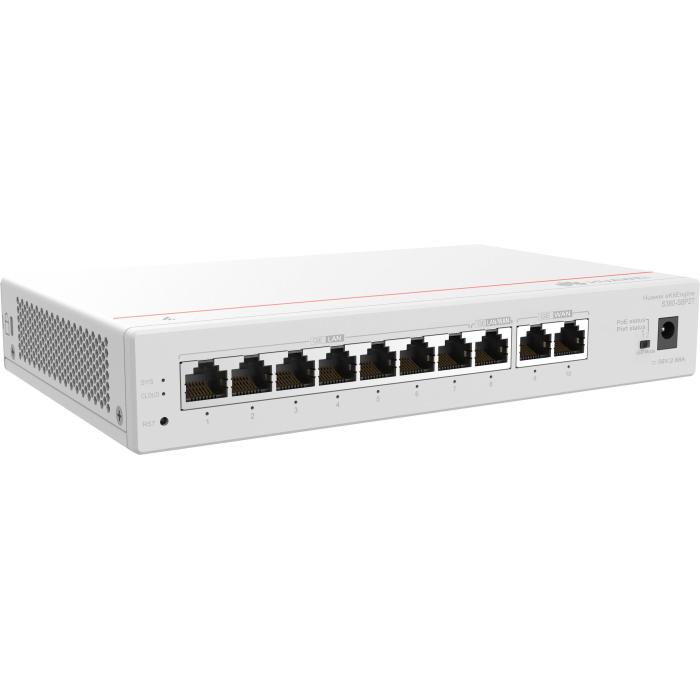

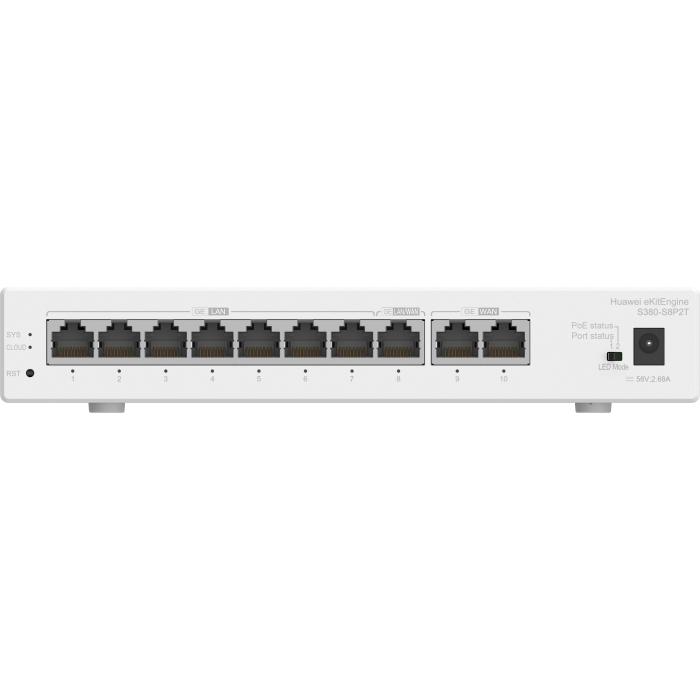

The HUAWEI eKit S380-S8P2T managed switch comes in grey with a 1U form factor, designed for rack mounting. It features 8 auto-negotiating Gigabit Ethernet (10/100/1000) RJ-45 ports, making it easy to integrate into mixed networks without manual adjustments. Its switching capacity reaches 16 Gbit/s and it supports Jumbo Frames, as well as a MAC address table of 2000 entries. At the network level, it supports up to 16 VLANs and offers both DHCP server and client functions, along with static routing. Management is carried out via web, which simplifies configuration and traffic monitoring. Its LED indicators allow you to check the status of the ports and the device activity at a glance. With dimensions of 210 x 35 x 130 mm (width x height x depth), its maximum power consumption is 145.8 W. It is a suitable option for deploying a segmented and manageable wired network in professional environments.
Specifications
Management features
- Switch type: Managed
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- VLAN support: Yes
- Number of VLANs: 16
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 2000 entries
- Static route: Yes
- Jumbo frames support: Yes
Security
- DHCP features: DHCP server, DHCP client
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Grey
- LED indicators: Yes
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 145.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 124 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 5000 m
- Non-operating altitude: 0 - 5000 m
Weight & dimensions
- Width: 210 mm
- Depth: 130 mm
- Height: 35 mm
Packaging data
- Package weight: 700 g
