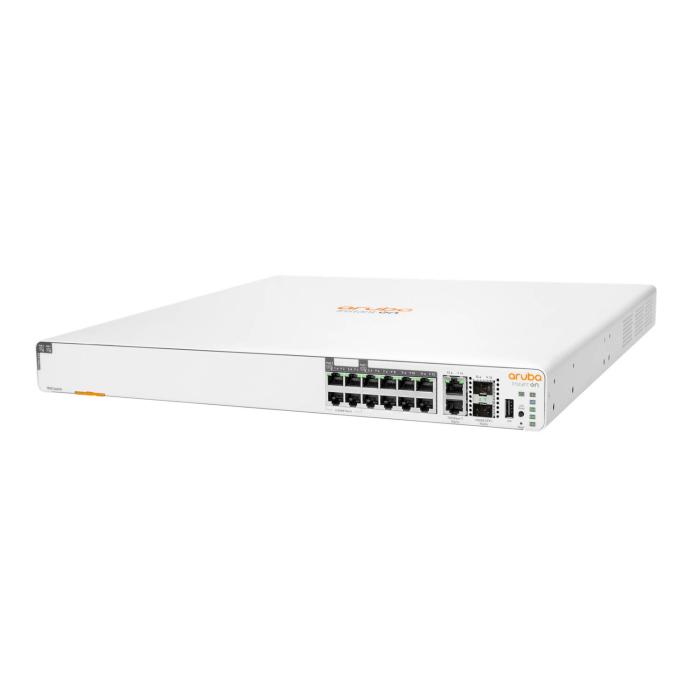

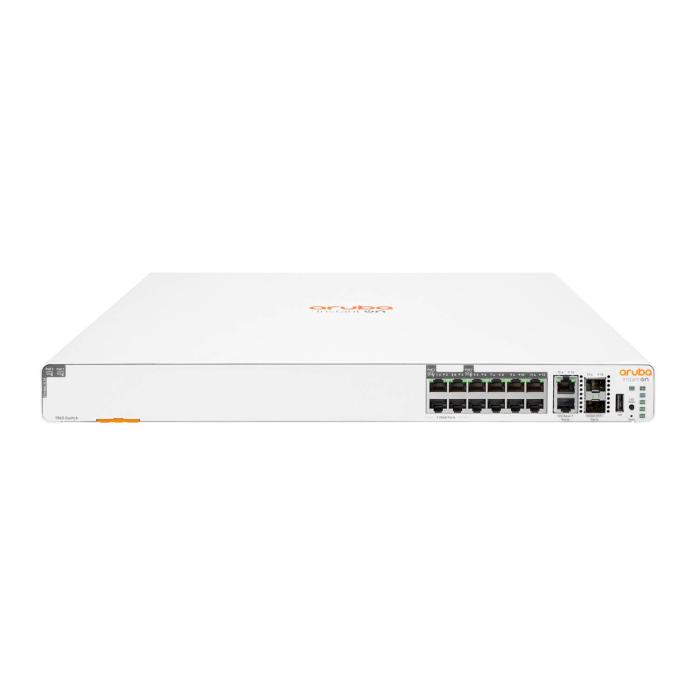

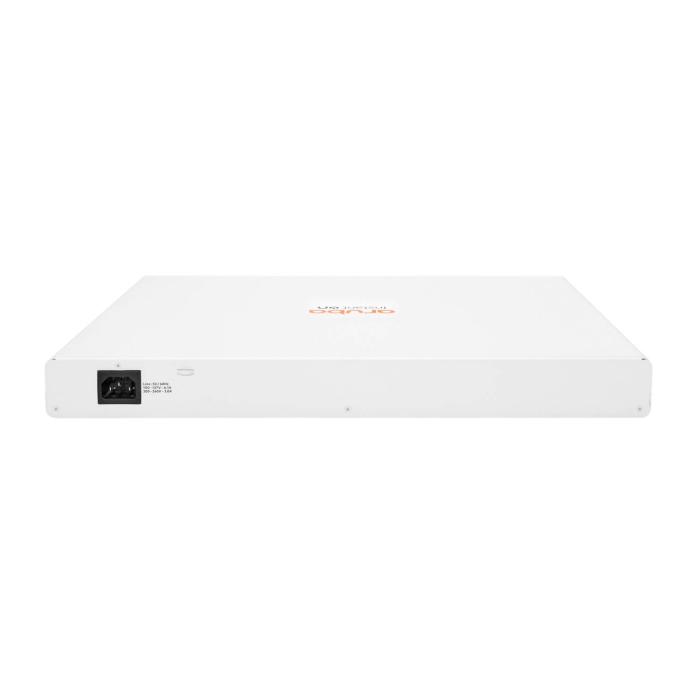

HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

$805.54
$805.54 without VAT

HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U, Wall mountable.   More info

Brand: HEWLETT PACKARD ENTERPRISE
SKU: 115101 PRC: 470719 EAN: 190017628400 PN: s0f35a#abb

Description

HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U, Wall mountable

Specifications

Management features

  • Switch type: Managed
  • Web-based management: Yes
  • Cloud-managed: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • 2.5G Ethernet (copper) ports quantity: 4
  • SFP+ module slots quantity: 2

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Auto-sensing: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes

Data transmission

  • Switching capacity: 116 Gbit/s
  • Throughput: 172 Mpps
  • MAC address table: 16000 entries
  • Latency (10-100 Mbps): 4.1 µs
  • Latency (1 Gbps): 1.8 µs
  • Latency (10 Gbps): 2.8 µs
  • Jumbo frames support: Yes
  • Packet buffer memory: 1.5 MB

Security

  • DHCP features: DHCP relay, DHCP snooping
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Authentication: Port-based authentication
  • Authentication type: RADIUS

Protocols

  • Management protocols: SNMPv1, SNMPv2c, SNMPv3
  • Supported network protocols: HTTPS

Design

  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Wall mountable: Yes

Performance

  • Physical stacking (units): 4
  • Built-in processor: Yes
  • Processor model: ARM Cortex-A9
  • Processor frequency: 800 MHz
  • Memory type: DDR3-SDRAM
  • Internal memory: 1024 MB
  • Flash memory: 512 MB

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 790 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Total Power over Ethernet (PoE) budget: 480 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 15 - 95%
  • Storage relative humidity (H-H): 15 - 90%
  • Operating altitude: 0 - 3000 m

Weight & dimensions

  • Width: 443 mm
  • Depth: 350 mm
  • Height: 43.9 mm
  • Weight: 5.24 kg
