Hewlett Packard Enterprise Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) White 1U
Hewlett Packard Enterprise Aruba Instant On 1930, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
476.28 €Stock available: 0 units.
Unavailable
SKU:
84817
PRC:
290363
EAN:
190017356112
PN:
jl685a#abb
Description

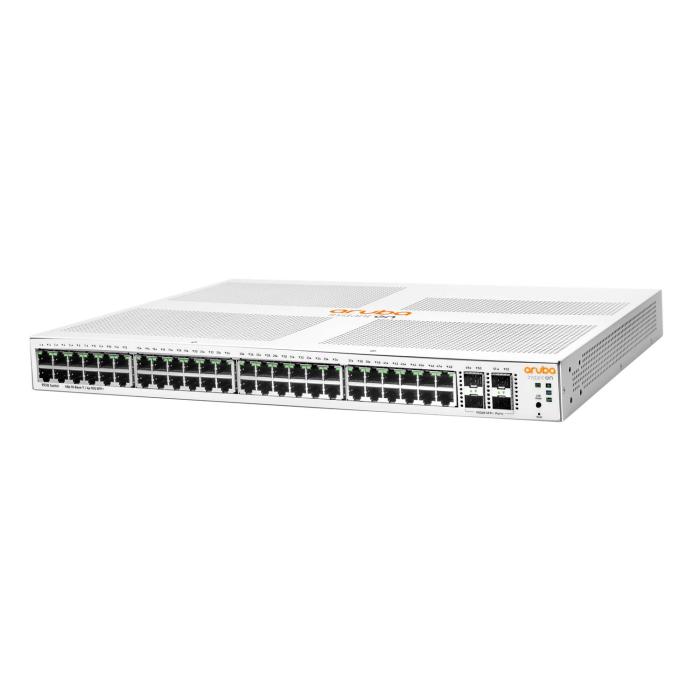

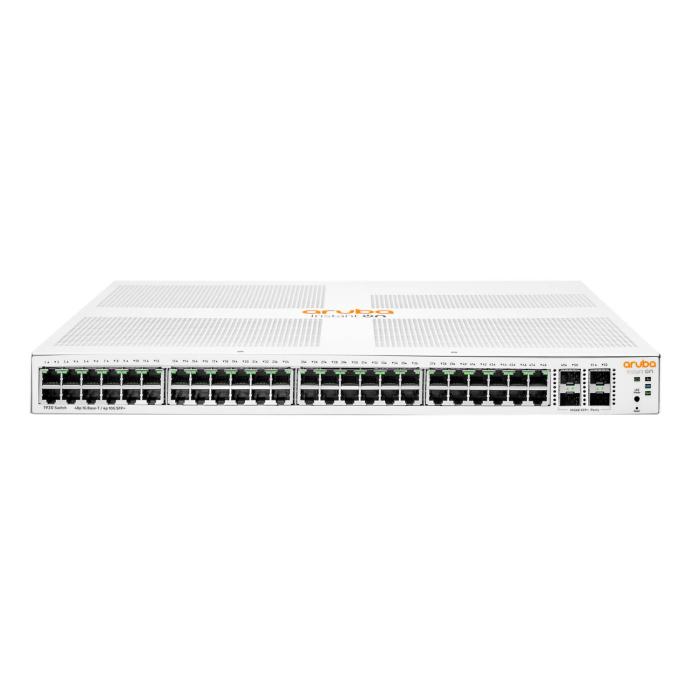

White managed switch combining 48 Gigabit Ethernet (10/100/1000) ports with 4 slots for SFP+ modules, designed to serve office networks with a good number of connected devices. Its L2+ layer and web-based management allow the network to be configured from the browser without additional tools, and QoS support helps prioritise sensitive traffic. It includes functions such as port mirroring, rate limiting, link aggregation and auto MDI/MDI-X, as well as auto-detection and full duplex. The spanning tree protocol and 256 VLANs make it easy to segment the installation and prevent loops, with IEEE 802.1Q, 802.1p, 802.1x, 802.3, 802.3ab, 802.3x and 802.3z standards. It supports 10BASE-T, 100BASE-TX and 1000BASE-T cabling, and also 10G links. It has a 1U format with dimensions of 442.5 x 43.9 x 282.4 mm (width x height x depth) and a weight of 3.13 kg, suitable for rack mounting.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
Network
- Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 176 Gbit/s
- Throughput: 130.95 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 4.5 µs
- Latency (1 Gbps): 2.2 µs
- Latency (10 Gbps): 1.2 µs
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
- Product colour: White
Performance
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 36.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 95%
Weight & dimensions
- Width: 442.5 mm
- Depth: 282.4 mm
- Height: 43.9 mm
- Weight: 3.13 kg
