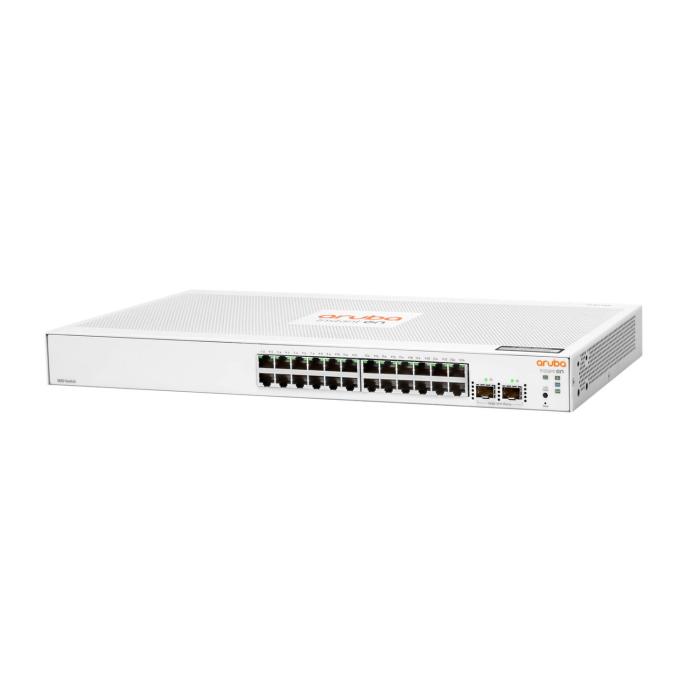

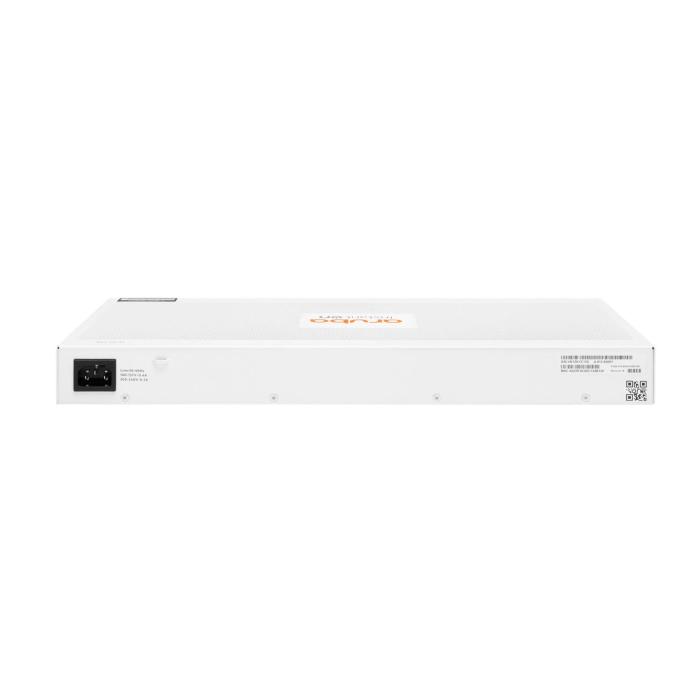

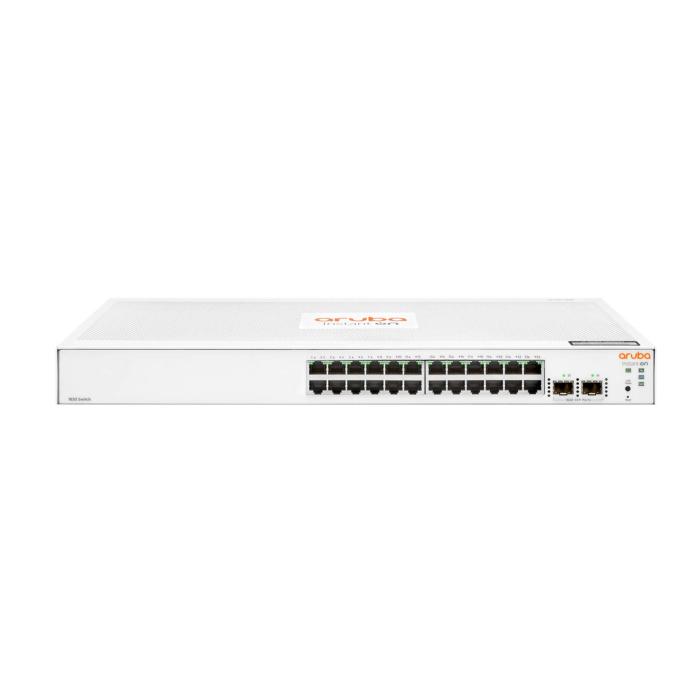

Hewlett Packard Enterprise Aruba Instant On 1830 24G 2SFP Managed L2 Gigabit Ethernet (10/100/1000) 1U
Hewlett Packard Enterprise Aruba Instant On 1830 24G 2SFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
171.50 €Stock available: 0 units.
Unavailable
SKU:
91309
PRC:
352897
EAN:
190017518893
PN:
jl812a#abb
Description
The Hewlett Packard Enterprise Aruba Instant On 1830 24G 2SFP managed switch is an L2 layer network device with 24 Gigabit Ethernet (10/100/1000) ports and 2 slots for SFP modules. It can be managed via the web or through the cloud, and includes quality of service (QoS) support to prioritise traffic. It offers advanced features such as VLAN support, port mirroring, link aggregation, auto MDI/MDI-X and auto-detection, as well as full duplex operation and spanning tree protocol. It includes flow control and has a latency of 2.8 µs at 1 Gbps. Weighing 2.49 kg and measuring 215.9 x 43.9 x 443 mm (width x height x depth), it comes in a 1U form factor for rack installation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3az,IEEE
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 52 Gbit/s
- Throughput: 38.68 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 5.2 µs
- Latency (1 Gbps): 2.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 7.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 95%
Weight & dimensions
- Width: 215.9 mm
- Depth: 443 mm
- Height: 43.9 mm
- Weight: 2.49 kg
