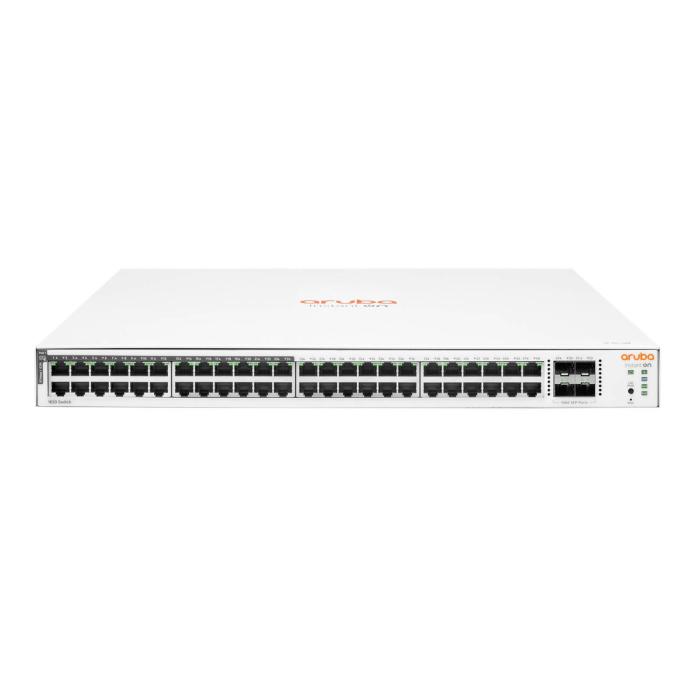

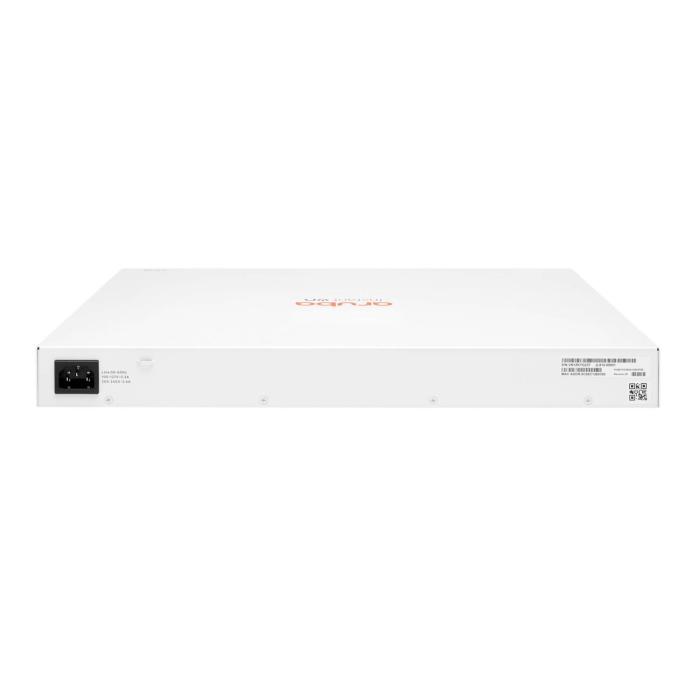

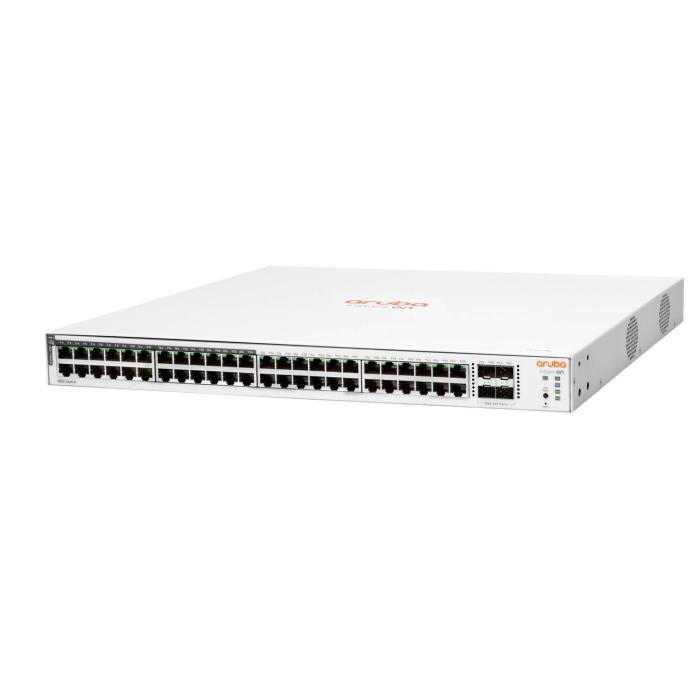

Hewlett Packard Enterprise Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Hewlett Packard Enterprise Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
677.18 €Stock available: 0 units.
Unavailable
SKU:
91928
PRC:
359828
EAN:
190017524429
PN:
jl815a
Description
The Aruba Instant On 1830 48G managed switch offers 48 Gigabit Ethernet (10/100/1000) ports and 4 slots for SFP modules, with an L2 layer and a throughput of 77.37 Mpps. It is a managed device that you can administer via the web or from the cloud, and it includes support for QoS and VLAN. The full duplex bidirectional connection relies on functions such as autosensing, Auto MDI/MDI-X and flow control, as well as link aggregation, port mirroring and the spanning tree protocol. Its 1U form factor fits into communications cabinets and it weighs 4.94 kg, with dimensions of 351 x 43.9 x 443 mm (width x height x depth).
Specifications
Management features
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 104 Gbit/s
- Throughput: 77.37 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 5.2 µs
- Latency (1 Gbps): 2.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 462.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 370 W
Weight & dimensions
- Width: 351 mm
- Depth: 443 mm
- Height: 43.9 mm
- Weight: 4.94 kg
