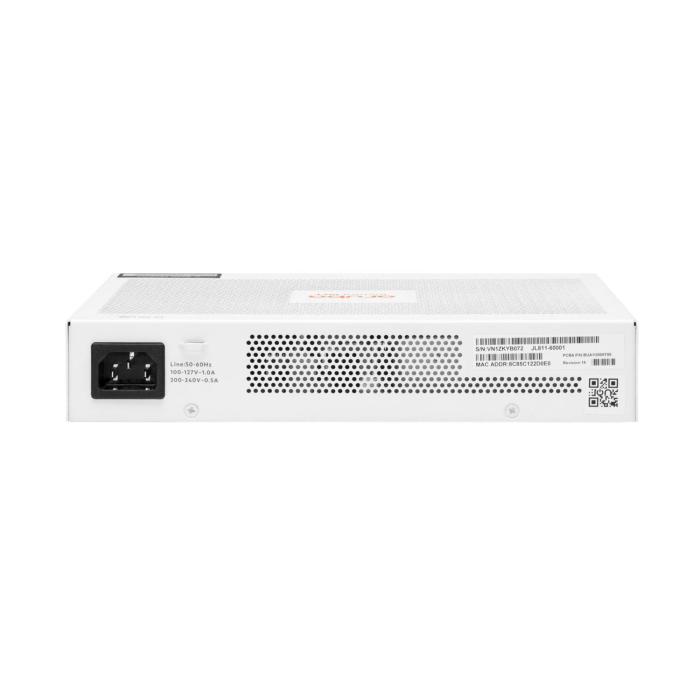

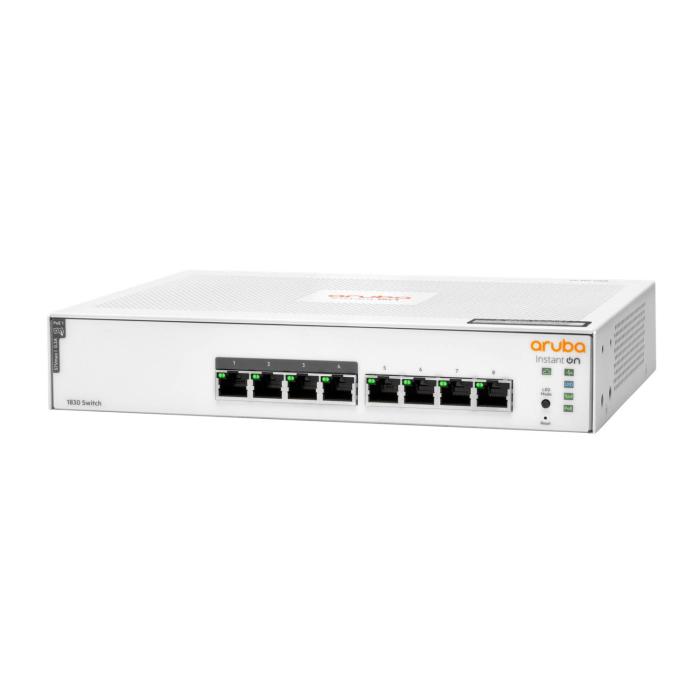

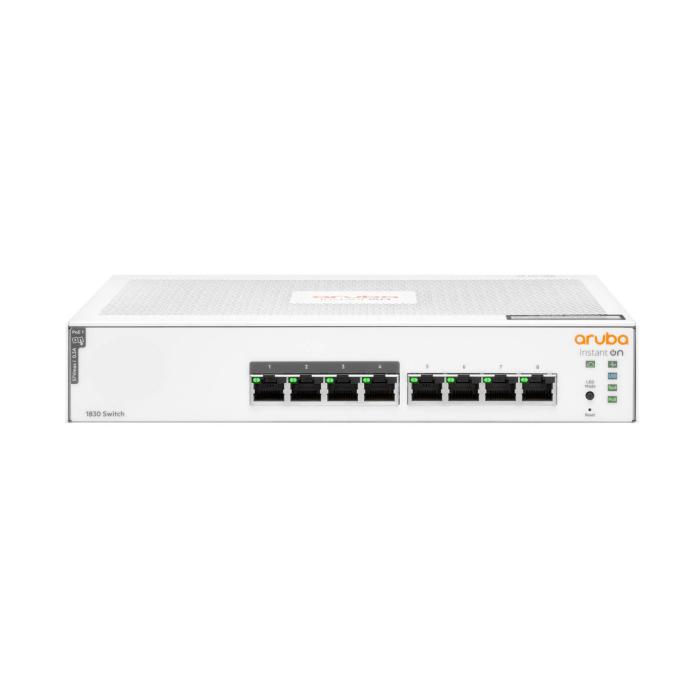

Hewlett Packard Enterprise Aruba Instant On 1830 8G 4p Class4 PoE 65W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Hewlett Packard Enterprise Aruba Instant On 1830 8G 4p Class4 PoE 65W, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
177.38 €Stock available: 0 units.
Unavailable
SKU:
90639
PRC:
346730
EAN:
190017524146
PN:
jl811a
Description
The Aruba Instant On 1830 8G 4p Class4 PoE 65W is a managed Layer 2 switch with 8 Gigabit Ethernet ports (10/100/1000) and cloud-based management. It includes Quality of Service (QoS) functions, VLAN support and flow control, as well as port mirroring and link aggregation to organise network traffic. Its switching capacity reaches 16 Gbit/s and it supports Jumbo Frames, full duplex, auto-sensing and auto MDI/MDI-X, which simplifies device connection. It also includes Spanning Tree Protocol. It is managed via web or from the cloud and is designed for small office or retail installations that need to segment and prioritise their network. It has a compact 1U form factor, with dimensions of 195.1 x 43.9 x 245.1 mm (width x height x depth) and a weight of 1.54 kg.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Throughput: 11.9 Mpps
- MAC address table: 8000 entries
- Latency (10-100 Mbps): 5.2 µs
- Latency (1 Gbps): 2.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 83.67 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 95%
Weight & dimensions
- Height: 43.9 mm
- Weight: 1.54 kg
- Width: 195.1 mm
- Depth: 245.1 mm
