Description

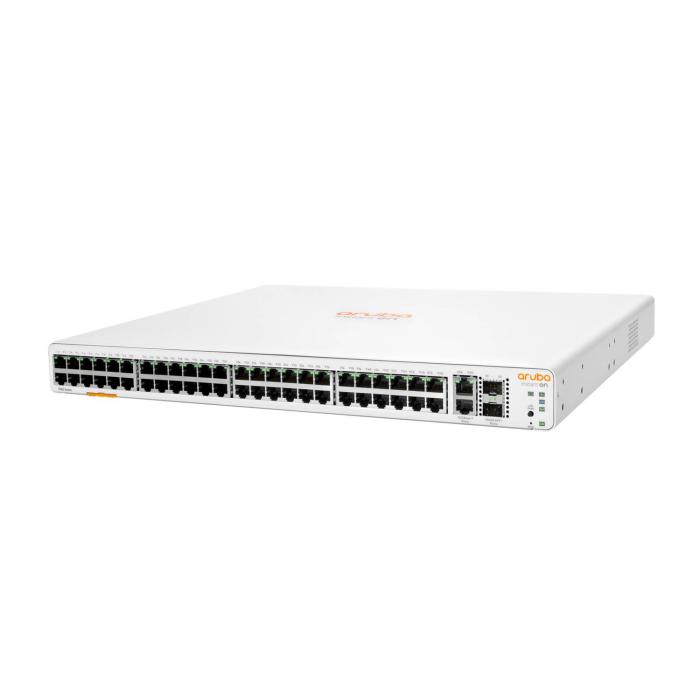

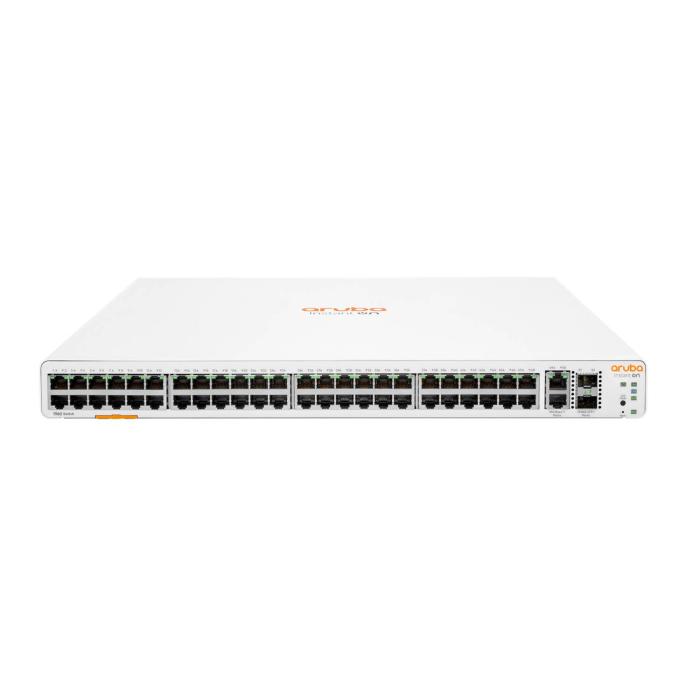

Aruba, a Hewlett Packard Enterprise company Aruba Instant On 1960 48G 2XGT 2SFP+, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Specifications

Management features


  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes

Ports & interfaces


  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 2

Network


  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Auto-sensing: Yes
  • VLAN support: Yes

Data transmission


  • Switching capacity: 176 Gbit/s
  • Throughput: 131 Mpps
  • MAC address table: 16000 entries
  • Latency (10-100 Mbps): 4.4 µs
  • Latency (1 Gbps): 2.2 µs
  • Latency (10 Gbps): 1.1 µs
  • Jumbo frames support: Yes

Security


  • DHCP features: DHCP snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Authentication: Port-based authentication
  • Authentication type: RADIUS

Multicast features


  • Multicast support: Yes

Protocols


  • IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
  • IPv4 FIB entries: 32
  • IPv6 FIB entries: 32

Design


  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: White

Performance


  • Physical stacking (units): 4
  • Built-in processor: Yes
  • Processor model: ARM Cortex-A9
  • Processor frequency: 800 MHz

Power


  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 120 W

Power over Ethernet (PoE)


  • Power over Ethernet (PoE): No

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 15 - 95%
  • Storage relative humidity (H-H): 15 - 90%

Weight & dimensions


  • Depth: 350.5 mm
  • Height: 44 mm
  • Weight: 4.4 kg
  • Width: 442.5 mm

Logistics data


  • Harmonized System (HS) code: 85176990
