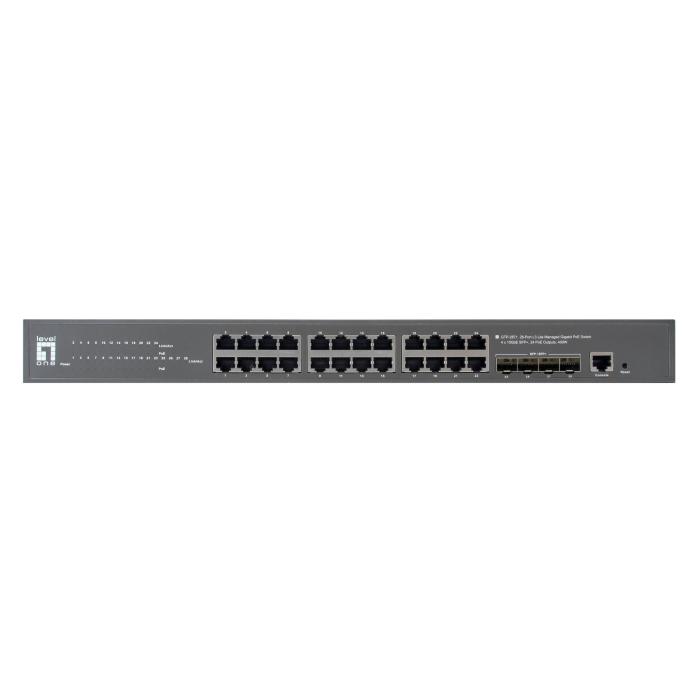

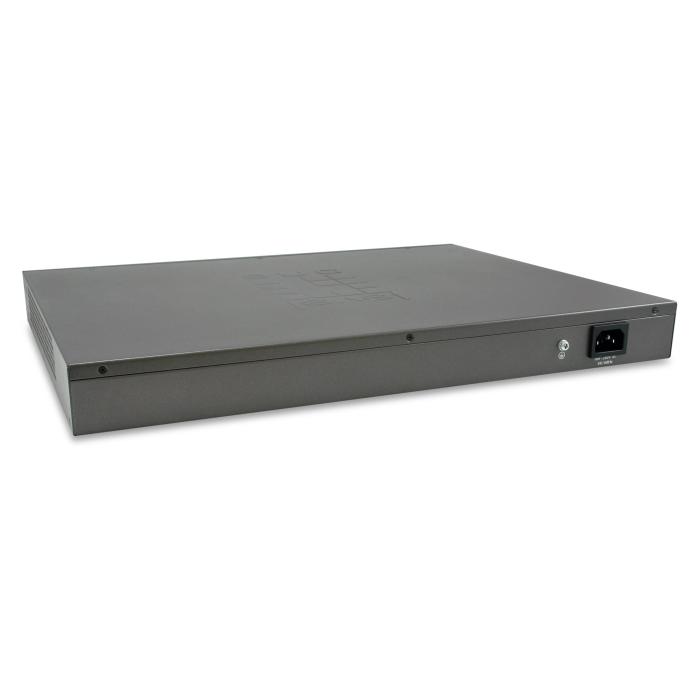

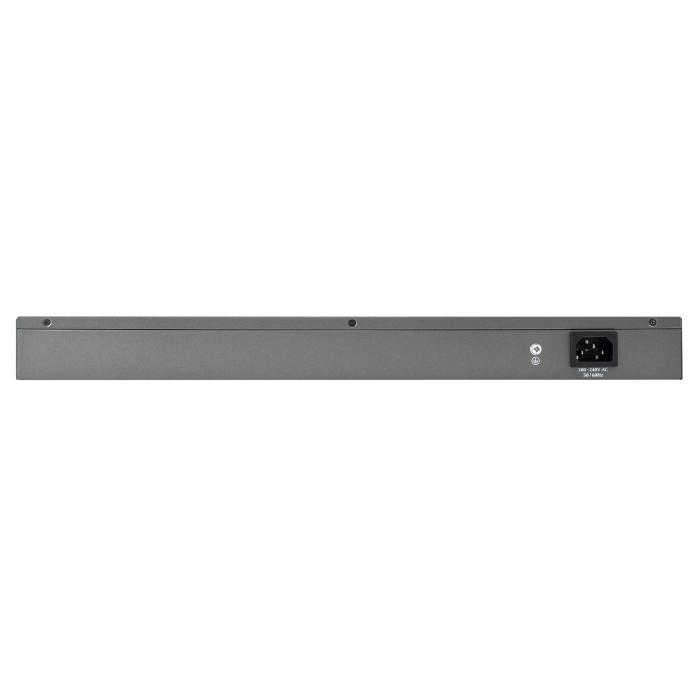

LevelOne GTP-2871 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

832.00 €
687.60 € without VAT

More info

Brand: LEVELONE
SKU: 118828 PRC: 313825 EAN: 4015867222669 PN: GTP-2871

Description

28-Port L3 Lite Managed Gigabit PoE Switch, 4 x10GbE SFP+, 24 PoE Outputs, 400W

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP+ module slots quantity: 4
  • Fiber ports quantity: 4
  • Fiber optic connector: SFP+
  • Power connector: AC-in jack

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3a
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

  • Switching capacity: 128 Gbit/s
  • Forwarding rate: 95.232 Mpps
  • MAC address table: 16000 entries
  • Store-and-forward: Yes
  • Static route: Yes
  • Maximum data transfer rate: 10 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet buffer memory: 1.5 MB

Security

  • DHCP features: DHCP relay, DHCP server, DHCP snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • IGMP proxy: Yes
  • Authentication: MAC-based authentication
  • Authentication type: RADIUS
  • Queue scheduling algorithms: Priority queuing (PQ), Weighted Round Robin (WRR)

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Product colour: Grey
  • Housing material: Metal
  • Reset button: Yes
  • LED indicators: Yes

Performance

  • Virtual stacking (units): 4
  • Internal memory: 512 MB
  • Flash memory: 32 MB
  • Firmware upgradeable: Yes
  • Plug and Play: Yes
  • Mean time between failures (MTBF): 150000 h

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 6 A
  • Power consumption (typical): 468.2 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 400 W

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 330 mm
  • Depth: 440 mm
  • Height: 44.5 mm
  • Weight: 4.48 kg

Packaging content

  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes

Packaging data

  • Rubber feet: Yes
  • Resource CD: Yes
  • Package width: 390 mm
  • Package depth: 596 mm
  • Package height: 80 mm
  • Package weight: 6 kg

Certificates

  • Compliance certificates: RoHS
  • Certification: CE

Logistics data

  • Country of origin: China
  • Harmonized System (HS) code: 85176990
