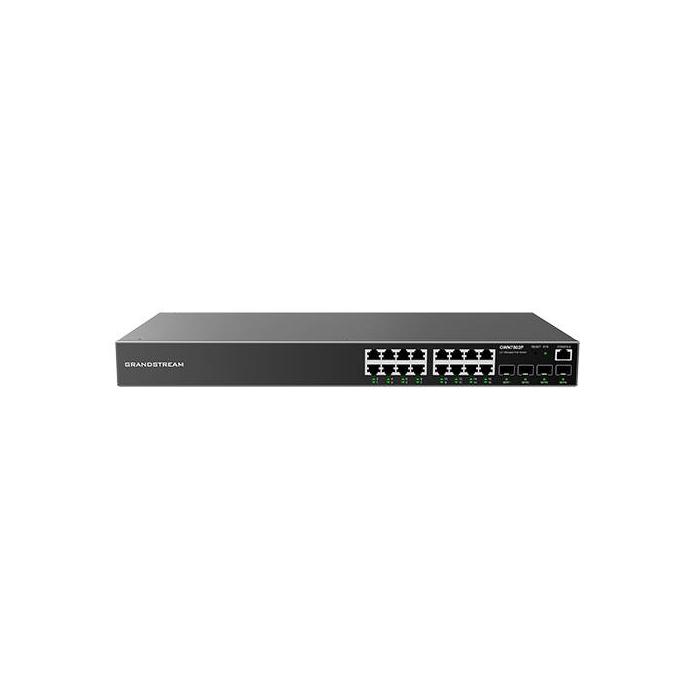

Grandstream Networks GWN7802 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
More info
Brand: GRANDSTREAM NETWORKS
164,00 €Stock available: 0 units.
Unavailable
SKU:
98644
PRC:
428480
EAN:
6947273704249
PN:
GWN7802
Description
The Grandstream Networks GWN7802 switch, in its black finish, is a managed L2+ device with 16 Gigabit Ethernet ports (10/100/1000) and 4 SFP slots for fibre links. It includes VLAN support with up to 4000 virtual networks, quality of service (QoS), IP routing, and advanced management functions such as CLI, web administration, and location-based configuration. It also features auto-negotiation, spanning tree protocol, rate limiting, port mirroring, and active link detection, all compliant with IEEE 802.3 standards. This model offers complete control over the network, ideal for environments requiring traffic segmentation and prioritisation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity: 4
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- IP routing: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-sensing: Yes
- Auto-negotiation: Yes
- Active link detection: Yes
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Switching capacity: 40 Gbit/s
- Throughput: 20 Gbit/s
- Forwarding rate: 29.76 Mpps
- Store-and-forward: Yes
- Static route: Yes
- Number of static routes: 8000
Security
- DHCP features: DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP server
- Access Control List (ACL): Yes
- Access Control List (ACL) rules: 1500
- IGMP snooping: Yes
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- IP-MAC-Port binding: Yes
- Password protection: Yes
- Authentication type: IEEE 802.1x
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
- Number of fans: 0 fan(s)
Power
- Power source: AC
- Power supply included: Yes
- Power consumption (typical): 30 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Weight & dimensions
- Width: 200 mm
- Depth: 44 mm
- Height: 440 mm
- Weight: 2.6 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
