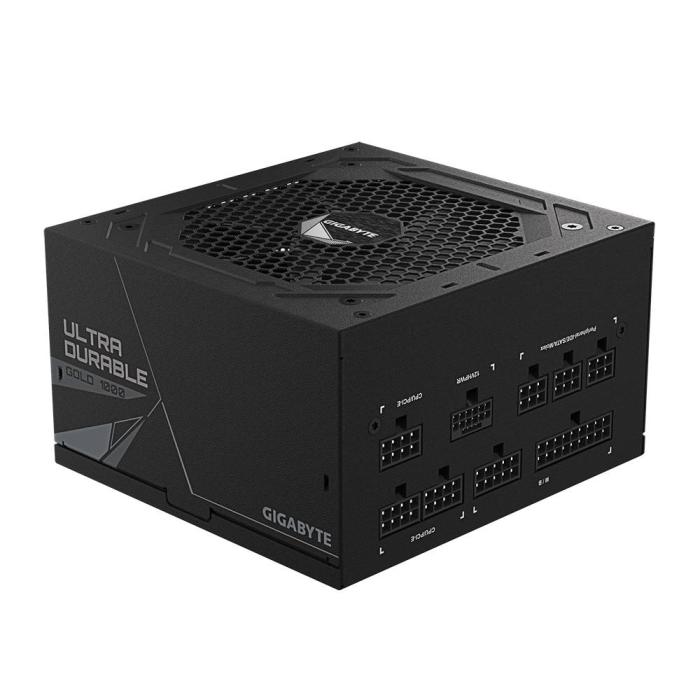

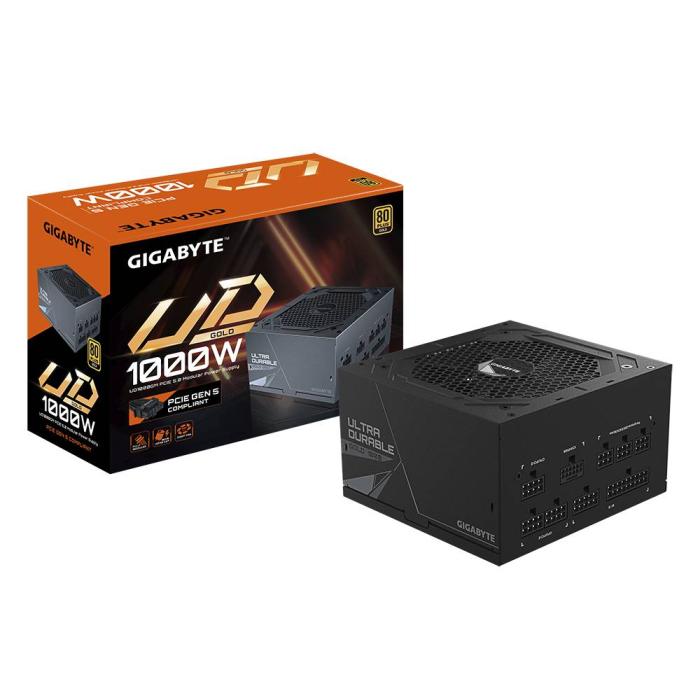

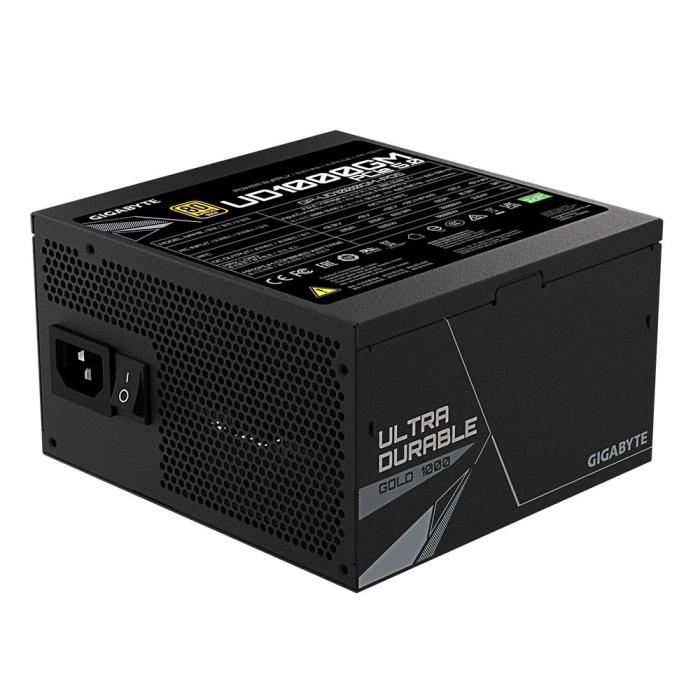

GIGABYTE GP-UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX Black

112.00 €

92.56 € without VAT

Amount

Brand: GIGABYTE

SKU: 93225 PRC: 369889 EAN: 4719331552275 PN: UD1000GM PG5

Description

GIGABYTE GP-UD1000GM PG5, 1000 W, 100 - 240 V, 50 - 60 Hz, 15 - 6.5 A, Active, 125 W

Specifications

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 15 - 6.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 999.6 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

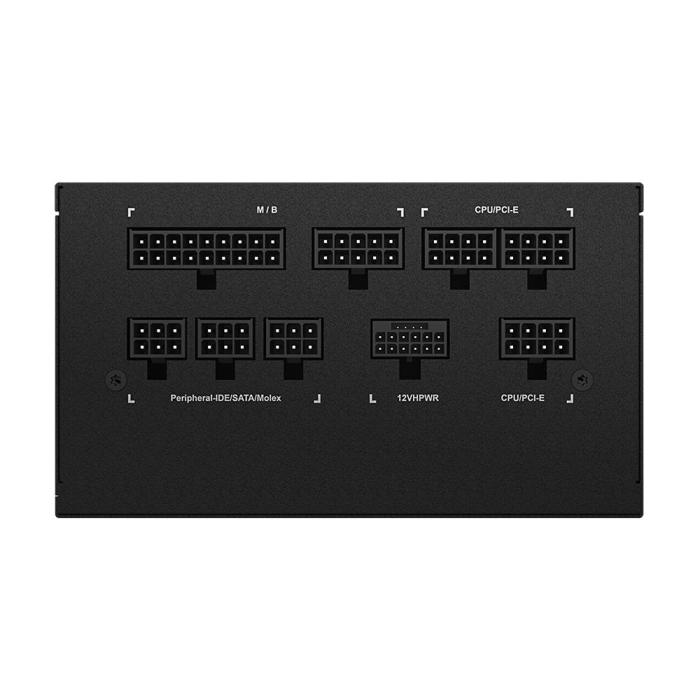

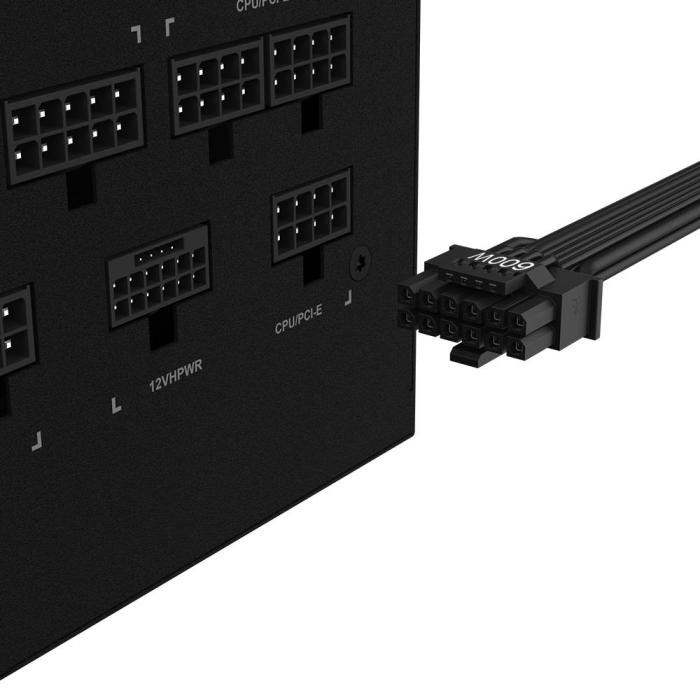

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 6
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm

Packaging data

Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
