Name: be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black
Brand: BE QUIET!
Price: 103.79 USD
Availability: InStock

be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black

$103.79

$103.79 without VAT

Amount

Brand: BE QUIET!

SKU: 110253 PRC: 594004 EAN: 4260052191187 PN: BP003EU

Description

be quiet! PURE POWER 12 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A

Specifications

Power

Total power: 750 W
Peak power: 820 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17.04 ms
Efficiency: 90.7%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 500, 650, 800, 950 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 800 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 22.5 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%

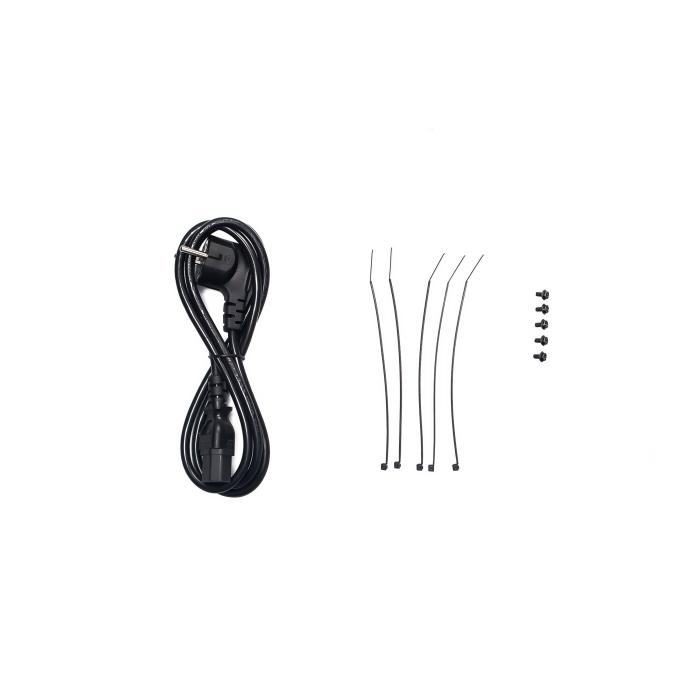

Packaging content

Cables included: AC
Cable tie(s) included: Yes

Certificates

Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus

Weight & dimensions

Width: 86 mm
Depth: 160 mm
Height: 150 mm
Weight: 2.6 kg

Packaging data

Package width: 133 mm
Package depth: 320 mm
Package height: 210 mm
Package weight: 3 kg

Technical details

Sustainability certificates: ENERGY STAR, ErP, Triman

Logistics data

Shipping (inner) case length: 44 cm
Shipping (inner) case width: 34.5 cm
Shipping (inner) case height: 41.8 cm
Shipping (inner) case net weight: 19.2 kg
Products per shipping (inner) case: 6 pc(s)
Warranty period: 10 year(s)

Other features

Screws included: Yes
