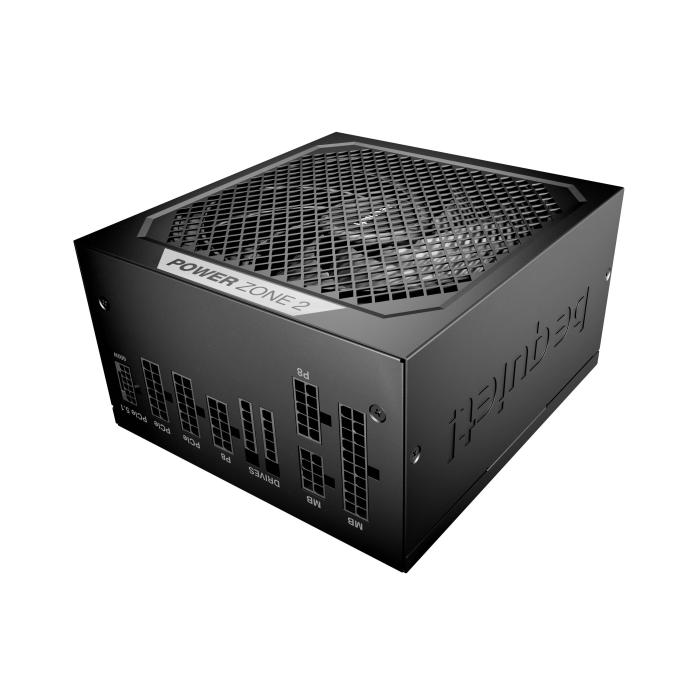

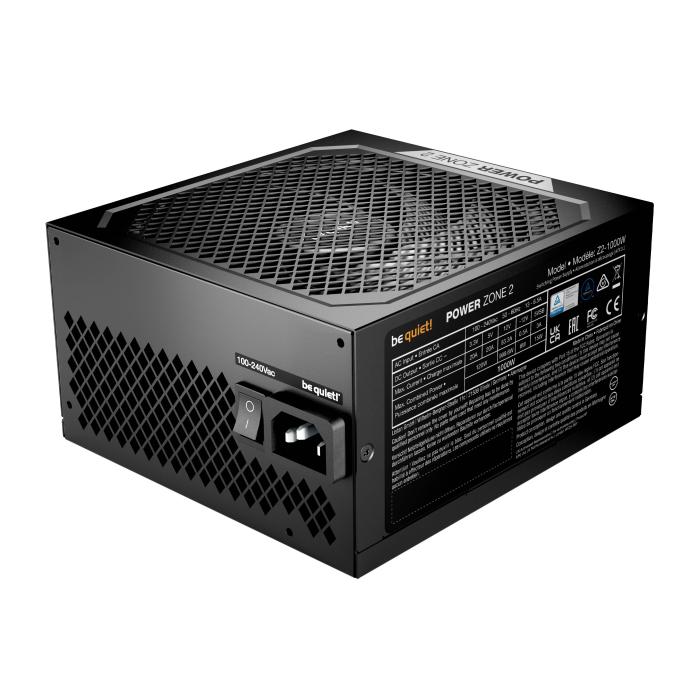

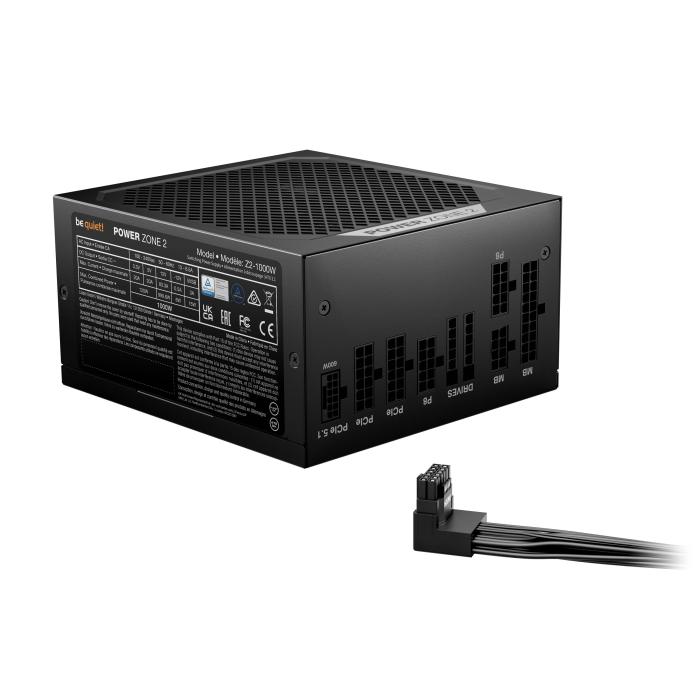

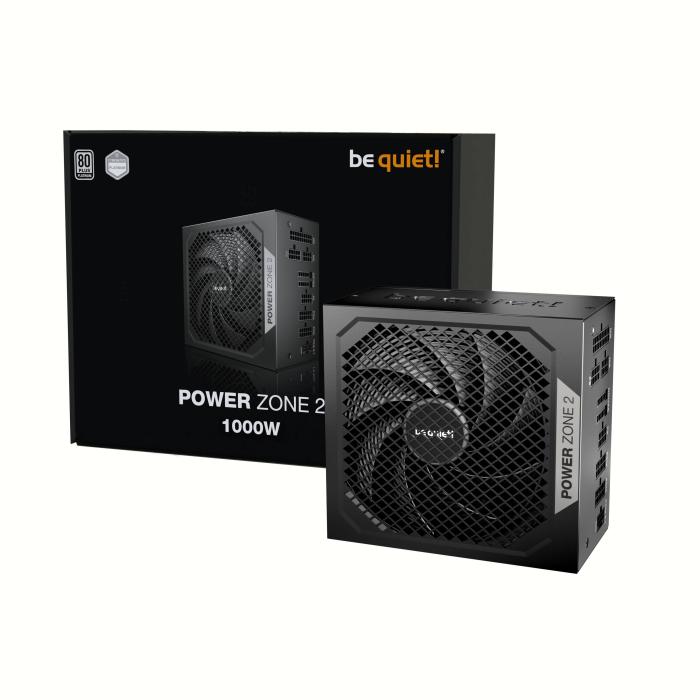

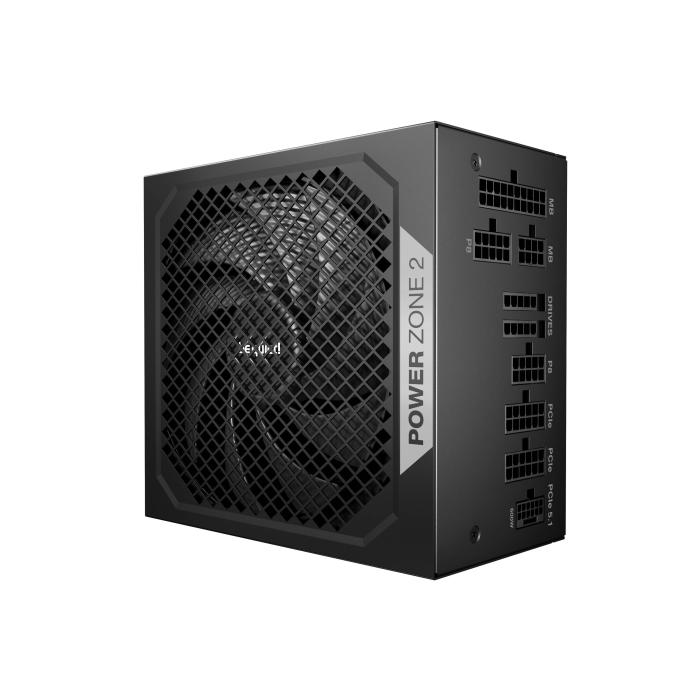

be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black

$166.63
$166.63 without VAT

More info

Brand: BE QUIET!
SKU: 110246 PRC: 593996 EAN: 4260052191385 PN: BP008EU

Description

be quiet! POWER ZONE 2 1000W, 1000 W, 100 - 240 V, 1070 W, 50/60 Hz, 13 A, 6.5 A

Specifications

Power

  • Total power: 1000 W
  • Peak power: 1070 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Maximum input current (@110V): 13 A
  • Maximum input current (@220V): 6.5 A
  • Power factor: 0.98
  • Number of +12V rail(s): 1
  • Combined power (+3.3V): 120 W
  • Combined power (+12V): 999.6 W
  • Combined power (+5V): 120 W
  • Combined power (-12V): 6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 83.3 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.5 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 22.7 ms
  • Efficiency: 92.6%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage

Ports & interfaces

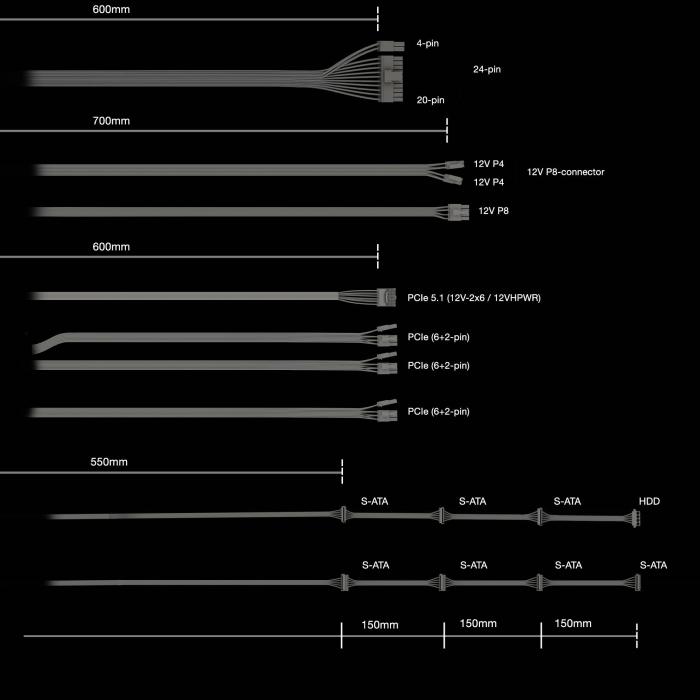

  • Motherboard power cable length: 60 cm
  • Number of SATA power connectors: 7
  • SATA power cable length: 550, 700, 850, 1000 mm
  • Peripheral (Molex) power connectors (4-pin): 1
  • Peripheral (Molex) power cable length: 1000 mm
  • EPS power connector (8-pin): Yes
  • PCI Express power connectors (6+2 pin): 3
  • PCI Express power connectors (16-pin): 1
  • PCI Express power cable length: 60 cm
  • CPU P4 connector (4-pin): 1
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 70 cm

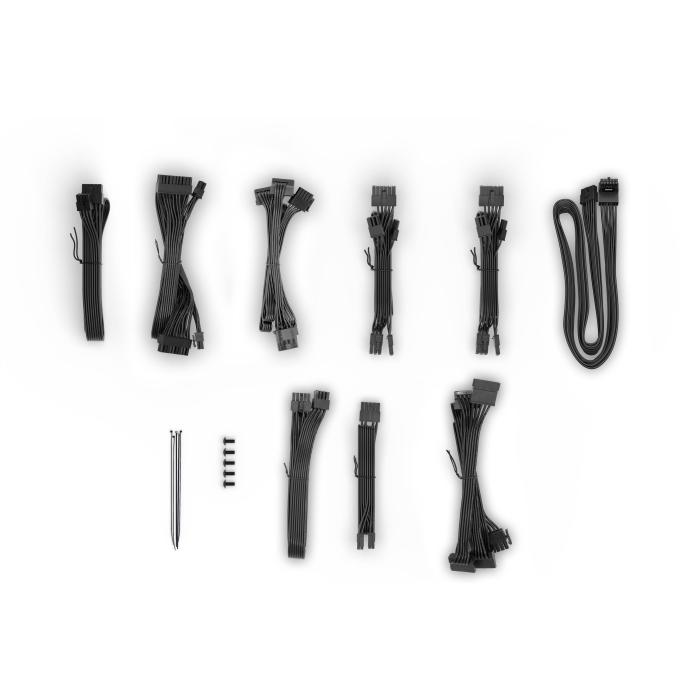

  • Cabling type: Fully-Modular
  • Motherboard power connector: 20+4 pin ATX

Performance

  • 80 PLUS certification: 80 PLUS Platinum
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Noise level: 27.2 dB
  • Bearing technology: Rifle
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 14 cm
  • Number of fans: 1 fan(s)
  • On/off switch: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Storage relative humidity (H-H): 0 - 95%

Certificates

  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE

Weight & dimensions

  • Width: 150 mm
  • Depth: 160 mm
  • Height: 86 mm
  • Weight: 2.82 kg

Packaging data

  • Manual: Yes
  • Manual languages: German, English, Spanish, French, Polish, Russian, Ukrainian
  • Package width: 248 mm
  • Package depth: 328 mm
  • Package height: 102 mm
  • Package weight: 3.28 kg
  • Package type: Box

Technical details

  • Sustainability certificates: ENERGY STAR, ErP, Triman

Logistics data

  • Shipping (inner) case length: 65.1 cm
  • Shipping (inner) case width: 28.2 cm
  • Shipping (inner) case height: 34.6 cm
  • Products per shipping (inner) case: 6 pc(s)
  • Shipping (inner) case gross weight: 19.6 kg

Other features

  • Screws included: Yes
  • Cable ties included: Yes
