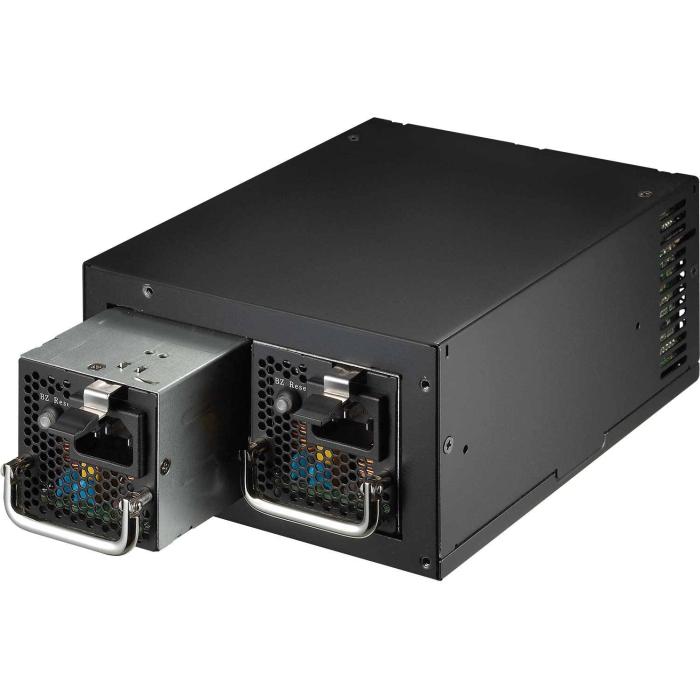

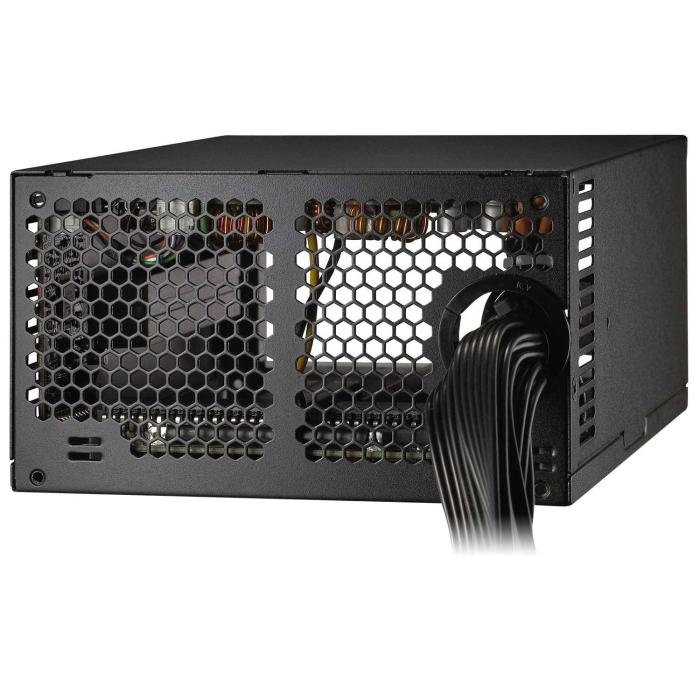

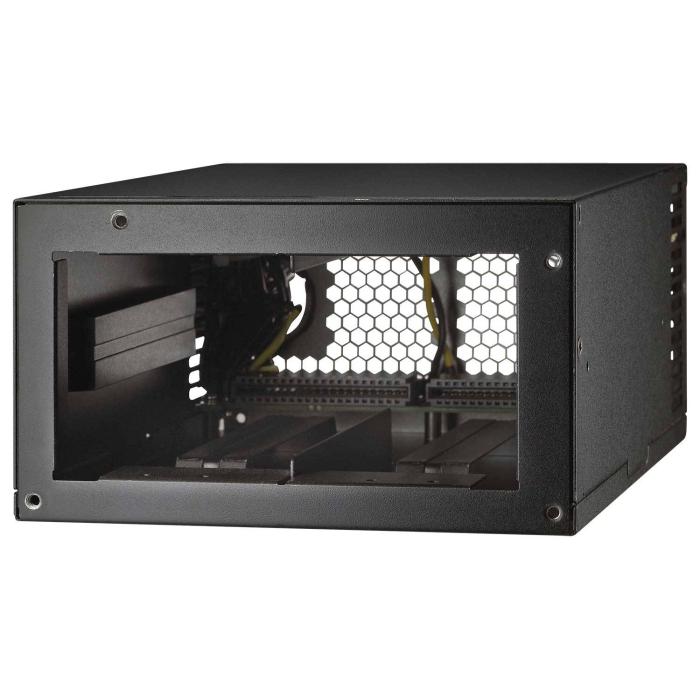

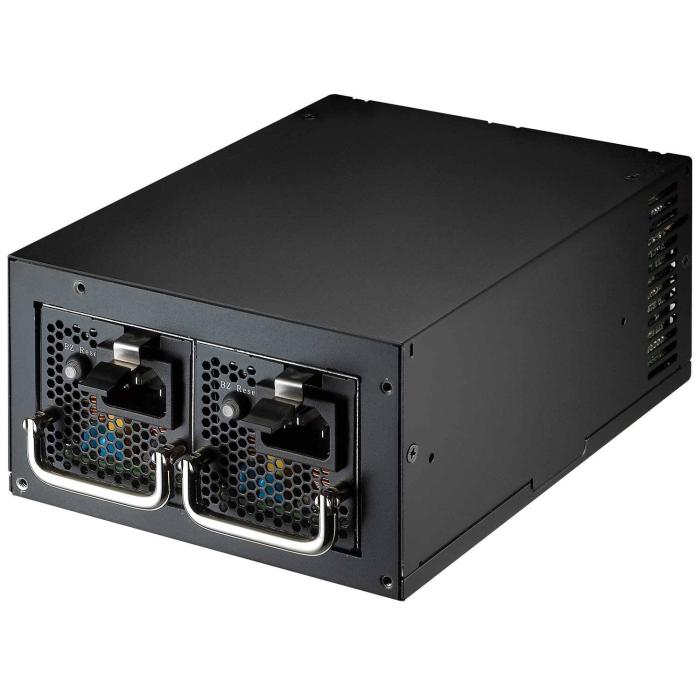

FSP/Fortron Twins power supply unit 500 W Black
FSP/Fortron Twins, 500 W, 100 - 240 V, 50 - 60 Hz, 8 A, Active, 130 W.
More infoBrand: FSP/FORTRON
388,00 €Stock available: 0 units.
Unavailable
SKU:
115141
PRC:
268086
EAN:
4711140483115
PN:
ppa5007101
Description
FSP/Fortron Twins, 500 W, 100 - 240 V, 50 - 60 Hz, 8 A, Active, 130 W
Specifications
Power
- Total power: 500 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 8 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+5V): 130 W
- Max output current (+3.3V): 20 A
- Max output current (+12V1): 16 A
- Max output current (+12V2): 16 A
- Max output current (+12V3): 16 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Redundant power supply (RPS) support: Yes
- Power protection features: Over current,Over voltage,Short circuit
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: Server
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 4 cm
- Number of fans: 2 fan(s)
Weight & dimensions
- Width: 150 mm
- Depth: 190 mm
- Height: 86 mm
Packaging data
- Warranty card: Yes
- Manual: Yes
- Package type: Box
