Description

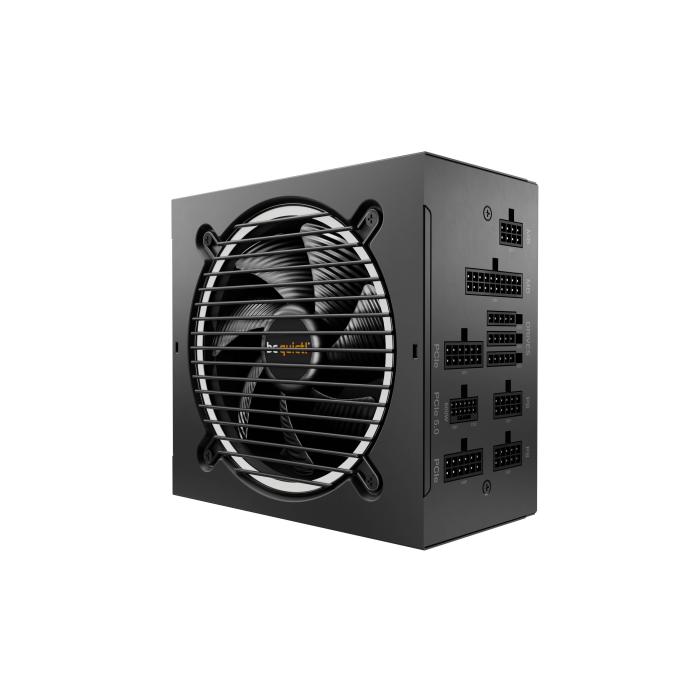

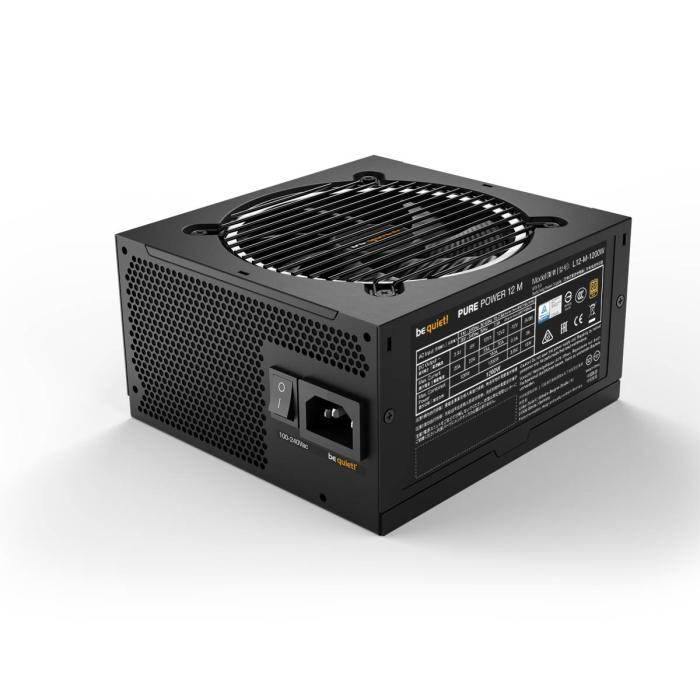

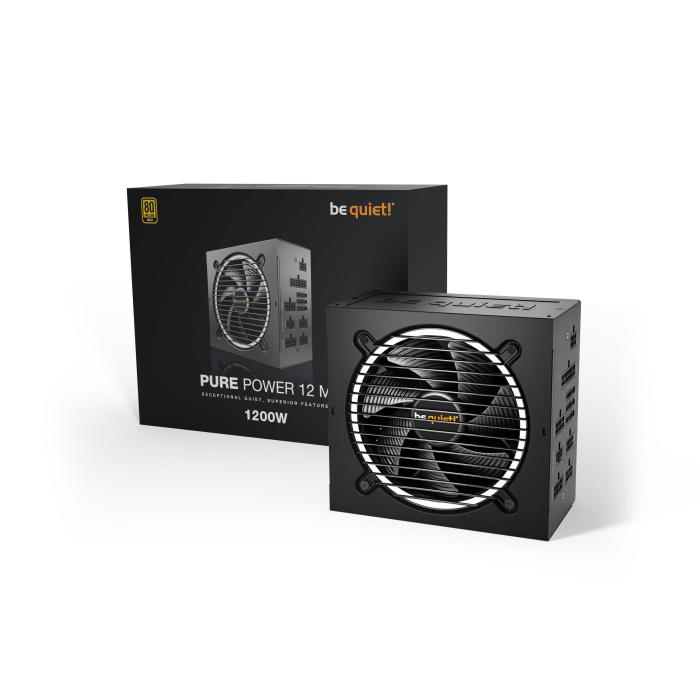

The be quiet! Pure Power 12 M power supply unit delivers 1200 W of total power in black, with dimensions of 160 x 86 x 150 mm and a weight of 1.92 kg. It supports an AC input voltage of 100 - 240 V and a frequency of 50/60 Hz, with an input current of 15 A. It achieves an efficiency of 91.5% and its maximum power reaches 1250 W. It distributes the combined power into 120 W for the +5 V rail and another 120 W for the 3.3 V rail, while the +12 V rail offers 1200 W. Its +12 V1 and +12 V2 rails deliver maximum currents of 55 A and 50 A respectively, and the +3.3V and +5V outputs reach 22 A each. It incorporates six SATA power connectors, two PATA connectors and a 4+4 pin CPU power connector. The hold-up time stands at 19 ms.
Specifications
Power
- Total power: 1200 W
- Peak power: 1250 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 A
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 22 A
- Max output current (+12V1): 55 A
- Max output current (+12V2): 50 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Hold time: 19 ms
- Efficiency: 91.5%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under current, Under power, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- Number of PATA power connectors: 2
- SATA power cable length: 150 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (8-pin): 4
- PCI Express power cable length: 60 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- EPS version: 2.92
- Silent mode: Yes
- Bearing technology: Rifle
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 2700 RPM
- Fan location: Top
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content

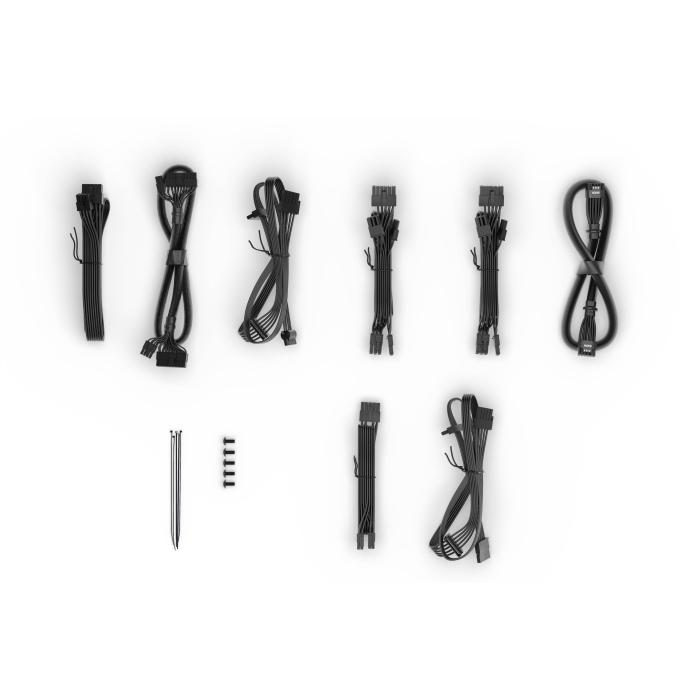

- Cables included: AC, CPU, PATA, PCIe, SATA
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.92 kg
Packaging data
- Package width: 284 mm
- Package depth: 220 mm
- Package height: 100 mm
- Package weight: 3.19 kg
- Package type: Box
Technical details
- Sustainability compliance: Yes
- Sustainability certificates: BSMI, CB, CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, TUV, Triman, UKCA, WEEE, cTUVus
