Description

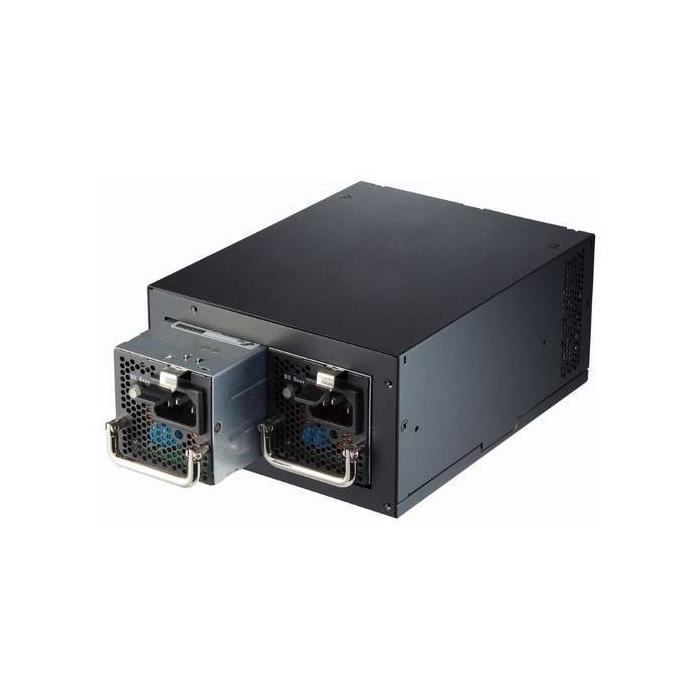

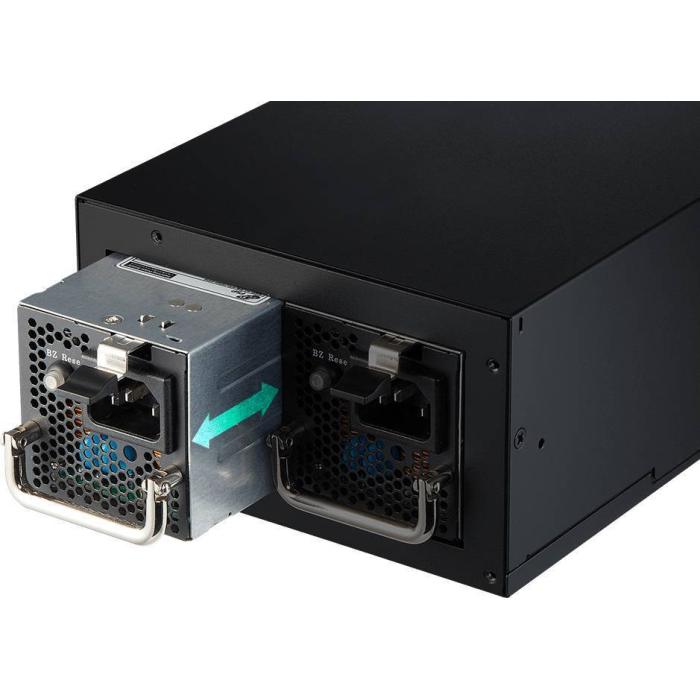

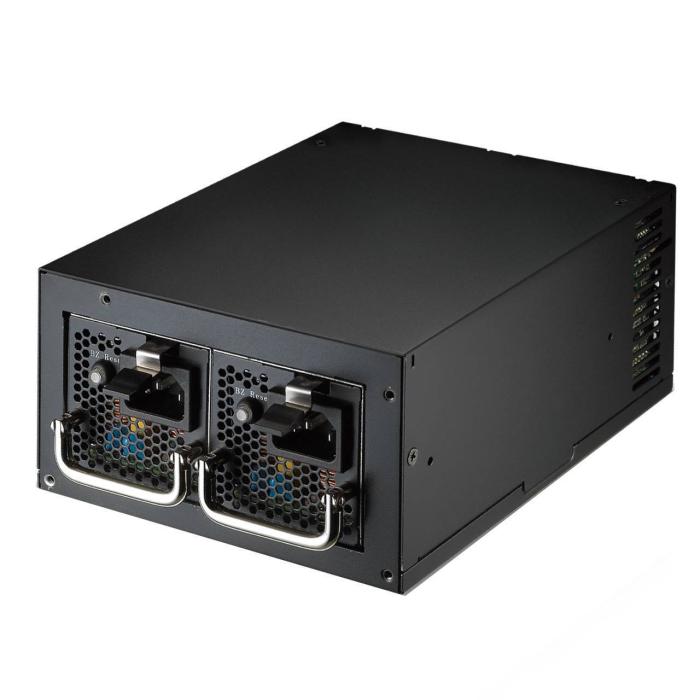

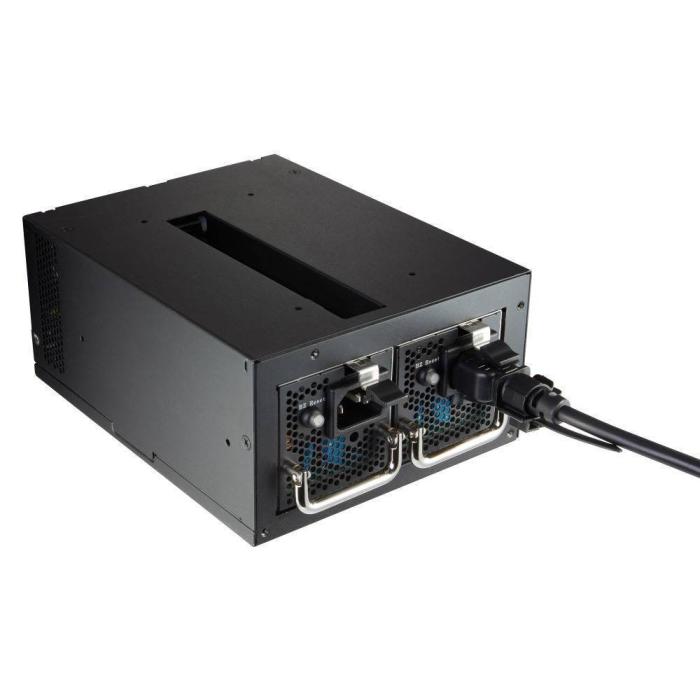

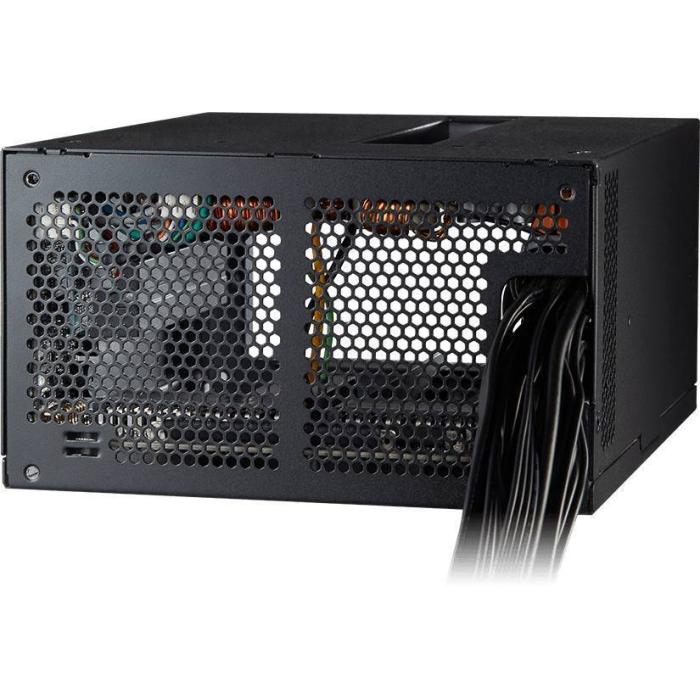

The FSP Twins PRO 900W is a black power supply unit, measuring 150 x 86 x 190 mm (width x height x depth). It offers a total power of 900 W and achieves 90% efficiency. It features active power factor correction and supports an AC input voltage of 100 - 240 V with a frequency of 50 - 60 Hz and an input current of 6 - 10 A. Its protection features include overcurrent, overvoltage, overpower, overheating, short circuit and undervoltage. In terms of connectors, it includes the 20+4 pin ATX motherboard power connector, a 4+4 pin CPU power connector, six SATA power connectors and two 4-pin Molex peripheral power connectors. It distributes the load with a maximum output current of 75 A on the +12V rail, 20 A on +3.3V, 20 A on +5V, 3 A on +5Vsb and 0.5 A on -12V, plus a combined power of 130 W on both +5 V and 3.3 V.
Specifications
Power
- AC input frequency: 50 - 60 Hz
- Input current: 6 - 10 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+5V): 130 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 75 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
- Total power: 900 W
- AC input voltage: 100 - 240 V
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: Server
- Power supply unit (PSU) form factor: PS/2
- Bearing technology: DBB
Design
- Product colour: Black
- Fan diameter: 4 cm
- Number of fans: 2 fan(s)
Packaging content
- Cables included: CPU, PCIe, SATA
Weight & dimensions
- Width: 150 mm
- Depth: 190 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
