Description

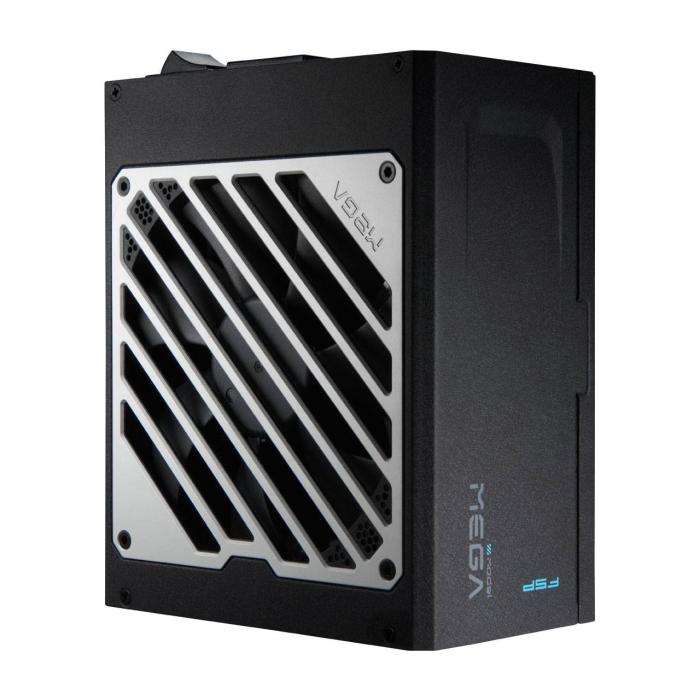

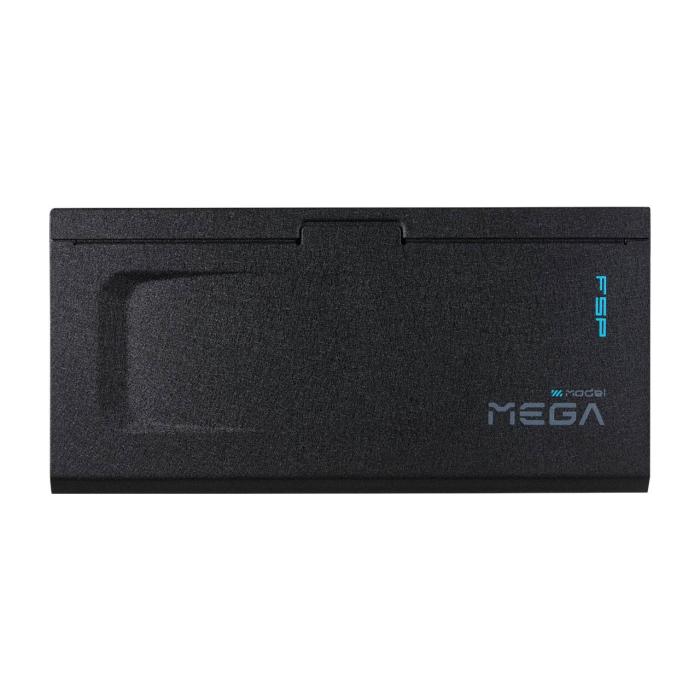

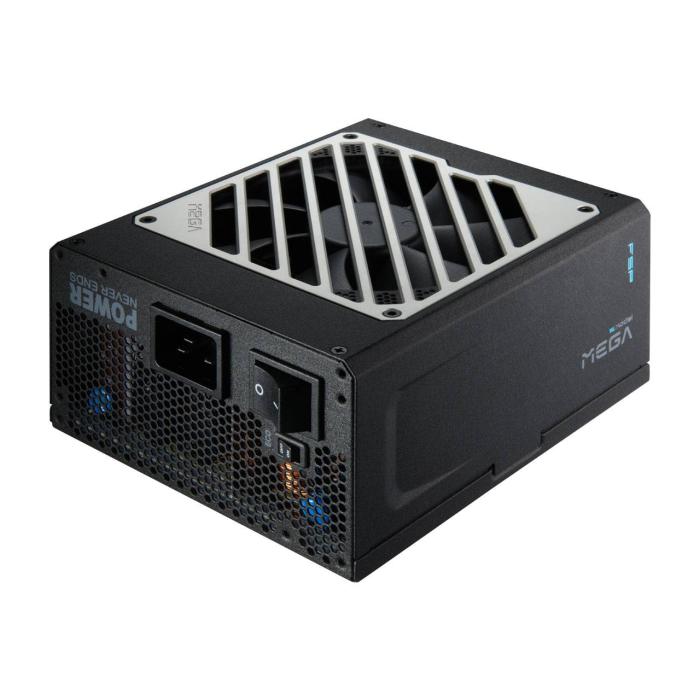

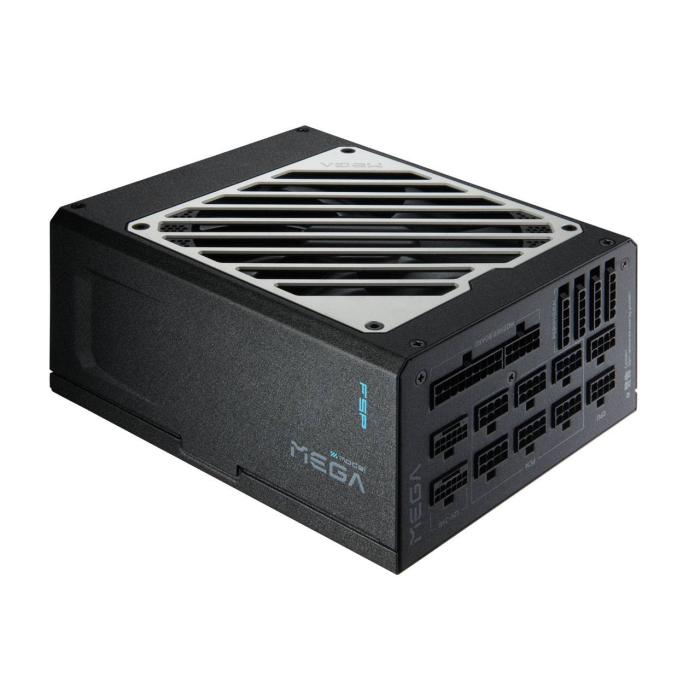

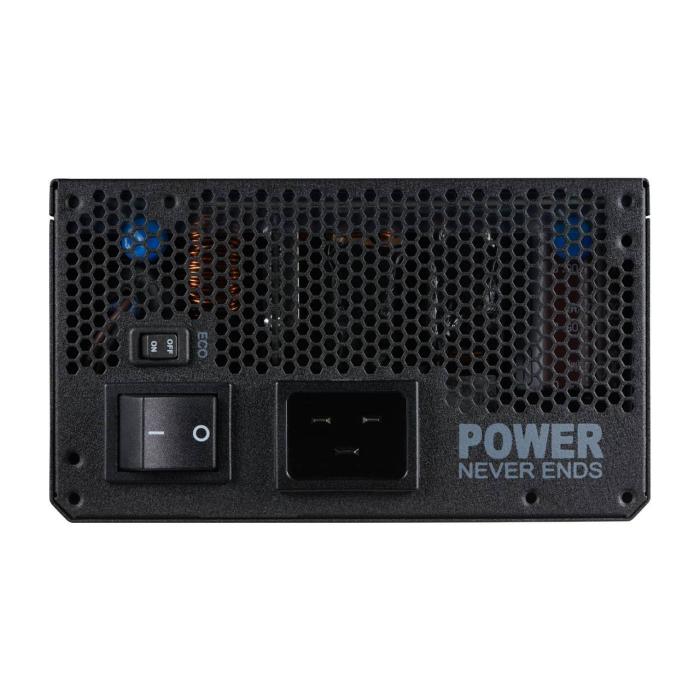

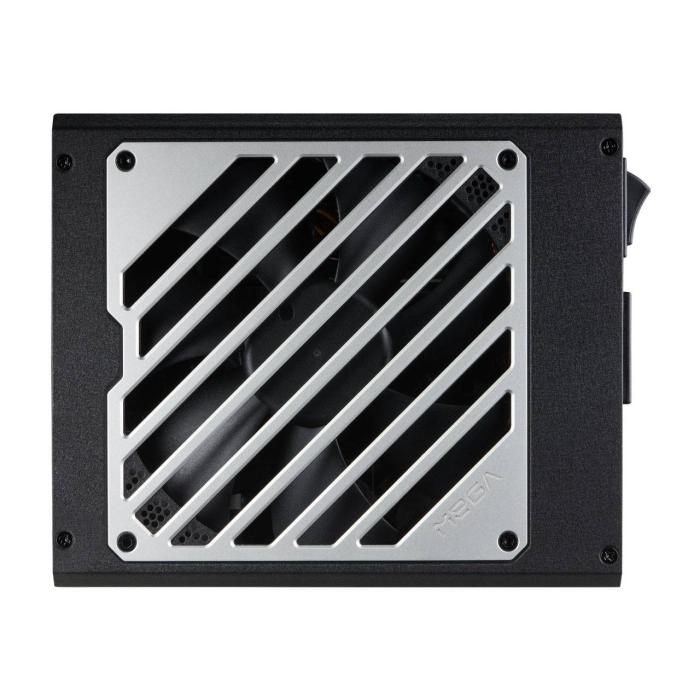

FSP MEGA TI 1650W power supply unit in ATX format and black finish, designed to deliver a total output of 1650 watts with 94% efficiency and a power factor of 0.9. It features a 20+4 pin main connector and offers a maximum output current of 137.5 A on the +12V rail, along with currents of 20 A on +5V and +3.3V, and 4 A on +5Vsb. It integrates six 6+2 pin PCI Express connectors, ten SATA connectors and six 4-pin Molex peripheral connectors, covering the cabling needs of demanding configurations. Its input voltage is 110-240 V with a frequency of 50/60 Hz and an input current of 10-15 A, making it compatible with the Spanish mains grid.
Specifications
Power
- Total power: 1650 W
- AC input voltage: 110 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 - 15 A
- Power factor: 0.9
- Combined power (+3.3V): 120 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 20 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 137.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 4 A
- Efficiency: 94%
- Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under vo
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 10
- Peripheral (Molex) power connectors (4-pin): 6
- PCI Express power connectors (6+2 pin): 6
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Titanium
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: FDB
Design
- Product colour: Black
- Cooling type: Active
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 180 mm
- Height: 86 mm
