Description

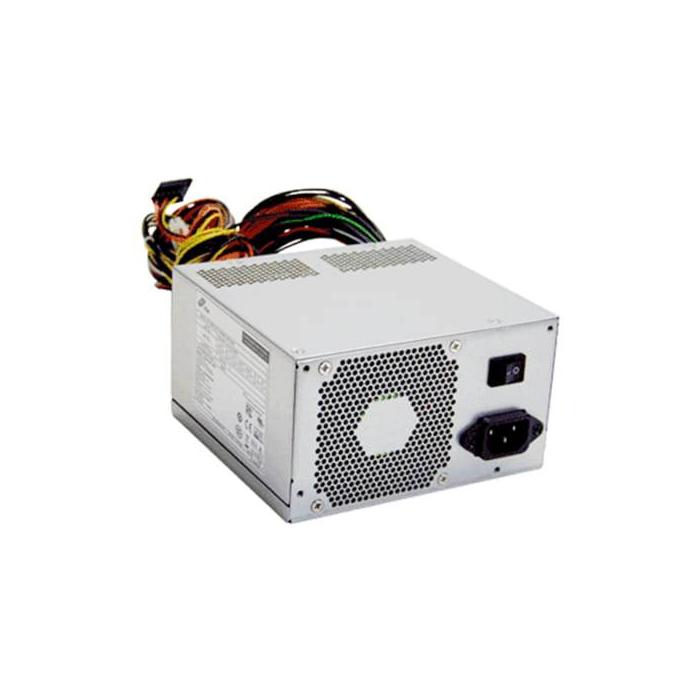

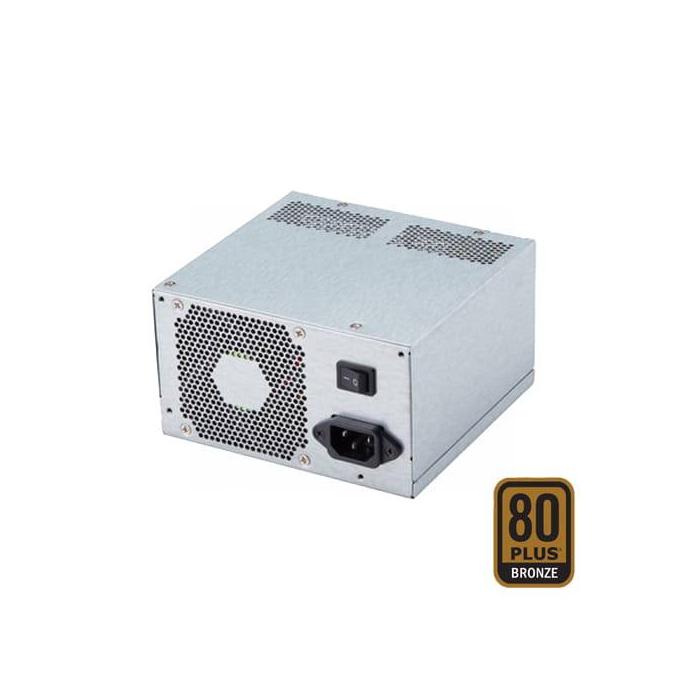

The FSP FSP460-70PFL(SK) power supply unit delivers 460 W of total power with an ATX form factor and grey finish, designed for storage servers or NAS systems that require stable power. It includes a main 24-pin connector for the motherboard and two SATA connectors for storage drives, with non-modular cabling that simplifies installation. Its active PFC and power factor correction operate with an input voltage of 90 to 264 V and a frequency of 47 to 63 Hz, adapting to different electrical networks. It features protections against overcurrent, overvoltage, and overheating, with maximum output currents of 18 A on the +12 V rails, 22 A on +3.3 V, and 16 A on +5 V. The 16 ms hold-up time ensures a proper transition during fluctuations.

Specifications

Power


  • Total power: 460 W
  • AC input voltage: 90 - 264 V
  • AC input frequency: 47 - 63 Hz
  • Power Factor Correction (PFC) type: Active
  • Max output current (+3.3V): 22 A
  • Max output current (+12V1): 18 A
  • Max output current (+12V2): 18 A
  • Max output current (+5V): 16 A
  • Max output current (-12V): 0.5 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 16 ms
  • Power protection features: Over current, Over voltage, Overheating

Ports & interfaces


  • Motherboard power connector: 24-pin ATX
  • Number of SATA power connectors: 2
  • ATX Power connector (24-pin): Yes
  • Cabling type: Non-Modular

Performance


  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: NAS/storage server
  • Power supply unit (PSU) form factor: ATX
  • Mean time between failures (MTBF): 100000 h

Design


  • Product colour: Grey
  • Cooling type: Active
  • Fan diameter: 8 cm
  • Number of fans: 1 fan(s)

Operational conditions


  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 80 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Storage relative humidity (H-H): 0 - 95%

Certificates


  • Certification: UL/cUL, CE, FCC, CCC, CB, EAC, TÜV EN 62368-1, UKCA

Weight & dimensions


  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
