Description
Specifications
Power
- Total power: 2500 W
- AC input voltage: 200 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 - 12 A
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 2499.6 W
- Combined power (+5V): 125 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 20 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 208.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 4 A
- Efficiency: 94%
- Power protection features: No load operation, Over current, Over power, Over voltage, Short circuit, Surge and inrush, Under temperature, Under voltage

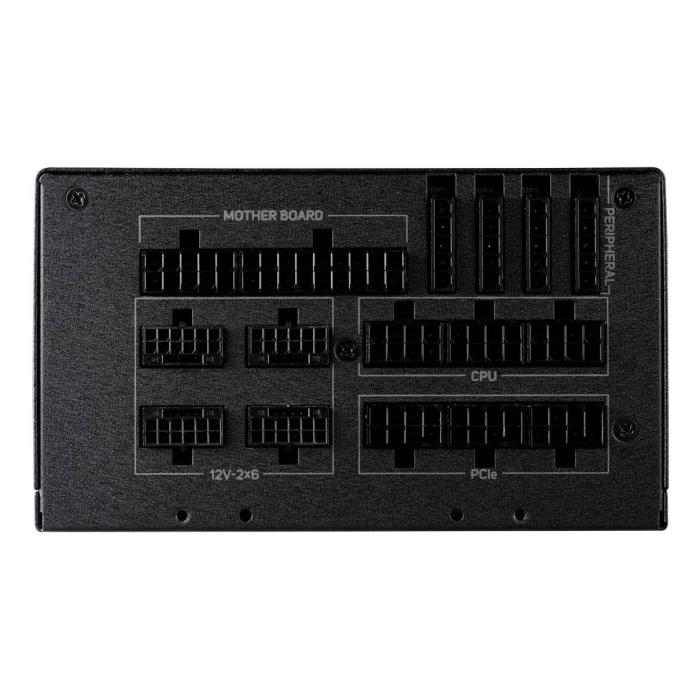

Ports & interfaces
- SATA power cable length: 965 mm
- Number of SATA power cables: 2
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 965 mm
- PCI Express power connectors (6+2 pin): 3
- PCI Express power connectors (8-pin): 8
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Cabling type: Fully-Modular
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 8
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: FDB
Design
- Product colour: Black
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 200 mm
- Height: 86 mm
