Description

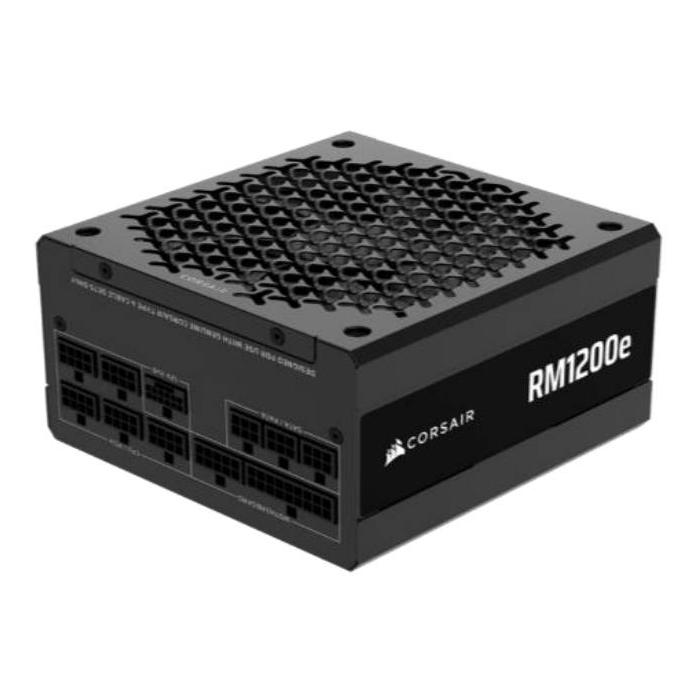

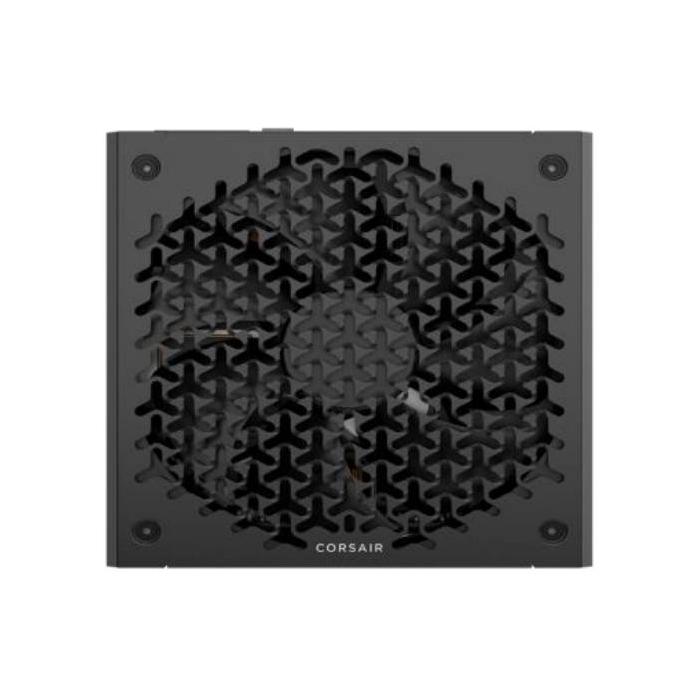

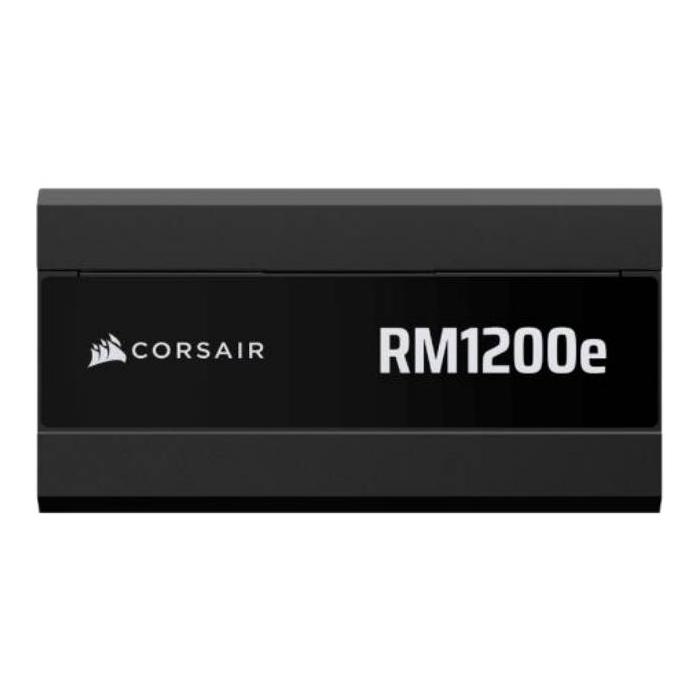

Corsair RM Series RM1200e power supply unit 1200 W with ATX form factor and 24-pin ATX motherboard connector. Its 80 PLUS Platinum certification is paired with an input range of 100 - 240 V and 47 - 63 Hz, with an input current of 15 - 7.5 A. It delivers up to 100 A on the +12 V rail and 20 A on the +3.3 V rail, with 150 W combined power at 3.3 V. It features two SATA power connectors, two PATA and two 6 + 2-pin PCI Express, plus three 8-pin PCI Express. The motherboard cable measures 61 cm, the CPU cable 75 cm and the SATA cable 750 mm. Its cooling system is active, with a 14 cm diameter fan, and the product colour is black.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 15 - 7.5 A
- Combined power (+3.3V): 150 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 150 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 100 A
- Max output current (+5V): 20 A
- Max output current (+5Vsb): 3 A
- Efficiency: 91%
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 2
- Number of PATA power connectors: 2
- SATA power cable length: 750 mm
- Number of SATA power cables: 4
- PCI Express power connectors (6+2 pin): 2
- PCI Express power connectors (8-pin): 3
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 75 cm
- ATX power connector (12+4 pin): Yes
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
- Product colour: Black
