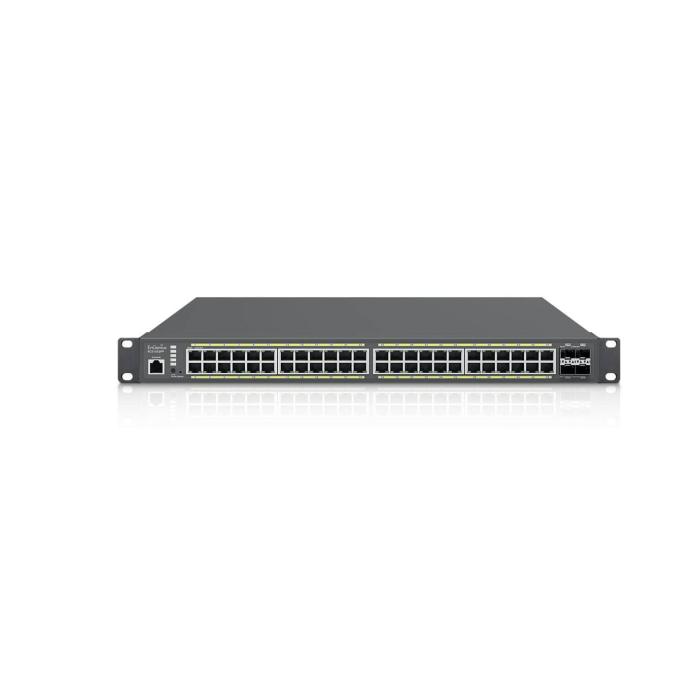

Name: EnGenius CloudSwitch L2Plus 48 Full PoE
Brand: ENGENIUS
Availability: OutOfStock

EnGenius CloudSwitch L2Plus 48 Full PoE

Not avaliable

EnGenius CloudSwitch L2Plus 48 Full PoE. More info

Amount

Brand: ENGENIUS

SKU: 104779 PRC: 509674 EAN: 4713361935008 PN: ECS1552FP

Description

48x 10/100/1000 Mbps Ports, 512 MB SDRAM, 128 MB Flash, 740W POE, 310 x 440 x 44 mm, 5.9 kg

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 4

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity: 176 Gbit/s
MAC address table: 32000 entries
Number of queues: 8
Static route: Yes
Number of static routes: 63
Number of IP interfaces: 20
Jumbo frames support: Yes
Jumbo frames: 9000

Security

DHCP features: DHCP relay, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSH, SSL/TLS
Authentication: Port-based authentication
Authentication type: IEEE 802.1x, RADIUS
Queue scheduling algorithms: Strict Priority Queue (SPQ), SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
Multicast features: Multicast forwarding
Number of multicast groups filtered: 256
Multicast Listener Discovery (MLD) snooping: v1

Protocols

Management protocols: SNMP v1/v2c/v3

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes

Performance

Internal memory: 512 MB
Flash memory: 128 MB
Firmware upgradeable: Yes

Power

Power supply included: Yes
Redundant power supply (RPS) support: No
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 48
Total Power over Ethernet (PoE) budget: 740 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 310 mm
Height: 44 mm
Weight: 5.9 kg

Packaging content

Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes

Logistics data

Harmonized System (HS) code: 85176990
