Description

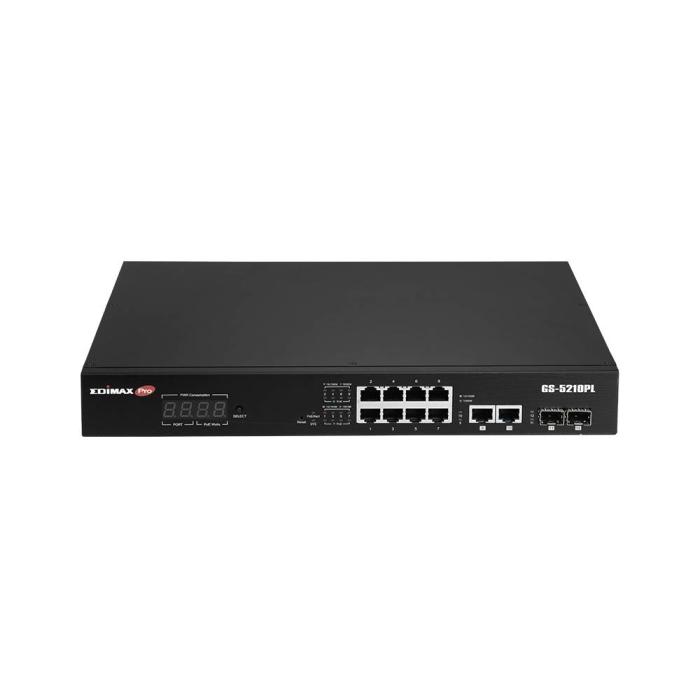

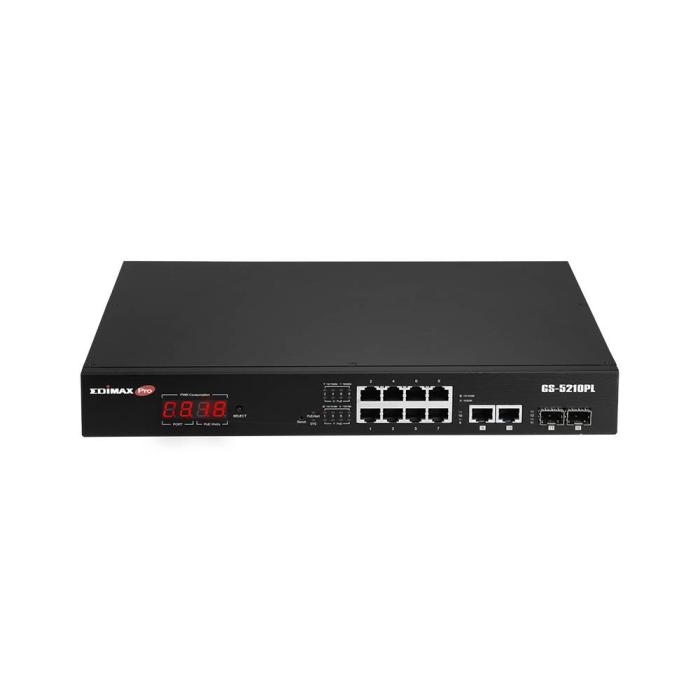

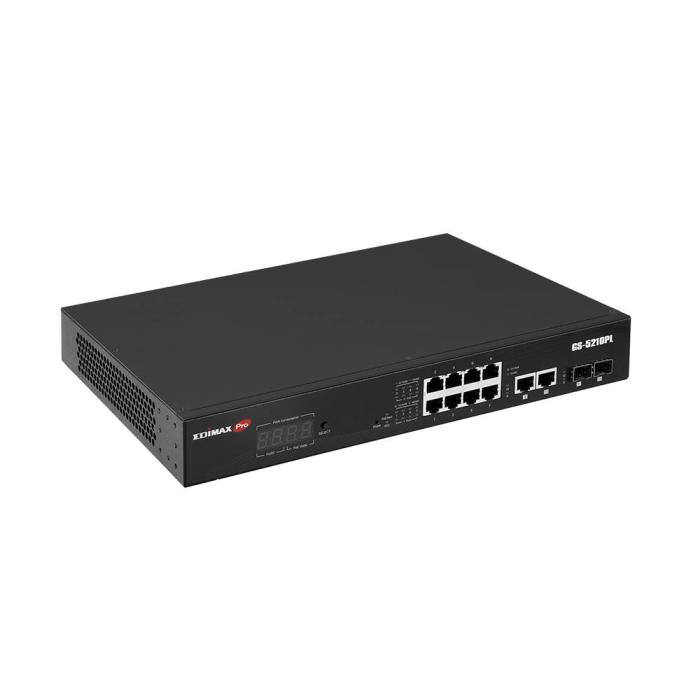

The Edimax GS-5210PL switch is a managed Gigabit Ethernet model with ten 10/100/1000 RJ-45 ports and two SFP slots, in a black finish. Its web-based management includes support for port-based, MAC-based, or interface-based VLANs, as well as quality of service (QoS) and port mirroring for traffic monitoring. With a switching capacity of 24 Gbit/s and a MAC address table of 8000 entries, it supports jumbo frames of 9000 bytes and up to 8 IPv6 routes. System event logging is enabled to facilitate tracking of network activity.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
- Port mirroring: Yes
- IPv6 routes: 8
- VLAN support: Yes
- Virtual LAN features: Interface-based VLAN, MAC address-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Optical fiber
- Switching optical modules type: Gigabit Ethernet
Data transmission
- Switching capacity: 24 Gbit/s
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Security
- DHCP features: DHCP snooping
- IGMP snooping: Yes
- Static port security: Yes
- Authentication type: AAA, RADIUS
Design
- Product colour: Black
- LED indicators: Link, PoE
Power

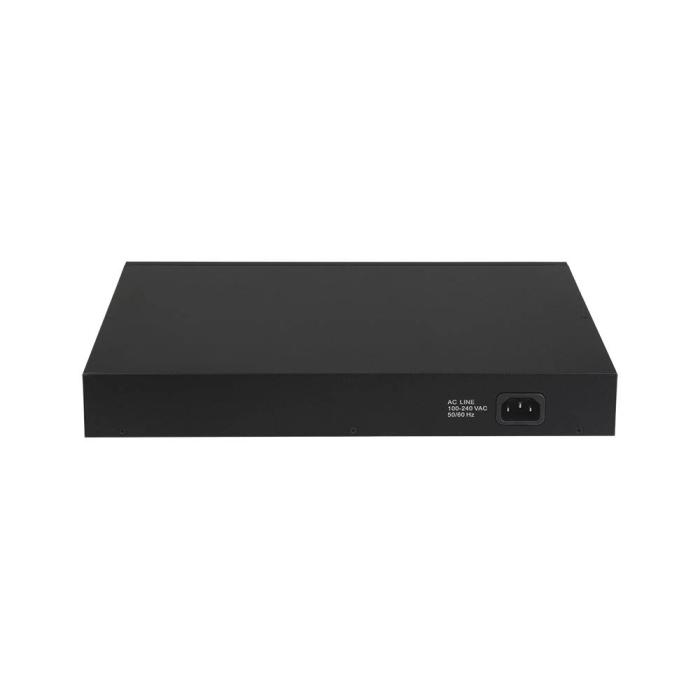

- AC input voltage: 120 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 110 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 230 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 2.3 kg
Certificates
- Certification: FCC Class A, CE, ONVIF Compliant
Logistics data
- Harmonized System (HS) code: 85176990
