Description

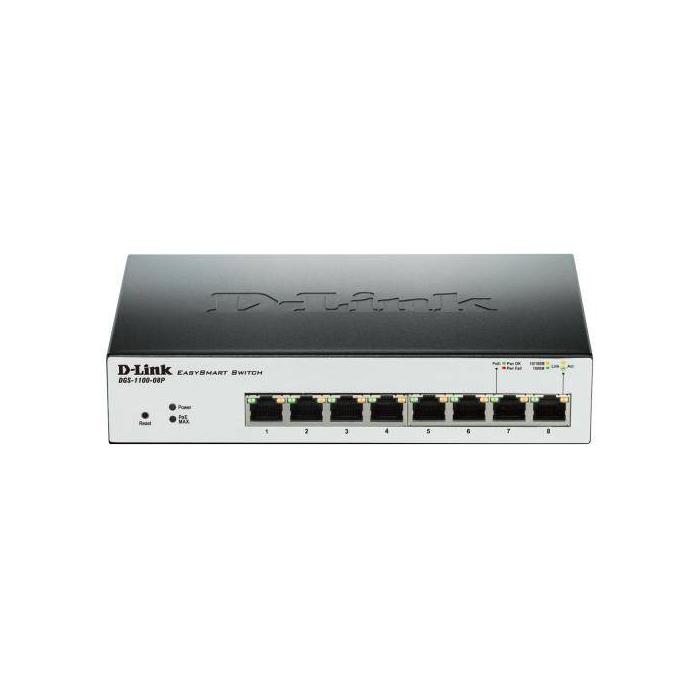

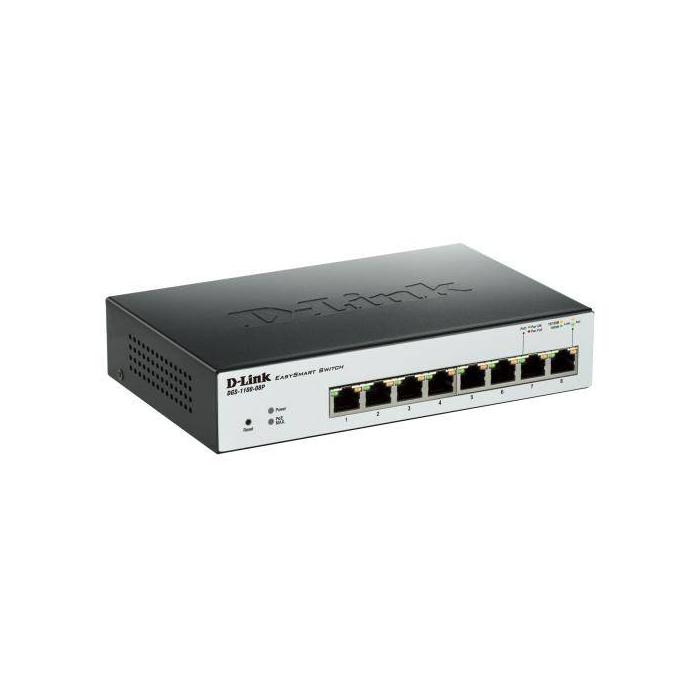

The D-Link DGS-1100-08P is a black managed L2 Gigabit Ethernet (10/100/1000) switch with 8 basic RJ-45 Ethernet switching ports and Power over Ethernet (PoE). It offers a switching capacity of 16 Gbit/s and a forwarding performance of 11.9 Mpps, with a MAC address table of 8000 entries and jumbo frames of 9216. In network management it supports VLAN support, with Voice VLAN, Tagged VLAN and Port-based VLAN functions, and features DHCP client. Its dimensions are 190 x 28 x 120 mm (width x height x depth) and its weight is 710 g. Power is supplied via a DC input jack, with an AC input voltage of 100 - 240 V and an AC input frequency of 50 - 60 Hz. It includes 2 MB of Flash memory, a reset button and complies with the IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u and IEEE 802.3x network standards.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

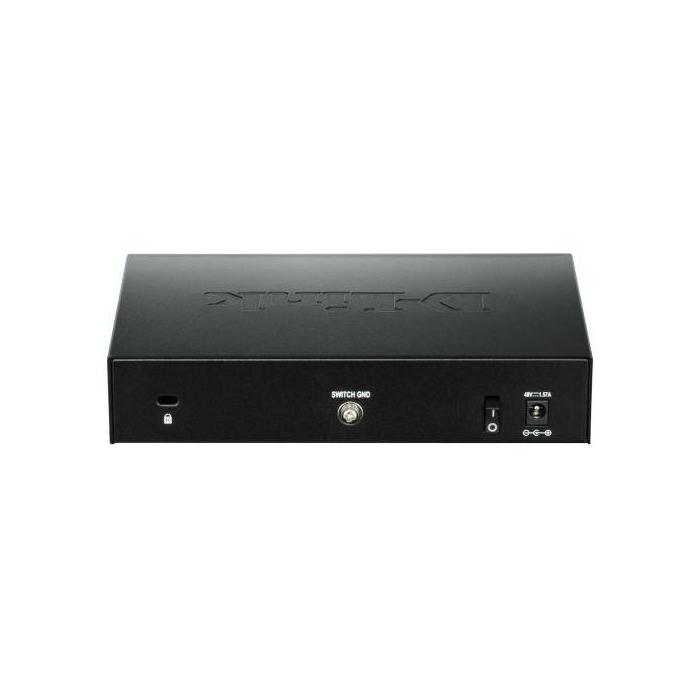

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- VLAN support: Yes
- Virtual LAN features: Voice VLAN, Tagged VLAN, Port-based VLAN
Data transmission
- Switching capacity: 16 Gbit/s
- Throughput: 11.9 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- DHCP features: DHCP client
Design
- Rack mounting: No
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
- Safety: UL/cUL, CE LVD
Performance
- Flash memory: 2 MB
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 190 mm
- Depth: 120 mm
- Height: 28 mm
- Weight: 710 g
Packaging data
- Package width: 180 mm
- Package depth: 210 mm
- Package height: 74 mm
- Package weight: 1.09 kg
Technical details
- Shipping (inner) case height: 38.8 cm
- Shipping (inner) case width: 39.7 cm
- Shipping (inner) case length: 44.6 cm
- Shipping (inner) case net weight: 25.1 kg
- Products per shipping (inner) case: 20 pc(s)
- Pallet gross weight (air): 491.5 kg
- Master (outer) cases per pallet (air): 18 pc(s)
- Products per pallet (air): 360 pc(s)
- Pallet gross length: 110 cm
- Pallet gross width: 120 cm
- Pallet height (air): 129.9 cm
- Pallet gross weight (sea): 806.6 kg
- Master (outer) cases per pallet (sea): 30 pc(s)
- Products per pallet (sea): 600 pc(s)
- Pallet height (sea): 2.08 m
- Shipping (inner) case gross weight: 26.2 kg
Certificates
- Certification: • FCC Class A • CE Class A • VCCI Class A
Logistics data
- Harmonized System (HS) code: 85176990
