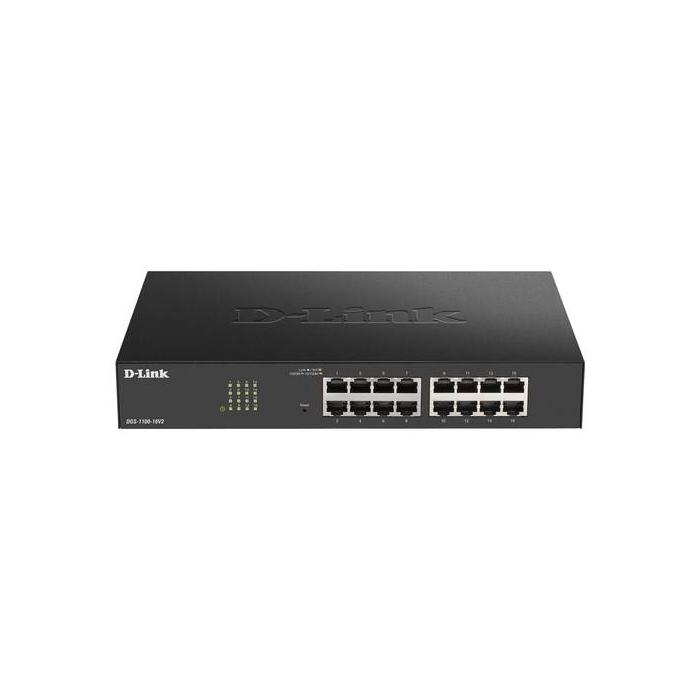

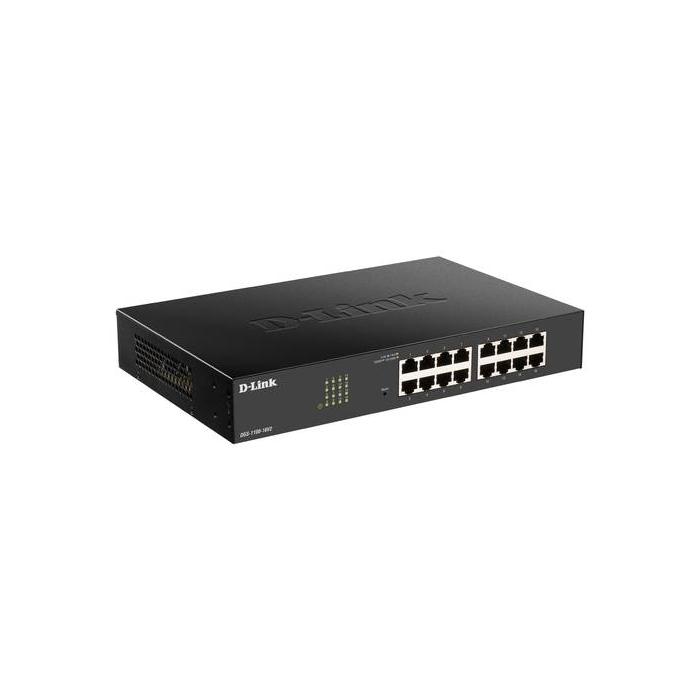

Name: D-Link 16-Port Gigabit Smart Managed Switch
Brand: D-LINK
Price: 138 EUR
Availability: InStock

D-Link 16-Port Gigabit Smart Managed Switch

138.00 €

114.05 € without VAT

Amount

Brand: D-LINK

SKU: 91102 PRC: 351646 EAN: 790069451768 PN: DGS-1100-16V2

Description

D-Link 16-Port Gigabit Smart Managed Switch, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802
10G support: No
Copper ethernet cabling technology: 10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Voice VLAN
Number of VLANs: 128

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.81 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Number of queues: 4
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client
IGMP snooping: Yes
Security algorithms: SNMP, SSL/TLS
Queue scheduling algorithms: SPQ, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Product colour: Black
LED indicators: Yes

Performance

Built-in processor: Yes
Processor frequency: 125 MHz
Memory type: DRAM
Flash memory: 16 MB
Noise level: 0 dB
Fanless: Yes
Mean time between failures (MTBF): 710519 h

Power

AC input voltage: 100 - 240 V
Power consumption (max): 10.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m
Heat dissipation: 34.46 BTU/h

Weight & dimensions

Width: 280 mm
Depth: 180 mm
Height: 44 mm
Weight: 1.27 kg

Certificates

Certification: EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC

Logistics data

Harmonized System (HS) code: 85176990
