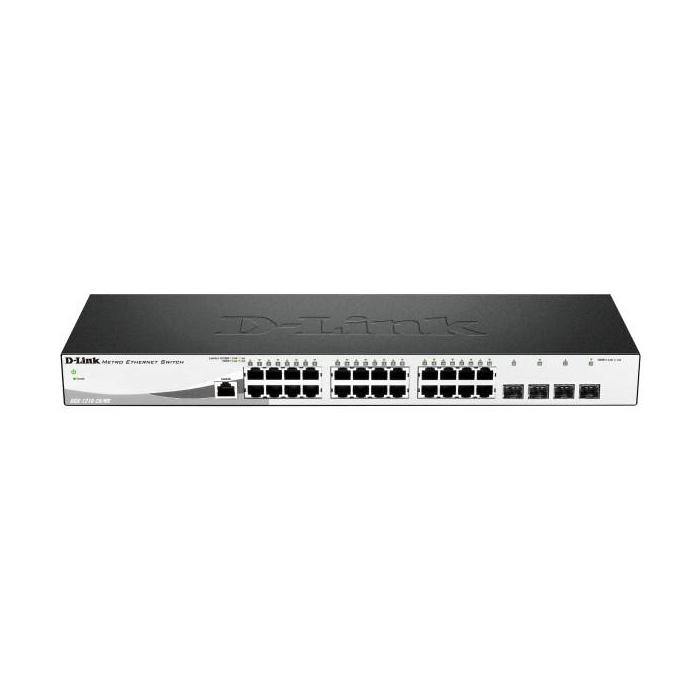

Name: D-Link DGS-1210-28/ME Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Brand: D-LINK
Availability: OutOfStock

D-Link DGS-1210-28/ME Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Not avaliable

D-Link DGS-1210-28/ME Managed L2 Gigabit Ethernet (10/100/1000) 1U Black. More info

Amount

Brand: D-LINK

SKU: 81380 PRC: 238478 EAN: 790069402371 PN: DGS-1210-28/ME

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
System event log: Yes
MIB support: RFC 1213, RFC 1493, RFC 1907, RFC 1757, RFC 2819, RFC 2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674,4363, RFC 2233, 2863, RFC 2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Fiber optic connector: SFP
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3a
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN, Port-based VLAN

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 56 Gbit/s
Throughput: 41.7 Mpps
MAC address table: 16000 entries
Number of queues: 8

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSH
SSH/SSL support: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication

Multicast features

Multicast support: Yes
Number of multicast groups filtered: 256

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, Power, Speed
Safety: CE LVD, UL, CB
Electromagnetic compatibility: FCC A, CE A, VCCI

Performance

Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 32 MB
Noise level: 0 dB
Buffer size: 1.5 KB
Mean time between failures (MTBF): 388138 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 22.45 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 76.59 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 140 mm
Height: 44 mm

Packaging data

Package width: 250 mm
Package depth: 492 mm
Package height: 72 mm
Package weight: 3.33 kg

Technical details

Shipping (inner) case height: 29.2 cm
Shipping (inner) case width: 38.1 cm
Shipping (inner) case length: 51 cm
Shipping (inner) case net weight: 16.6 kg
Products per shipping (inner) case: 5 pc(s)
Pallet gross weight (air): 439.9 kg
Master (outer) cases per pallet (air): 24 pc(s)
Products per pallet (air): 120 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 130.3 cm
Pallet gross weight (sea): 650.6 kg
Master (outer) cases per pallet (sea): 36 pc(s)
Products per pallet (sea): 180 pc(s)
Pallet height (sea): 188.7 cm
Shipping (inner) case gross weight: 17.5 kg
