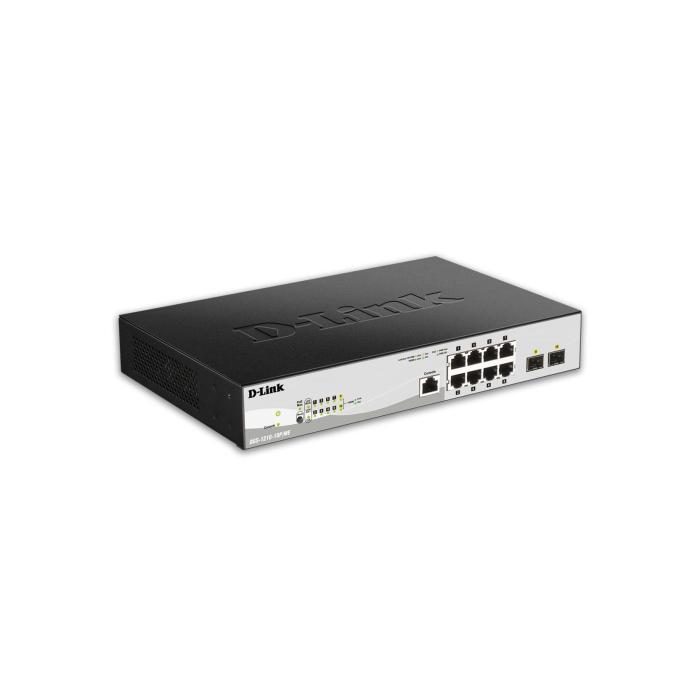

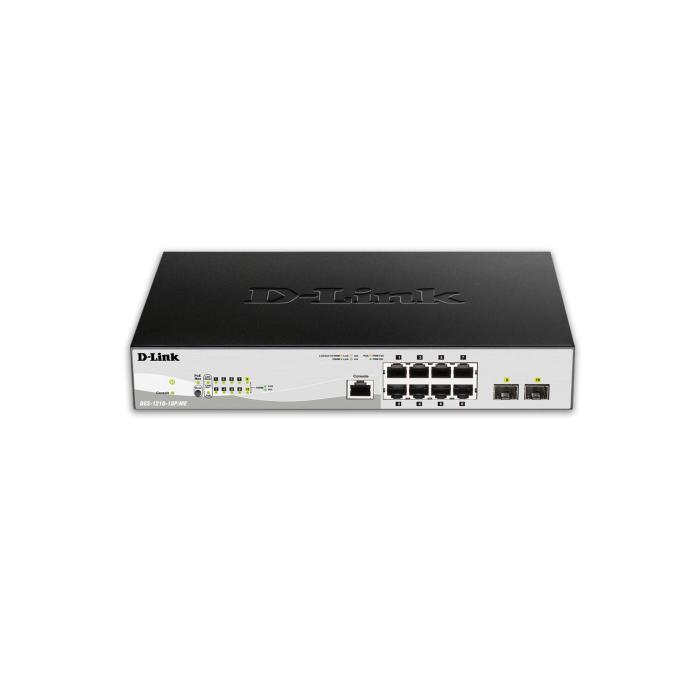

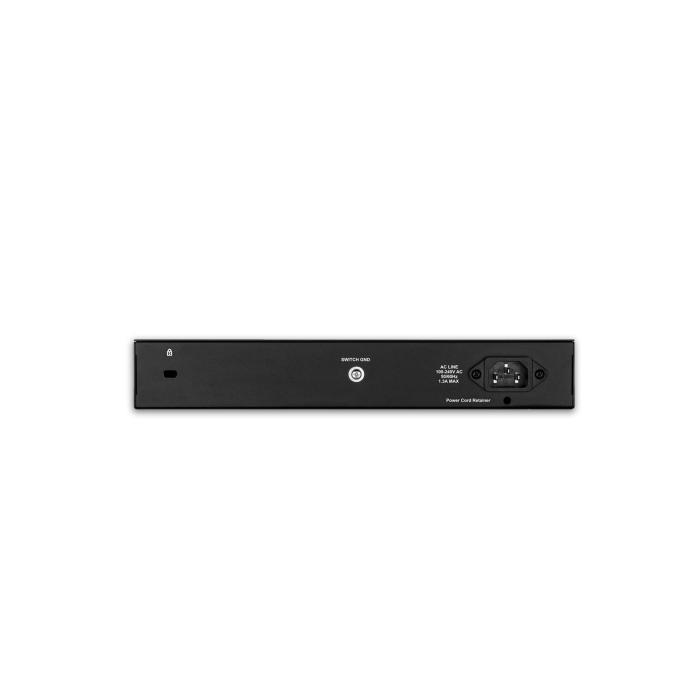

Name: D-Link DGS-1210-10P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: D-LINK
Price: 175.2 USD
Availability: InStock

D-Link DGS-1210-10P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

$175.20

$175.20 without VAT

Amount

Brand: D-LINK

SKU: 114749 PRC: 444189 EAN: 790069426629 PN: DGS-1210-10P/ME/E

Description

D-Link DGS-1210-10P, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

SFP module slots quantity: 2
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Packet buffer memory: 0.512 MB

Security

Access Control List (ACL): Yes
MAC address filtering: Yes

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes

Performance

Noise level: 0 dB
Mean time between failures (MTBF): 729258 h

Power

Power consumption (max): 80.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 2
Total Power over Ethernet (PoE) budget: 78 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 373.96 BTU/h

Weight & dimensions

Width: 280 mm
Depth: 126 mm
Height: 44 mm
Weight: 950 g

Packaging data

Package width: 288 mm
Package depth: 331 mm
Package height: 72 mm
Package weight: 2.21 kg

Certificates

Certification: EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
