Description

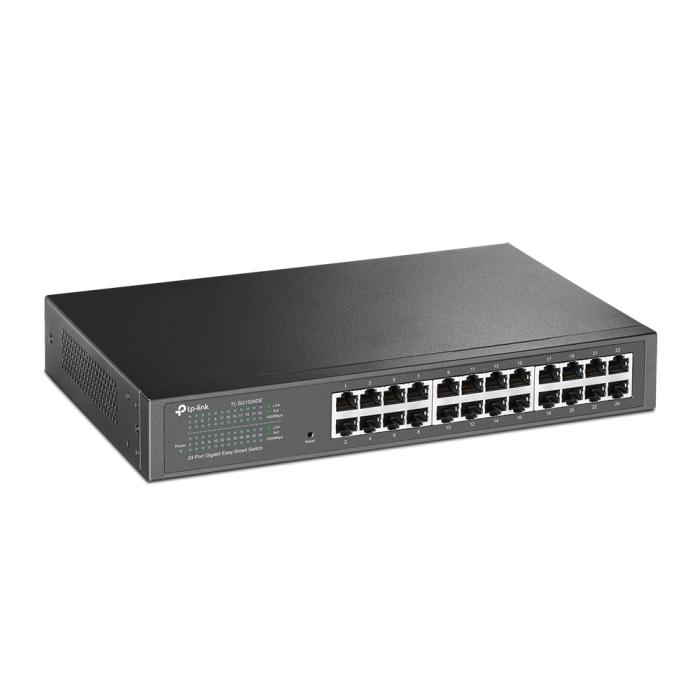

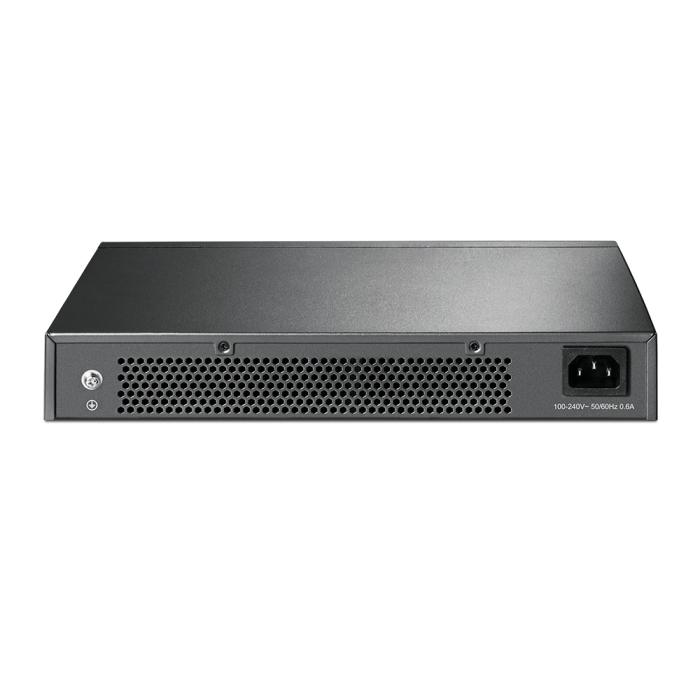

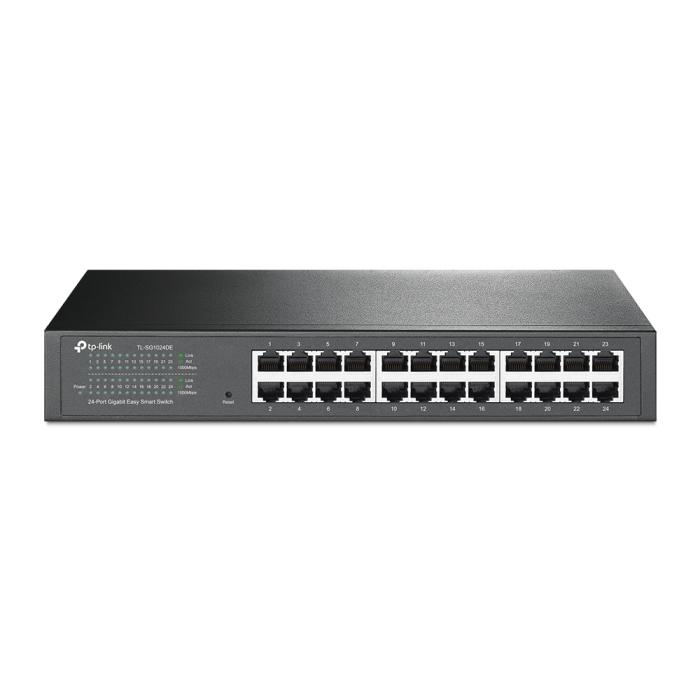

The TP-Link TL-SG1024DE managed switch is an L2 architecture device in 1U format and black, with dimensions of 294 x 44 x 180 mm. It incorporates 24 Gigabit Ethernet RJ-45 ports (10/100/1000) to connect computers, servers and network devices at high speed. Its management is carried out through the web browser, which facilitates the configuration of parameters such as VLANs, quality of service (QoS) or flow control. It supports link aggregation, port mirroring and rate limiting to organise traffic according to the needs of each installation. It also incorporates storm transmission control and auto-negotiation with Auto MDI/MDI-X on each port. It is compatible with the IEEE 802.1Q, 802.1p, 802.3, 802.3ab, 802.3u and 802.3x standards. The supported copper ethernet cabling technology covers 10BASE-T, 100BASE-TX and 1000BASE-T.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat5, Cat6
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Tagged VLAN
- Number of VLANs: 32
Data transmission
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8000 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 0.512 MB
Security
- IGMP snooping: Yes
- Loop protection: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
Performance
- Compatible operating systems: Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 14.86 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 114.37 BTU/h
Weight & dimensions
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 250 mm
- Package depth: 400 mm
- Package height: 80 mm
- Package weight: 2.02 kg
Certificates
- Certification: FCC, CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
